CyberPi: Catch the Fish Carnival Game II

Description

In this lesson students will use CyberPi as a controller to move the sprites. Students will also track operational data in a game, and make decisions concerning the results based on the records.

Objectives

• Identify the concept of Motion-Controlled Games and what features they have.

• Create a CyberPi controller with which they can change the movements of sprites.

• Track the operational data, and decide the result based on the data records.

• Program "Catch Fish Carnival Game II" in which players use CyberPi to interact with the game.

Prior Experience

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 12 - Catch Fish Carnival Game 2

For students:

• Proficiency in block-based coding

• Practical knowledge on how to change the sprites' costumes and movements, and use broadcasts.

• Already know the rules of Catch Fish Carnival Game, and completed the Catch Fish Carnival Game I project

Warm Up

Objective:

• Introduce students to the concept of motion-controlled games.

Procedures:

• Explain: Motion-controlled games provide a new way for players to interact with games. Players get more immersed in games by physically interacting with games. Besides, this type of games requires players to move their body, so people have a chance to relax and get some exercise.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Have 1 or 2 students try Catch Fish Carnival Game ll and ask the rest to observe while they're playing. Ask students to figure out what's new about the game compared to Catch Fish Carnival Game I.

Procedures:

• Introduce: Last time, we interacted with the Catch Fish Carnival Game via a keyboard. Today, we're going to upgrade the game.

• Pick 1 or 2 students to try the game.

• Start a class discussion: Compare the upgraded version with the previous one. Are there any differences?

• Summarize: The upgraded version adopts a new control method which turns it into a motion-controlled game. Players interact with the game using the CyberPi. When the game is over, it gives you a star ranking and scores based on your success rate. A higher success rate can earn you a higher ranking and more points.

• Work with students to analyze what features Catch Fish Carnival Game II should have.

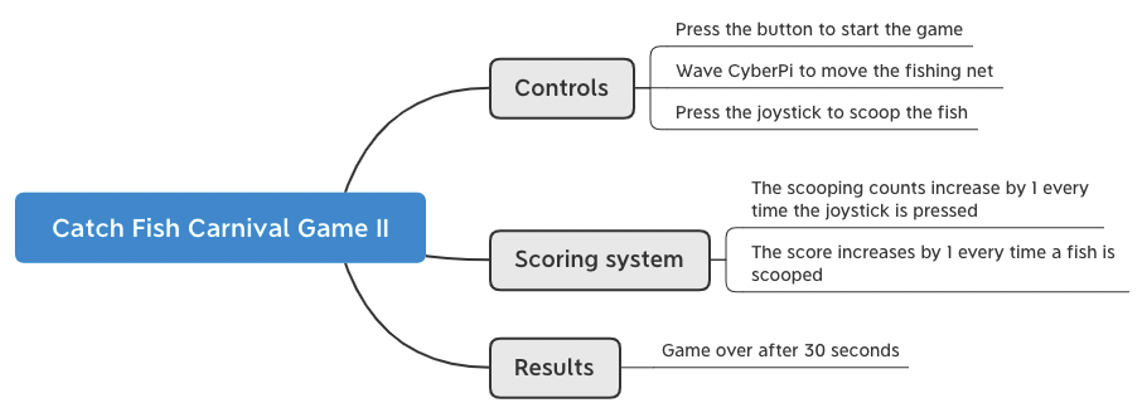

• Work with students to draw a mind map.

Try It!

Objective:

• Give students freedom to explore further so that they can enhance their programming skills.

Procedures:

• Ask students to open the program file they previously created. If any of the students didn’t complete the program the previous lesson, send them yours.

• Add the device CyberPi. Connect CyberPi to mBlock, and switch to Live mode.

Press the button to start the game:

• Make sure the data is cleared before the game starts.

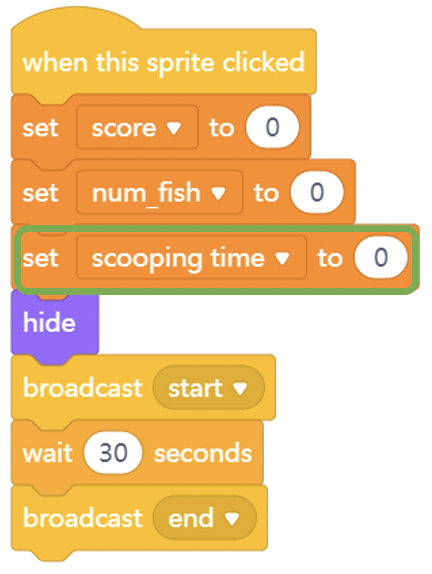

• The game decides the result based on the player's success rate. Create a variable to track the scooping times:

NOTE:

• Add the coding block to the previous script that's written to program the Start button to refresh data.

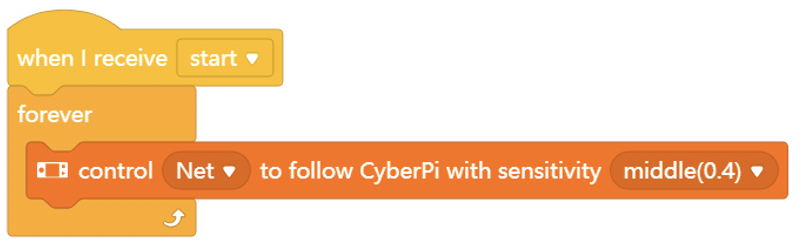

Wave CyberPi to move the fishing net:

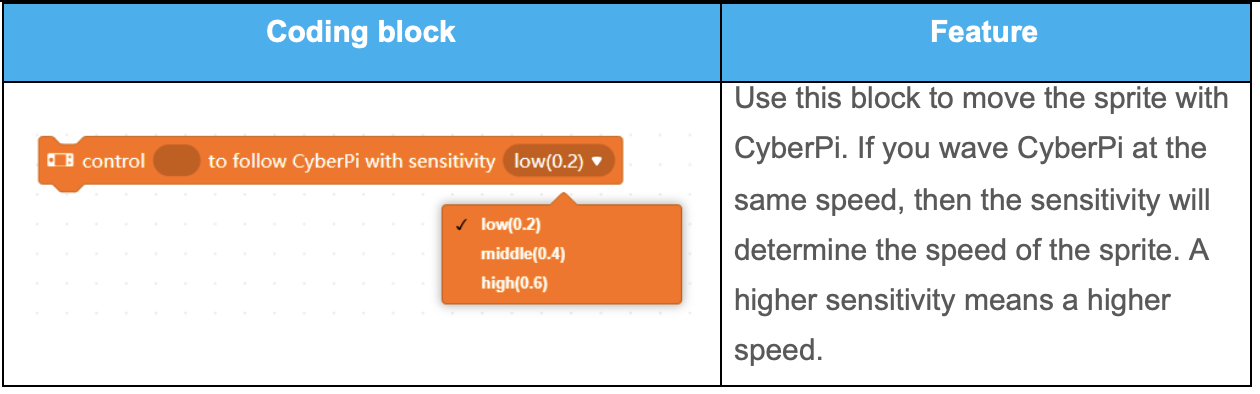

• Introduce the motion-sensing block needed to turn CyberPi into a controller:

Use CyberPi to move the fishing net:

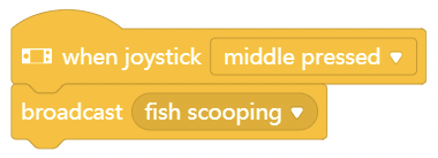

• Press the joystick to scoop the fish.

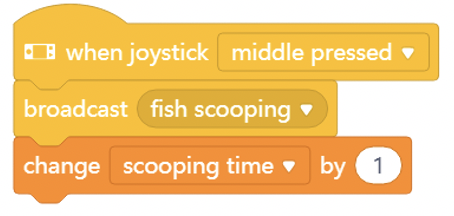

• When the joystick is pressed, the scooping count is increased by 1.

• When the fish is successfully scooped, the score goes up by 1: The scoring system is the same with Catch Fish Carnival Game I so, the script for this part doesn’t need modification.

• Game is over when countdown stops

Game over interface:

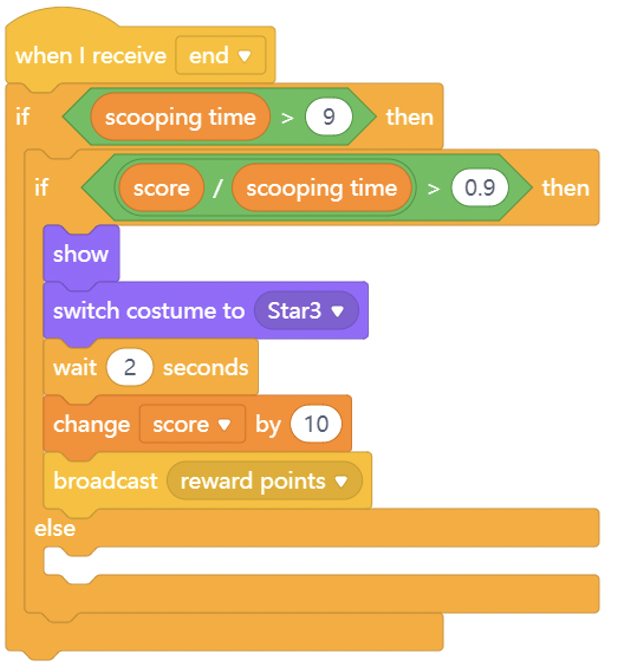

• Ranking: The game uses a star rating system and reward points to measure the player's performance based on the success rate. To raise the threshold, the player will be rated on a scale of stars only when the scooping count exceeds 9.

• Success rate = number of fish scooped (score) / scooping count

NOTE:

1. The example above is the script for a 3-star rating.

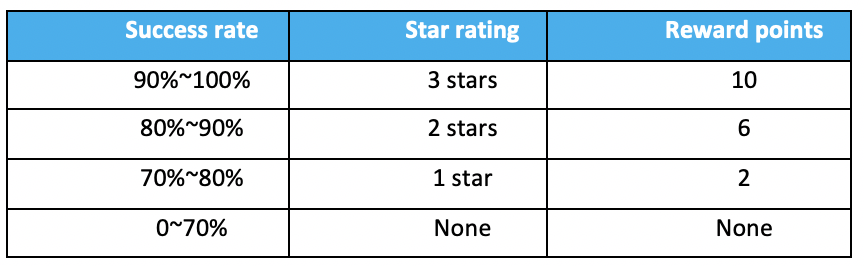

2. Refer to the following table to complete the programs for the whole star rating system:

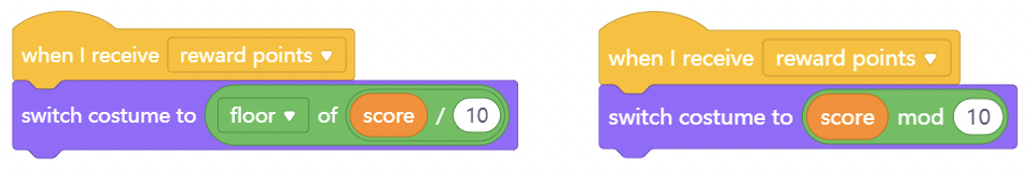

Display the final score:

• Add coding blocks to display the final score

• Have students test their program and consider any other effects they could add to the game.

• Program a progress bar to display the time left during the game

NOTE:

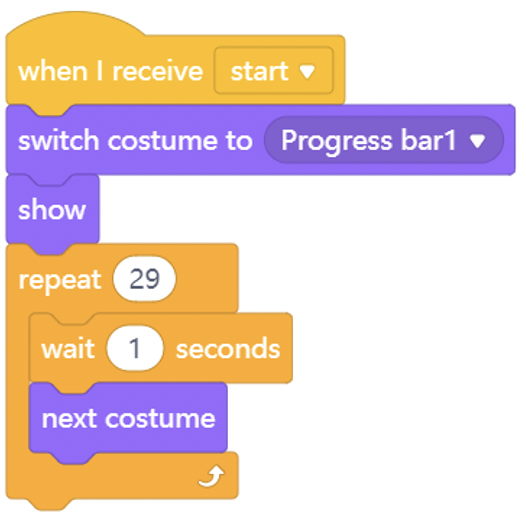

• The sprite Progress Bar has 30 costumes, so program the sprite to switch to another costume ever second.

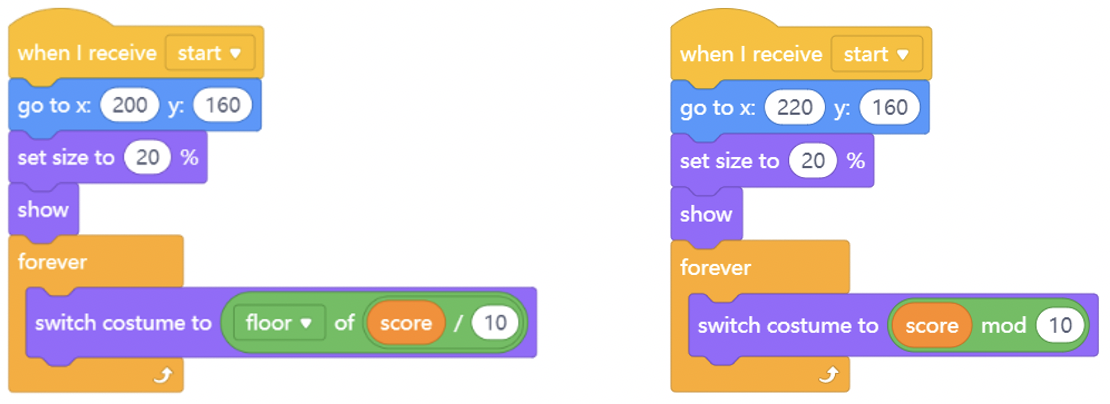

Display real-time scores:

NOTE:

1. During the game or when the game is over, the score is visually different. So have students set up the position and size properly.

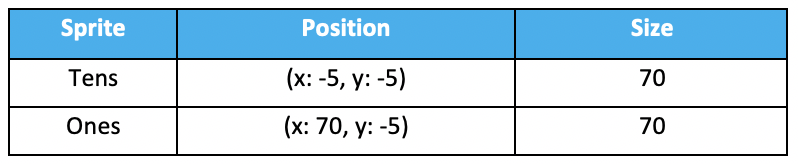

2. Refer to the table below to set up the position and size:

Extensions

• Have students try different control sensitivities and different controls for the fishes

• Have students try other students programs and provide constructive feedback

Wrap-Up & Quick Check

Objective:

• Have students test each other's programs and games. Let them compete to see who gets the highest score and wins.

Procedures:

• Have students invite their classmate or student partner to try their game and compete to see who gets the highest score and wins

• Invite 1-3 students to share their experiences and come up with pros and cons.

Example Program
