CyberPi: Colour Hunter

Description

In this lesson students will understand the basic game design principles and analyze the mechanics of a game. Students will use mind maps to visualize features the game should have and program the game based on their mind map.

Objectives

• Describe basic game design principles and explain the mechanics of a game.

• Use mind maps to analyze what features the game Colour Hunter should have.

• Use variables to make the game.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 9 - Colour Hunter

For students:

• Proficiency in block-based coding

• Prior knowledge of CyperPi's major features

• Basic knowledge on sensors and able to apply variables

Warm Up

Objective:

• Have students figure out what stages a game often has, and let them categorize these stages to engage them in the game design process.

Procedures:

• Ask students to think about how many phases most games often have.

• Summarize the answers: Considering the gaming experience, we could divide a game into 3 phases: Opening, Middlegame, Endgame.

• Say: Suppose you are a game designer, so your responsibility is to design an engaging game. You have many things to consider when you're designing a game:

1. Task: What's the task that a player needs to complete?

2. Controls: How does a player interact with the game?

3. Outcome: What outcome will the player get? How is this outcome reached?

• Use specific game examples for analysis.

• Ask: Pick a game that most people are familiar with. Analyze its tasks, controls and outcome.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

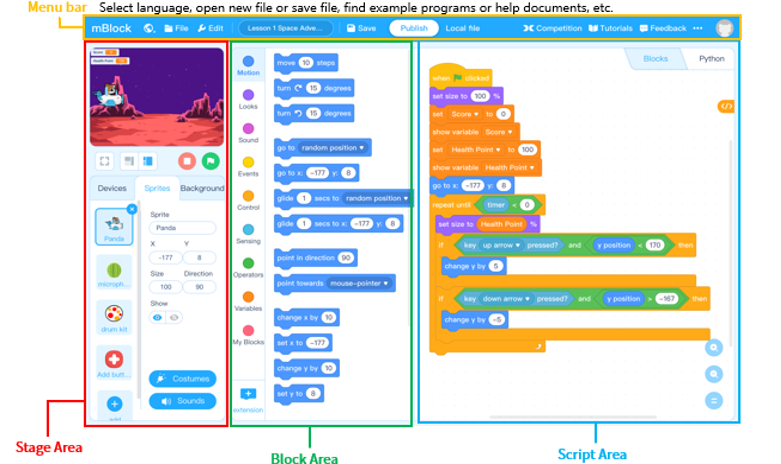

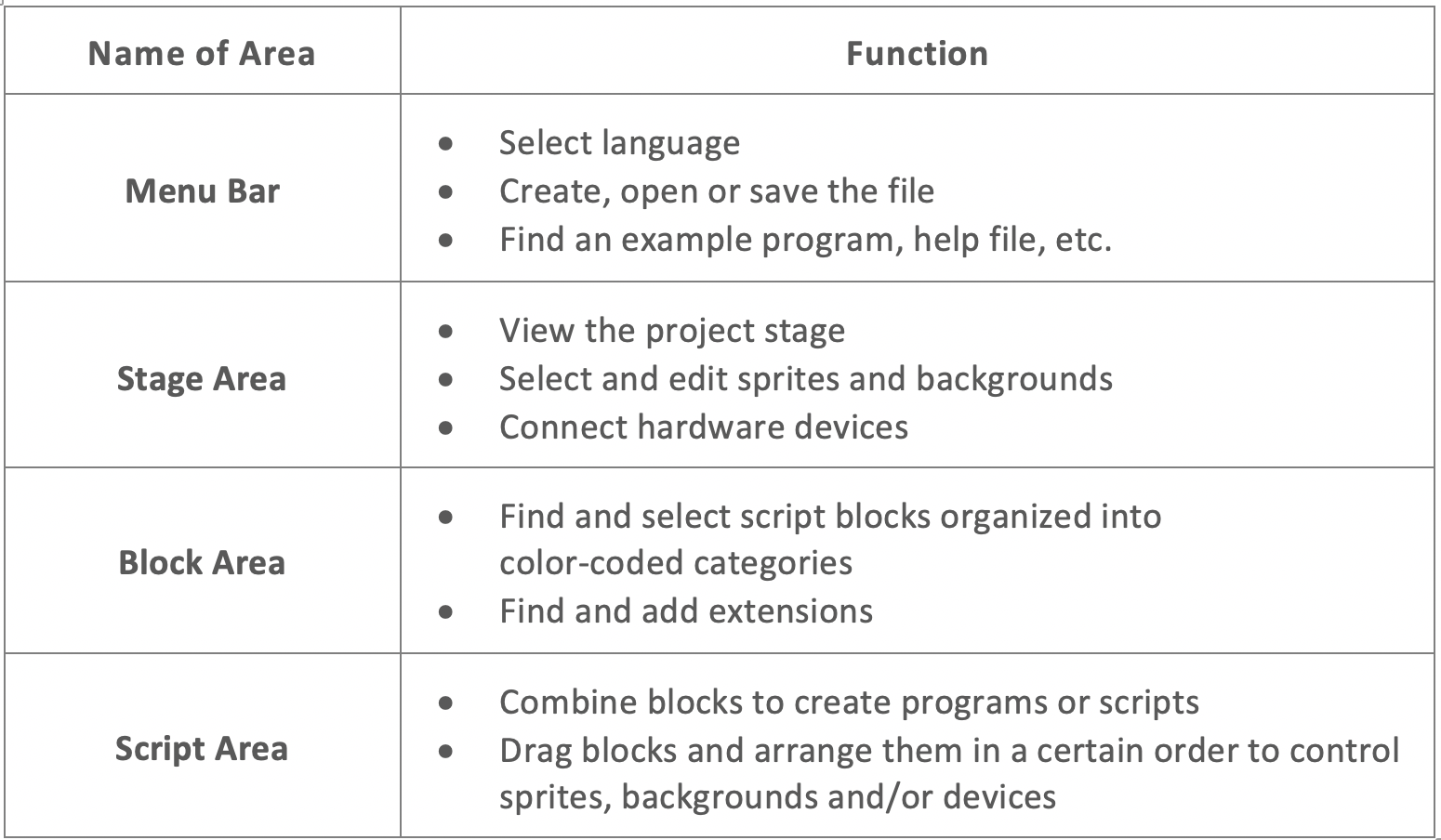

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

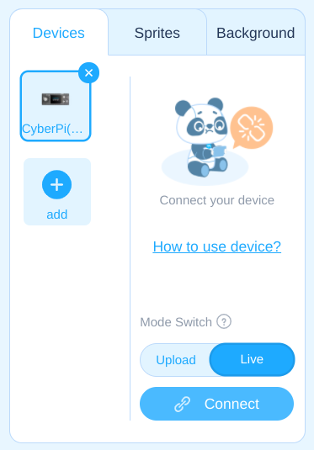

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

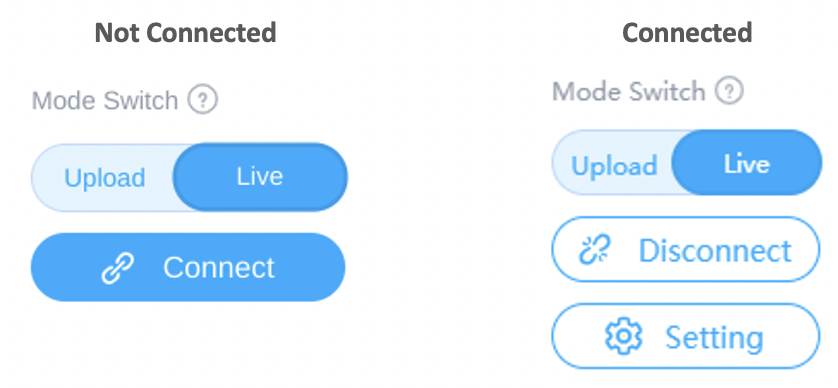

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Show students how the game works and encourage them to consider how to turn their ideas into reality. To help them develop their independent thinking skills.

Procedures:

• Invite students to try the Colors Hunter game.

• Ask: If you are a game designer, what do you think the task and control methods are? And what's the outcome?

• Task: Follow CyberPi's command to select a light colour accordingly.

• Control method: Use the joystick to select a color.

• Outcome: When the 30-second countdown stops, the game is over. There's no win or lose condition.

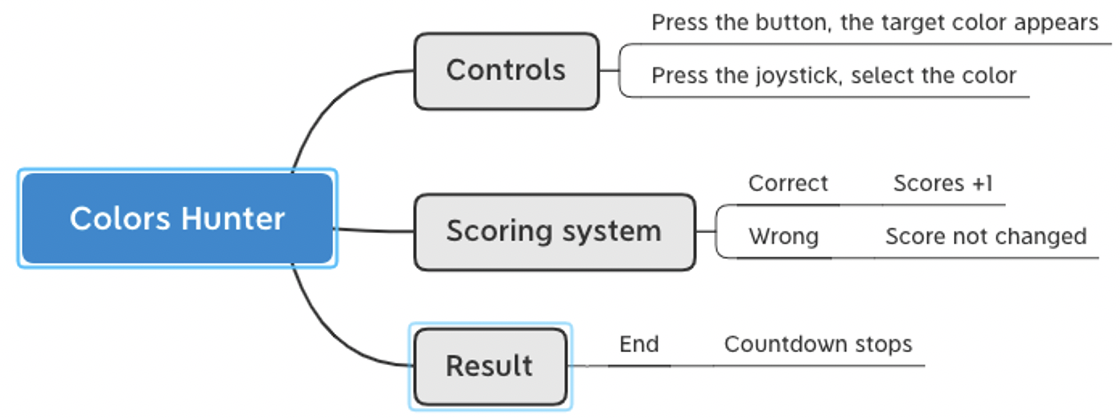

• Show students the mind map.

Try It!

Objective:

• Give students freedom to explore further so that they can enhance their programming skills.

Procedures:

• Connect CyberPi to mBlock.

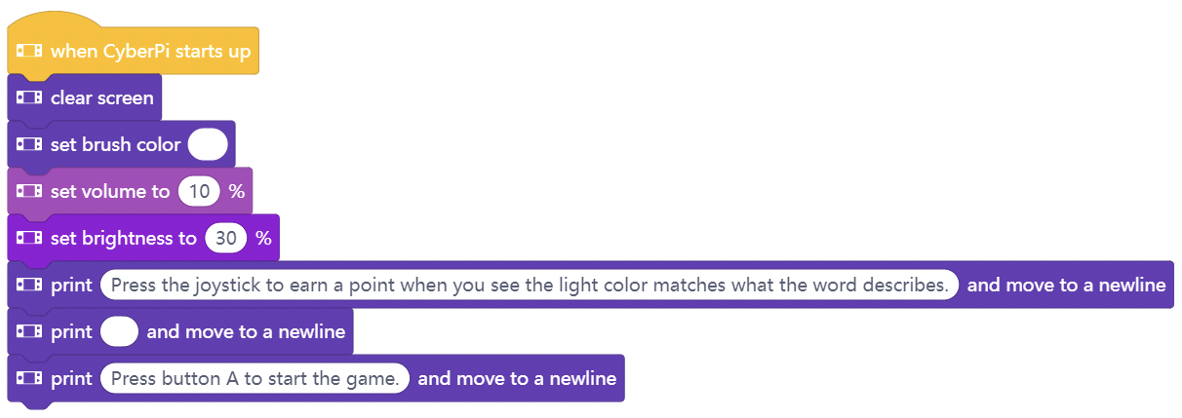

• Press the button to start the game:

Add a prompt to indicate the start of the game.

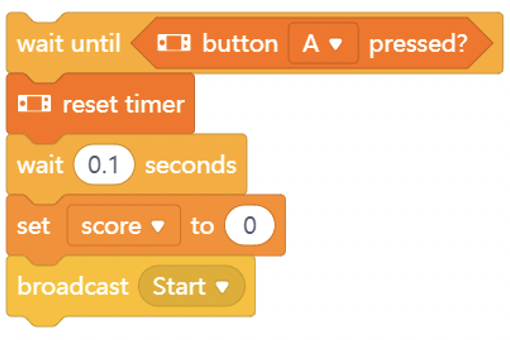

• Press the button, and the game starts:

NOTE:

1. The variable score is created to store the scores. Make sure the scores are cleared before the game begins.

2. The timer tracks the gaming time, and should be reset to zero at the very beginning of the game.

• The system randomly selects a target:

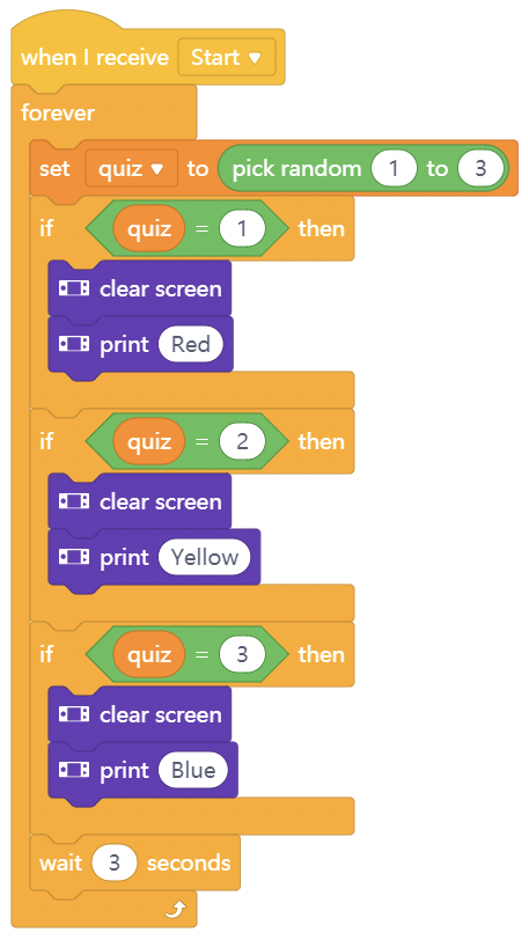

• CyberPi will randomly display one of the three words, red, yellow and blue, on its screen each single time.

• Use a variable target in the program to simulate a test in which a target colour is randomly given each time.

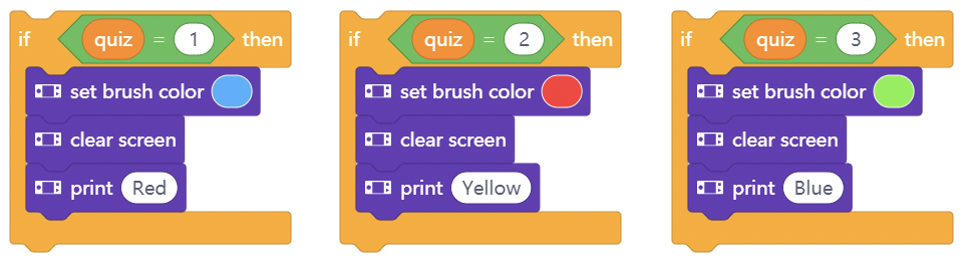

• For example, when target equals 1, the word red appears on the screen; when target equals 2, the word yellow appears on the screen; when target equals 3, the word blue appears on the screen.

NOTE:

1. Use the forever block to keep refreshing the proposed targets;

2. Change the value in the wait () secs to adjust the level of difficulty.

Set up changes:

• To make the game more challenging and engaging, it's better to add some changes.

• For example, program the texts to appear in random colors on the screen.

• Press the joystick to confirm the colour. After CyberPi gives a target colour, the player is expected to pinpoint the target among changing colours using the joystick.

Keep colours changing:

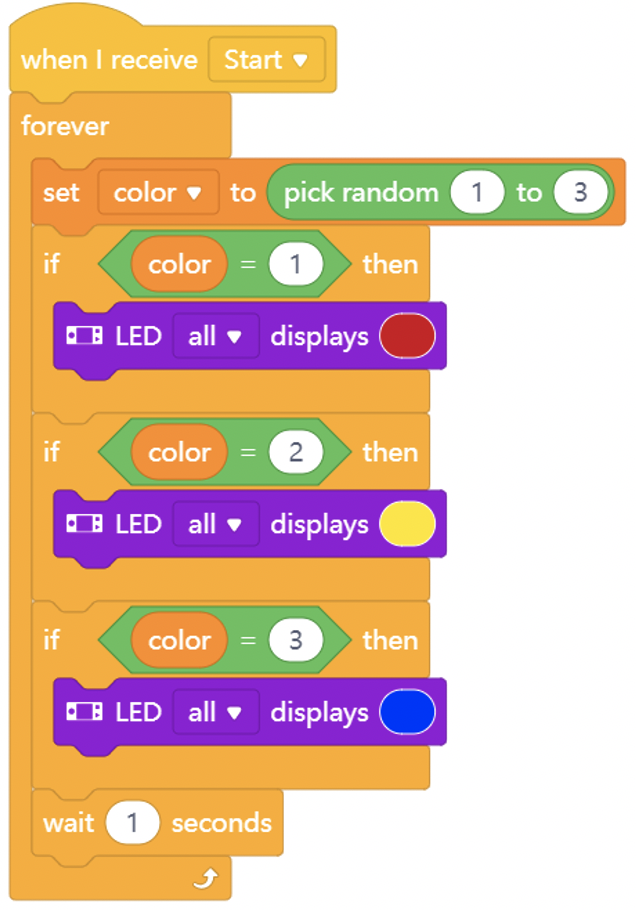

• Create a variable named LightColor to change the colours of the lights. The variable is used to decide whether the player's selection is correct as well.

NOTE:

• Use the block wait (1) sec to allow the player time to complete his or her selection. The player faces greater challenges when the interval time is shorter.

Press the joystick to confirm color:

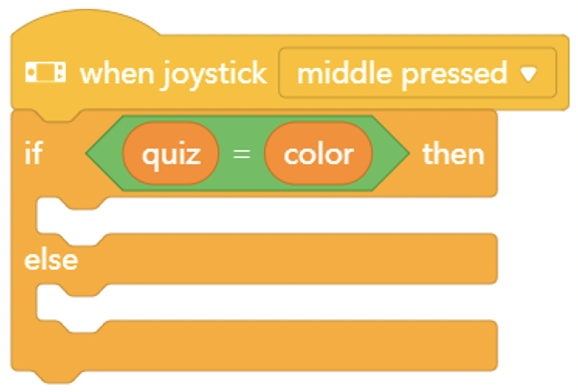

• Compare the target and the current light colour:

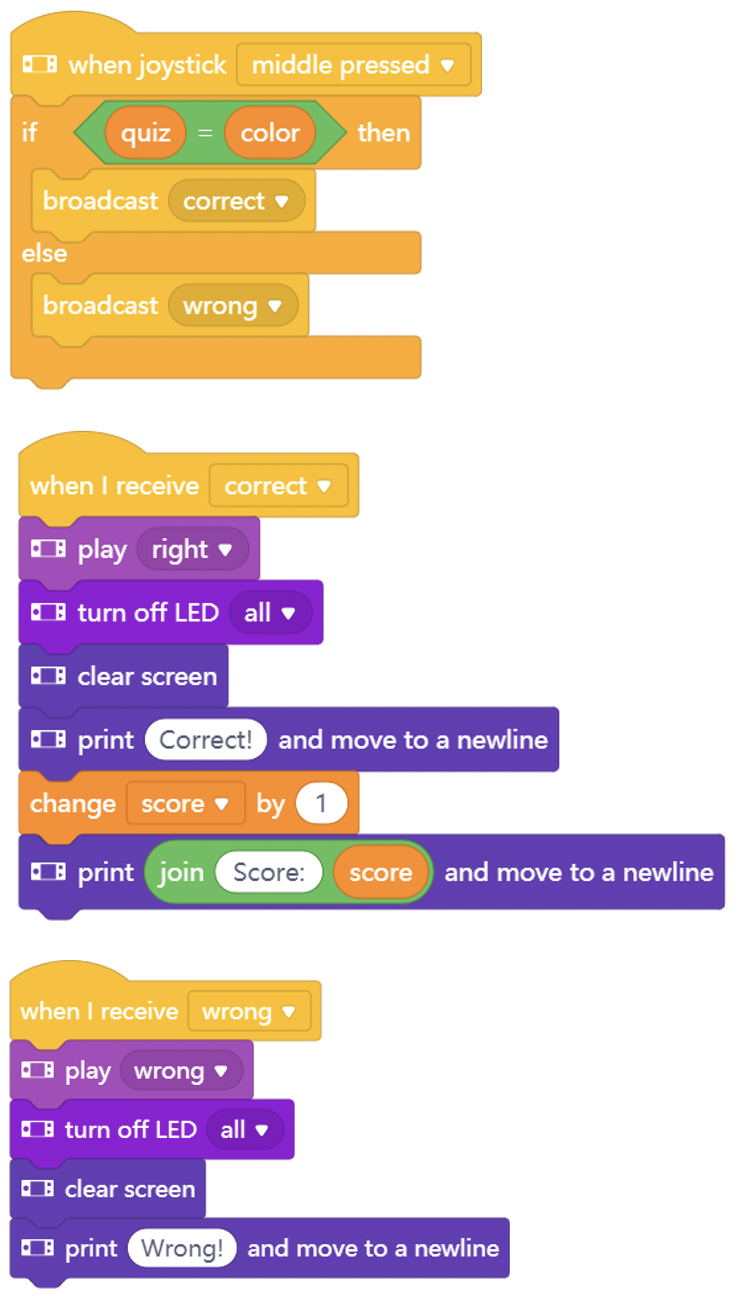

• Scoring system: Create a variable score to store the points that the player wins. The score increases by 1 when the player's selection matches the target.

NOTE:

• Use sounds and texts to let the player know whether he or she picks the correct colour.

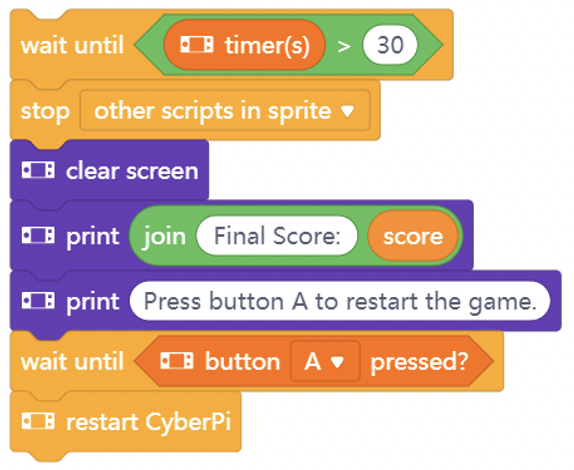

• Result: The countdown starts when the game begins. After 30 seconds, the game stops and shows the final score.

Extensions

• Have students graph the number of correct and wrong answers

• Have students create a HighScore variable that stores the highest scored received

Wrap-Up & Quick Check

Objective:

• Ask students to try the game they just created and have them continue to practice game design.

Procedures:

• Have 2 students compete to see who gets the highest scores

• Have students create a simple game based on the principles mentioned today: task, controls, and outcome.
