CyberPi: Colour Mixer

Description

In this lesson, students will be introduced to variables to create a CyberPi Colour Mixer. This program will use the joystick and buttons to control the R, G, B colour values of all of the on-board LEDs. Then, students will use conditional statements to ensure that the R, G, B values do not go out-of-range.

Objectives

• Use a variable to store a value.

• Change a variable based on user input.

• Write a program in mBlock that executes a program if a condition is met.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 7 – Color Mixer

Warm Up

Conditional Statements Game

1. Play a game similar to Simon Says with your class to demonstrate conditional statements. With your students, read each statement below and have the students follow the command. (Feel free to write your own commands for your students.)

• "IF" your name has the letter “S” in it, "THEN" raise your hand.

• "IF" you have a pet cat, "THEN" clap your hands.

• "IF" you play a sport, "THEN" stomp your feet.

• "IF" you are wearing socks, "THEN" touch your feet.

• "IF" your favourite ice cream is chocolate, "THEN" say “Yum.”

2. Share with students that these commands are examples of conditional statements. In programming, conditional statements are used to perform specific actions if a condition is true.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Storing Data with a Variable

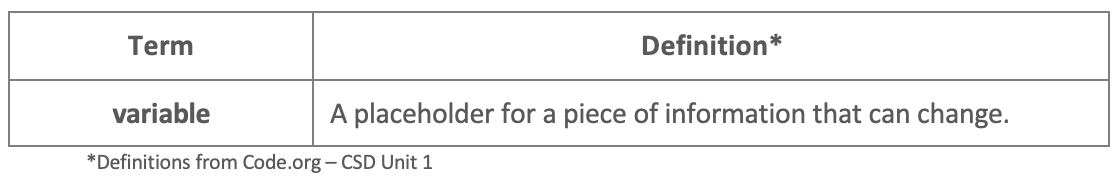

1. Discuss the following definition with the students:

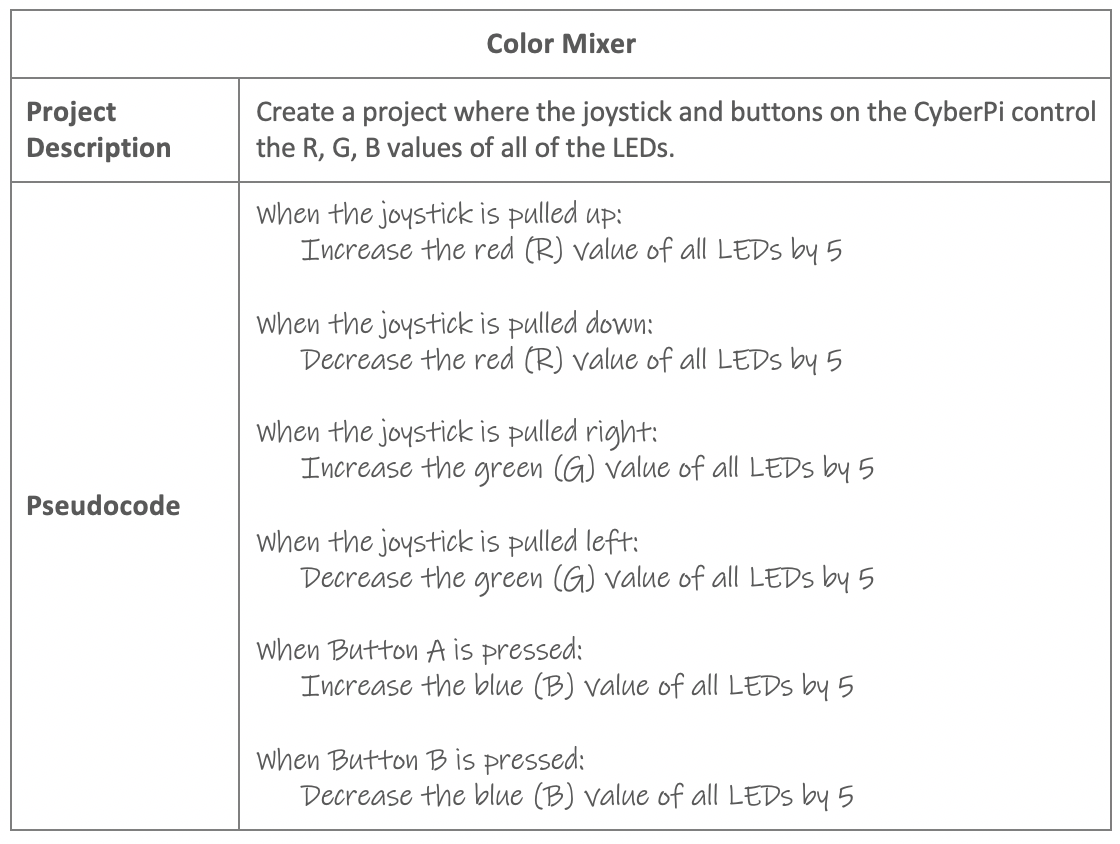

2. Review the following challenge and pseudocode with the students:

3. To program this project, a variable must be used to store the value of each of the LEDs. The variables will start at zero (0) when the CyberPi starts and will be adjusted using the joystick or buttons.

4. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

5. Go to the Variables section of the Block Area. Click the Make a Variable button.

6. Name the new variable redValue and leave For all sprites selected.

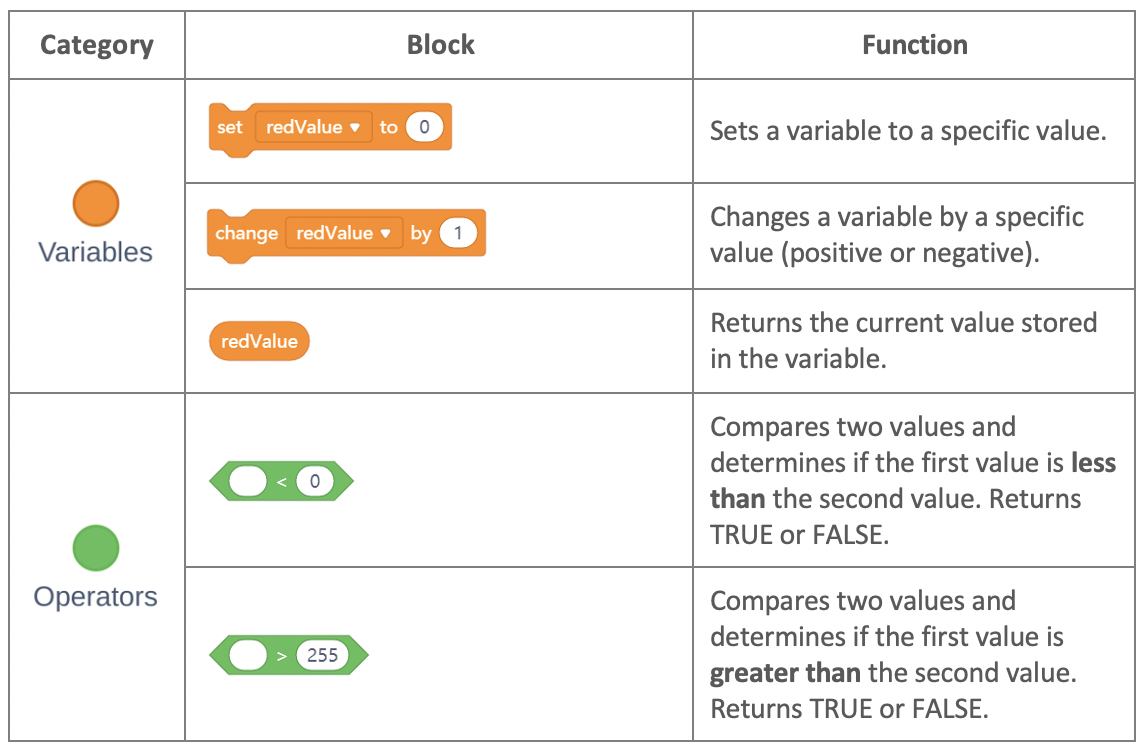

7. Introduce students to the following new blocks which are now available in the Variables section:

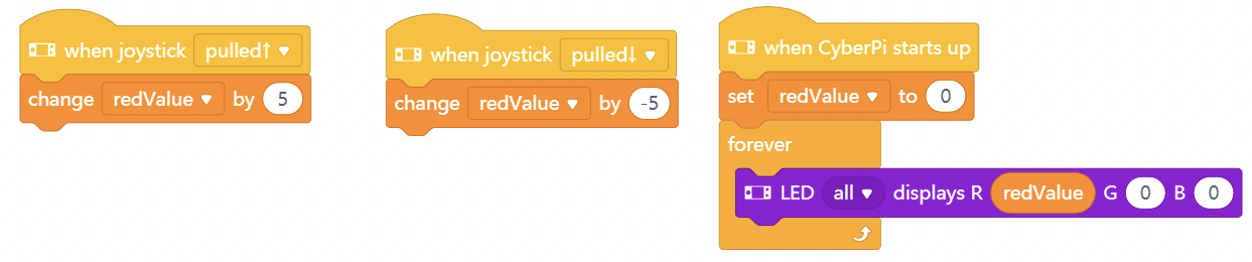

8. Instruct students to build the following scripts and test the program to observe the joystick up/down controls increasing the red value of all of the LEDs:

Using a Conditional Statement

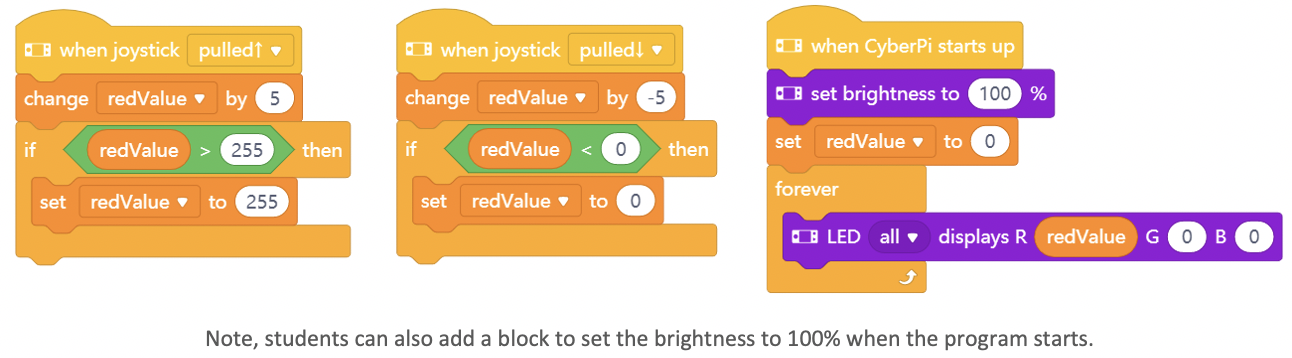

9. Remind students that the R, G, B values have a range of 0 to 255. With the program above, the redValue variable can be changed to a value that falls outside of that range. We can use conditional statements to control the minimum and maximum values. Instruct students to modify the code and add the following conditional statements to the program:

10. Explain to the students how the conditional statements do not allow the "redValue" to ever be greater than 255 or less than 0.

Try It

Completing the Program

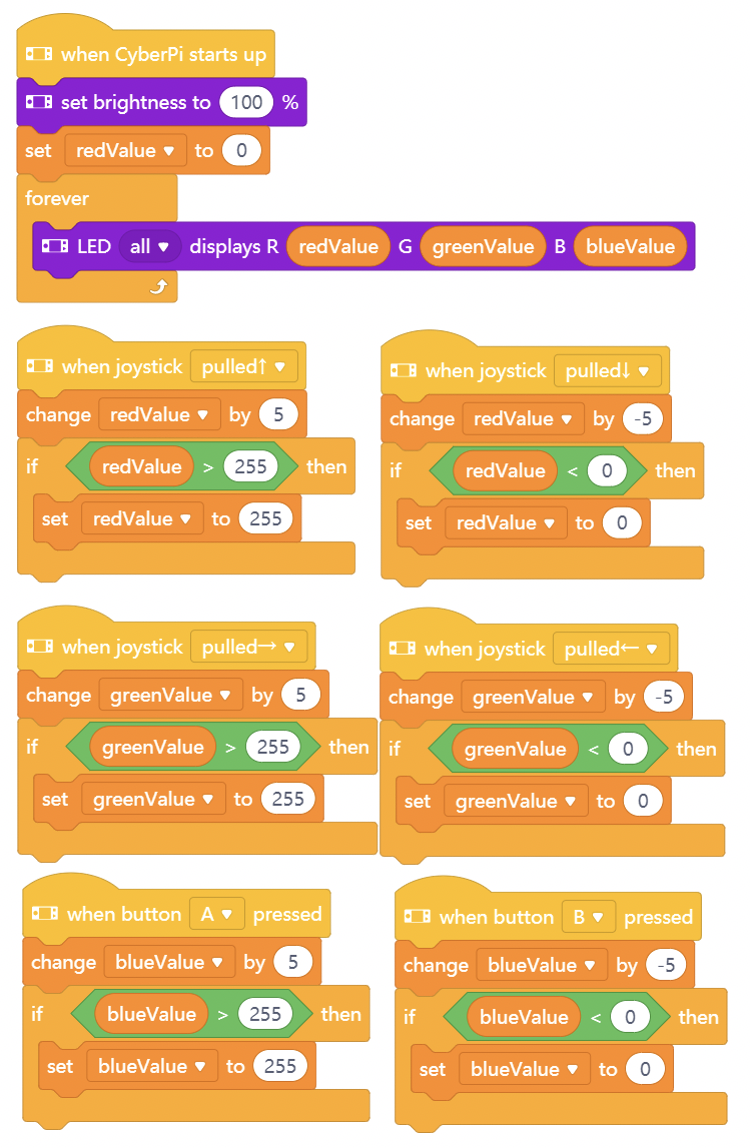

1. Instruct students to finish the program based on the pseudocode provided earlier in the lesson. The following is an example of a completed program:

2. Students may find it helpful to add the following script inside the forever loop to see the values of the variables on the CyberPi display:

Extension

• Have students add a title and instructions to the project.

• Have students create a variable for the LEDNumber and use the middle joystick button to control which LED is being changed.

Wrap-Up & Quick Check

Variable Review

Discuss with students how variables are used to store information in a variety of computing devices and applications. Discuss the following examples with students:

• Fitness trackers stores the number of steps.

• Automobiles (with a digital display) stores the number of miles driven.

• Mobile devices store the battery level and reports it as a percentage.

• Store shopping cards store the number of visits until you earn a reward.

• Video games store health, lives and scores.
