CyberPi: Dodge the Bird I

Description

In this lesson students will understand the role and importance of data in player character selection. Students will draw a mind map to analyze the basic game effects of Dodge the Bird. They will also complete the code using the mind map created.

Objectives

• Explain why and how player characters are created.

• Draw a mind map to analyze the essential features of Dodge the Bird.

• Use variables and create a prototype of Dodge the Bird.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 13 - Dodge the Bird 1

For students:

• Proficiency in block-based coding

• Knowledge of game design process and ability to design basic game mechanics

Warm Up

Objective:

• Introduce player character design and its importance in a game.

Procedures:

• Ask: Some games offer different playable characters for players to choose from. Have you ever played any such games?

• Encourage students to describe the games in detail. Guide them with questions like, "What’s the name of the game?" and "What kind of player characters are available to choose from?"

• Summarize: Quite a few games allow players to choose the character they want to control.

• Ask: As a player, what do you think about this feature? What if you didn't have the option to choose a character?

• Summarize: Providing different characters for players to choose from enriches a game and the player experience but also sustains players' motivation and interest in playing the game.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Describe what the game is like to students and encourage them to brainstorm how to develop the game.

Procedures:

• Invite volunteers to try Dodge the Bird. Have them pay attention to the player character selection page.

• Ask: How did the player choose a character in Dodge the Bird? What’s the logic behind the player character selection system? (Hint: if…then…) And describe how to play the game.

• Summarize: In the game, the player uses CyberPi's joystick to select a character. Push the joystick to the right to select Witch and push the joystick to the left to select Jinnee. Let's take a look at the gameplay of Dodge the Bird:

• Work with students to analyze some features of Dodge the Bird.

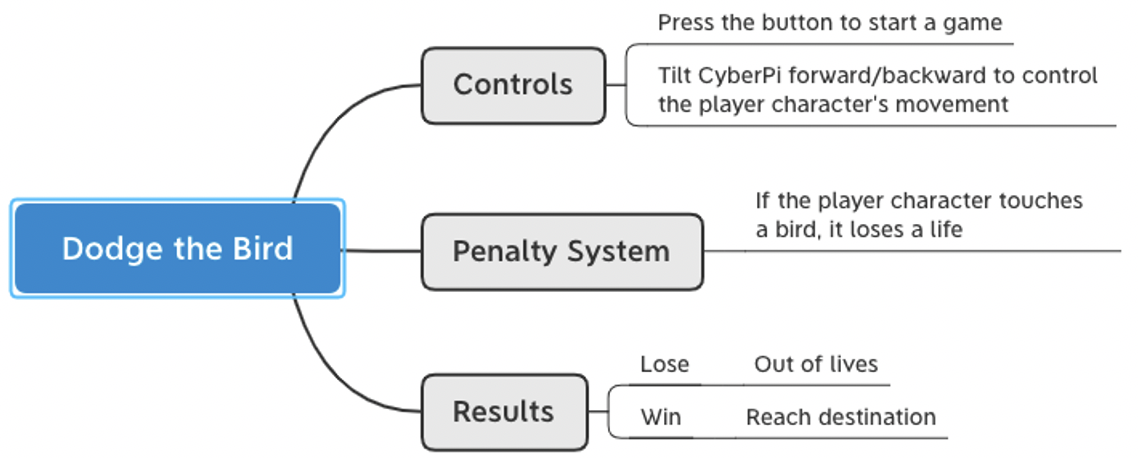

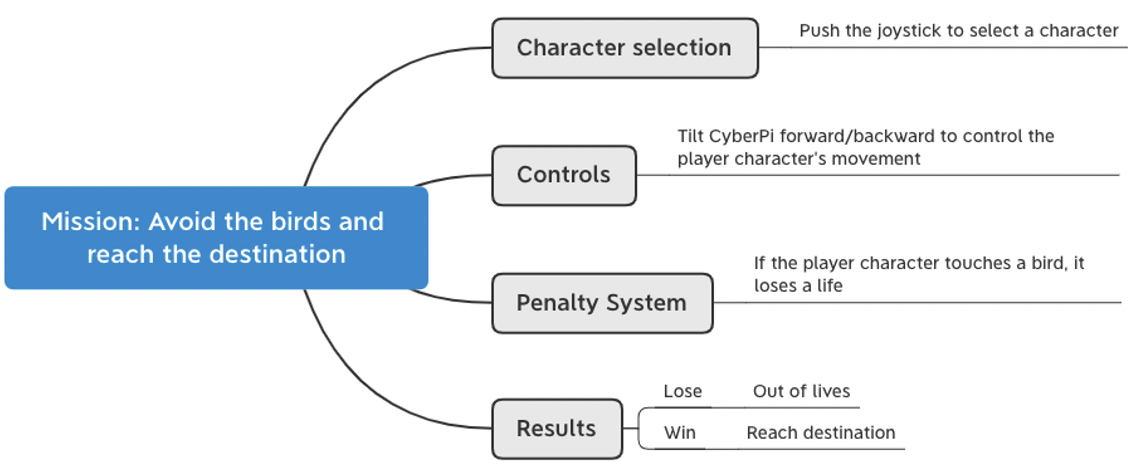

• Instruct students to draw a mind map.

Try It!

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

Procedures:

• Connect CyberPi to mBlock and select the Live mode.

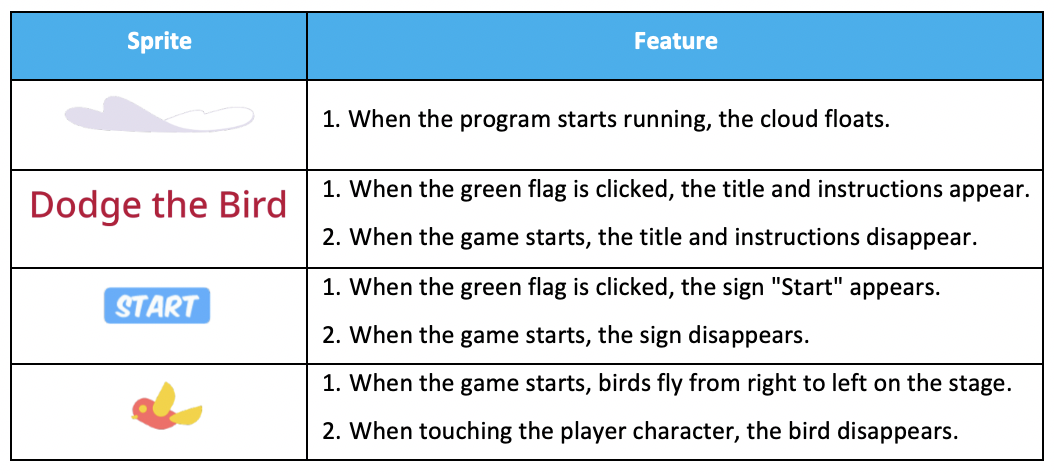

• Open the demo program file and go through it. The file includes preset programs for:

• Click the green flag to enter the startup interface.

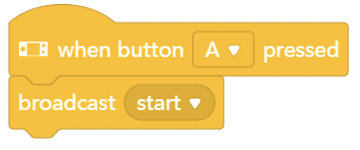

• The startup interface has been preset with the following script:

Define the initial status of a player character:

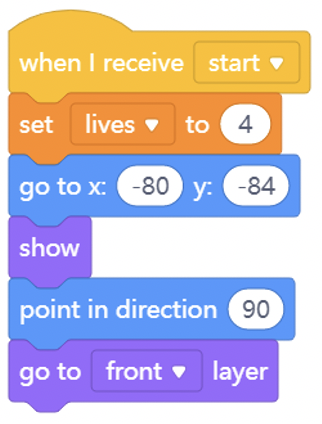

• Set the initial status of player characters, including location and direction.

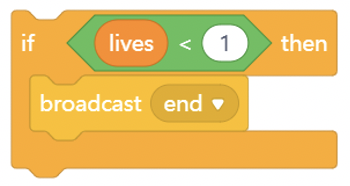

• Create a variable "lives" and set it to 4. This setting gives a player character four lives. The variable will be later used in the script to determine whether a player loses the game.

Control characters:

• Characters move up/down: Tilt CyberPi to make a player character move up or down.

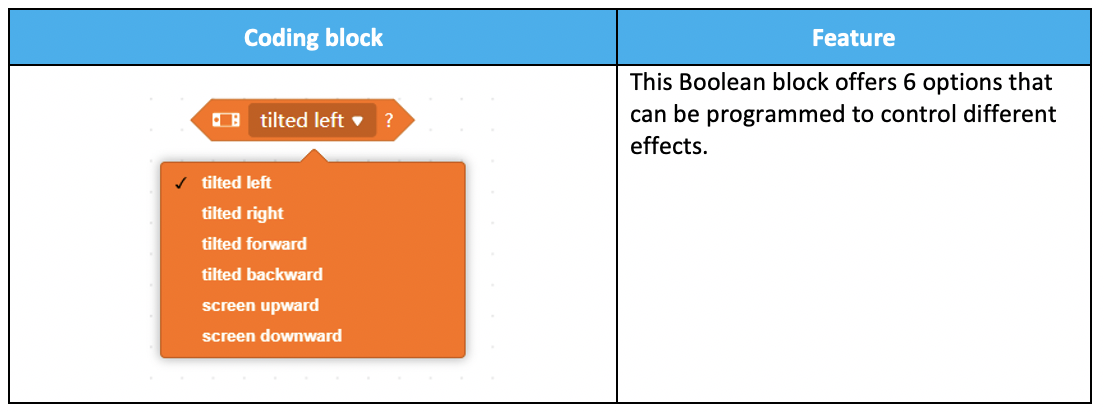

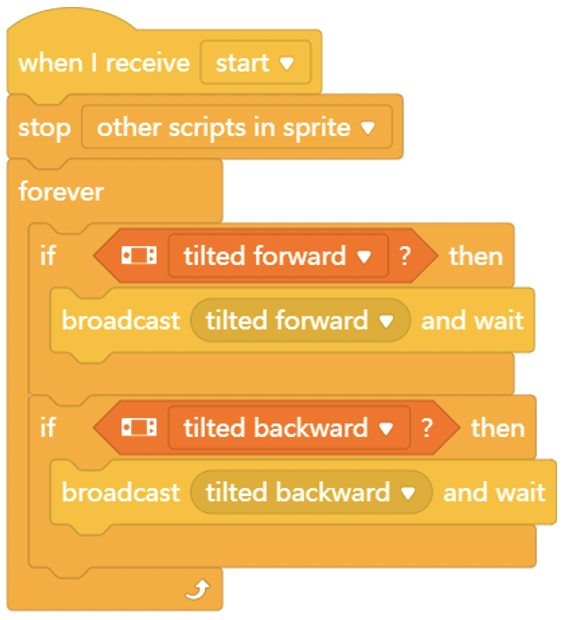

• Use the Motion Sensing block in the table to detect which direction CyberPi is tilted to:

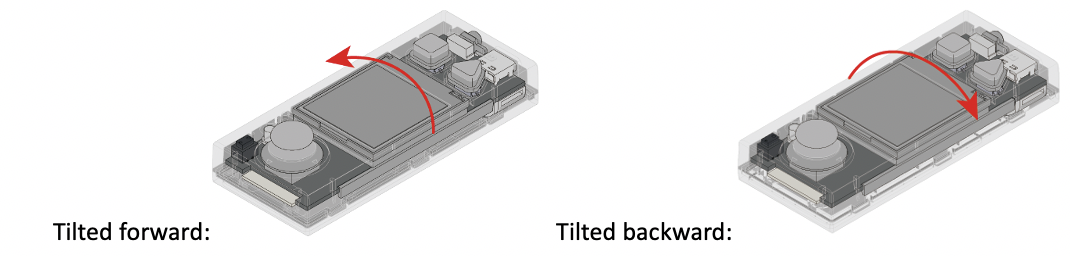

• CyberPi tilted forward/backward:

NOTE:

• Wrap the tilted forward? and tilted backward? blocks into the same forever block.

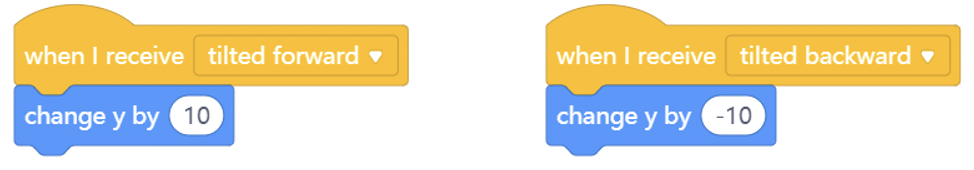

Sprite movement:

Prevent sprites from moving out of the stage:

• If a sprite keeps going up or down, it will disappear from the stage.

• To avoid a sprite disappearing, add this sensing block to the script:

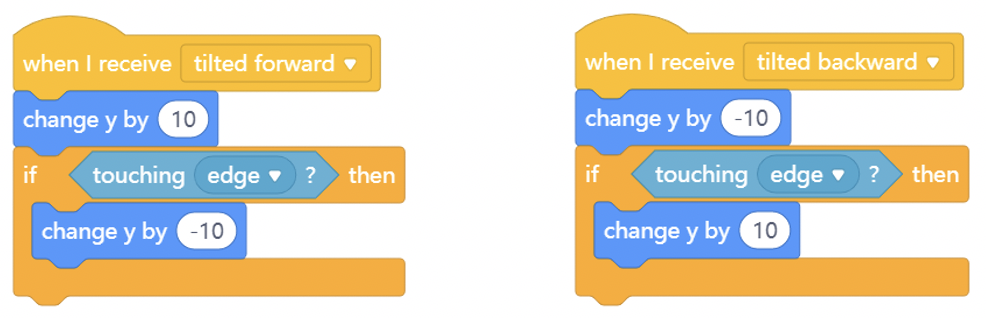

• Write these scripts:

• Both scripts involve two change y by () blocks. Take the script on the left as an example. When receiving Up, the sprite's y-coordinate changes by 10. To prevent the sprite from disappearing, type -10 in the second change y by () block. The second change y by ( ) block will offset the effect of the first one when the sprite touches the edge of the stage.

Set up the penalty system:

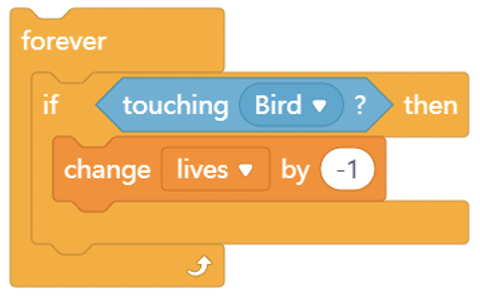

• If the sprite touches the bird, it loses a life:

Add an animated effect to the life sprite:

• To show how many lives the player has left, add a 4-star sprite at the top left corner of the stage. A star represents a life.

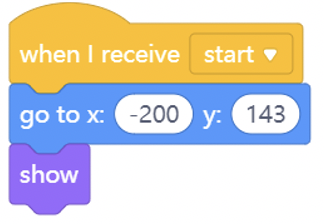

• The 4-star sprite only appears when the game starts. So, move the sprite to a specified location but hide it at the very beginning.

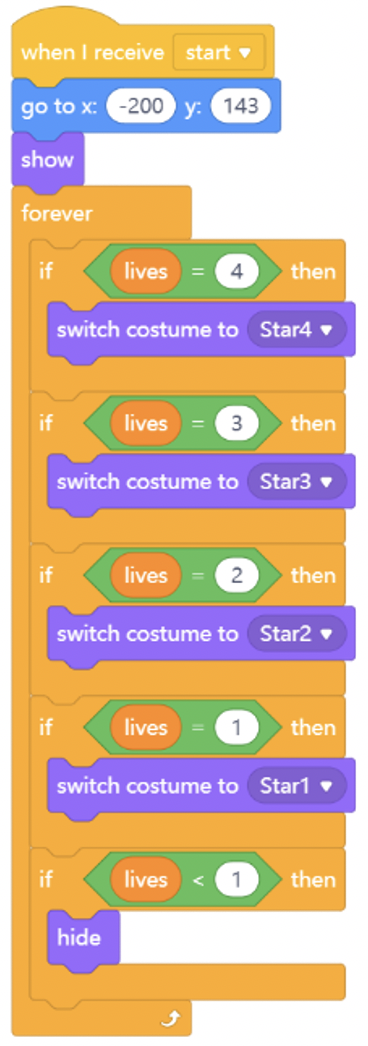

• The 4-star sprite has four costumes and switches costumes to tell the player how many lives are left. When Lives equals 0, the sprite disappears from the stage:

NOTE:

• Here's just an example program. Complete the script to make the sprite change costumes accordingly when Lives equals 3, 2, and 1.

Result game over:

Game over effect:

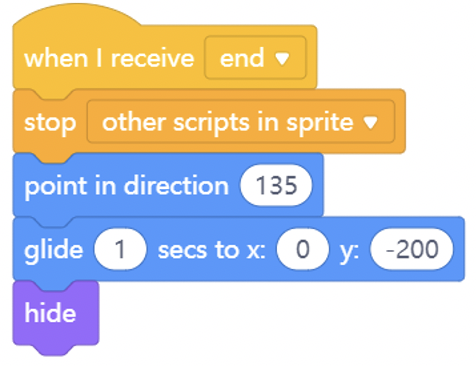

• Character falling: When the game is over, the player character stops flying and falls down. Use point in direction ( ) and glide ( ) secs to x: ( ) y: ( ) to mimic the falling effect.

Display Game Over:

• A Game Over sign rises from the bottom to the center of the stage.

• Highlight the sprite Signs and click Costumes. One of the costumes is Game Over.

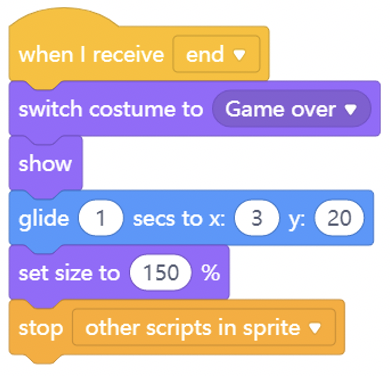

• Make the Game Over sign appear at the center of the stage:

Extensions

• Have students speed up the birds to increase the level of difficulty overtime

• Have students add a second bird to increase the level of difficulty overtime

Wrap-Up & Quick Check

Objective:

• Allow students time to play the game that they’ve developed and have them improve the game by considering user preferences.

Procedures:

• Invite two volunteers to try the game and compete to see who can survive the longest.

• Have students discuss: As a player, do you want other features or effects? What are they?

Example Program
