CyberPi: Game Controller

Description

In this lesson, students will turn the CyberPi into a game controller by combining device programming and stage programming in mBlock. Students will examine example programs to discover how the CyberPi can control the movement of a sprite. Then, through pair programming, students will modify an existing game to program a CyberPi game controller.

Objectives

• Differentiate between stage programming and device programming.

• Examine and describe how an existing project functions.

• Create a program in mBlock using the CyberPi to control sprites.

• Modify an existing program.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 5 – Chase Game & CyberPi – Lesson 5 – Space Adventures

Warm Up

Video Game Discussion

1. Have students discuss the following with a partner:

• Do you play video games? If so, how often?

• What device or video game system do you prefer to play games on?

• What’s your favorite video game controller?

• What features make it your favorite?

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Explore Example Games

1. Assign students partners and determine who is Partner A and who is Partner B.

2. Instruct each student to open the appropriate example project:

• Partner A: Lesson 5 – Chase Game

• Partner B: Lesson 5 – Space Adventure

3. Have students connect the CyberPi in Live mode and play the game.

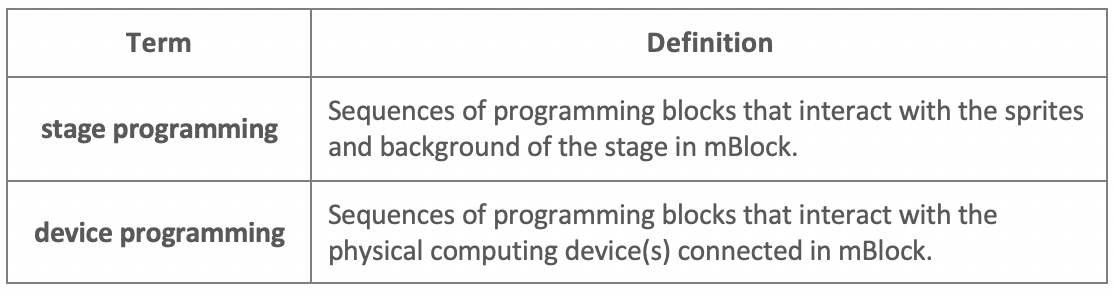

4. Each project combines stage programming and device programming to create an mBlock game that is controlled by the CyberPi. Explain the following to students:

5. Have students examine their assigned example program and differentiate between the stage programming and the device programming.

Note, device programming will be on the device(s) listed on the Devices tab and stage programming will be on the sprites and backdrops listed on the Sprites and Background tabs.

Abstraction and Decomposition

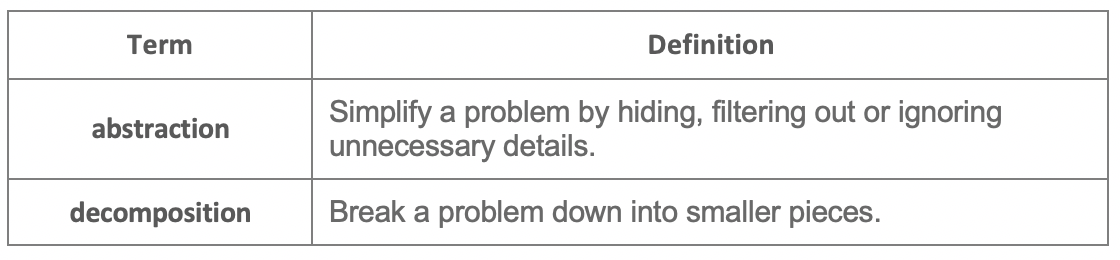

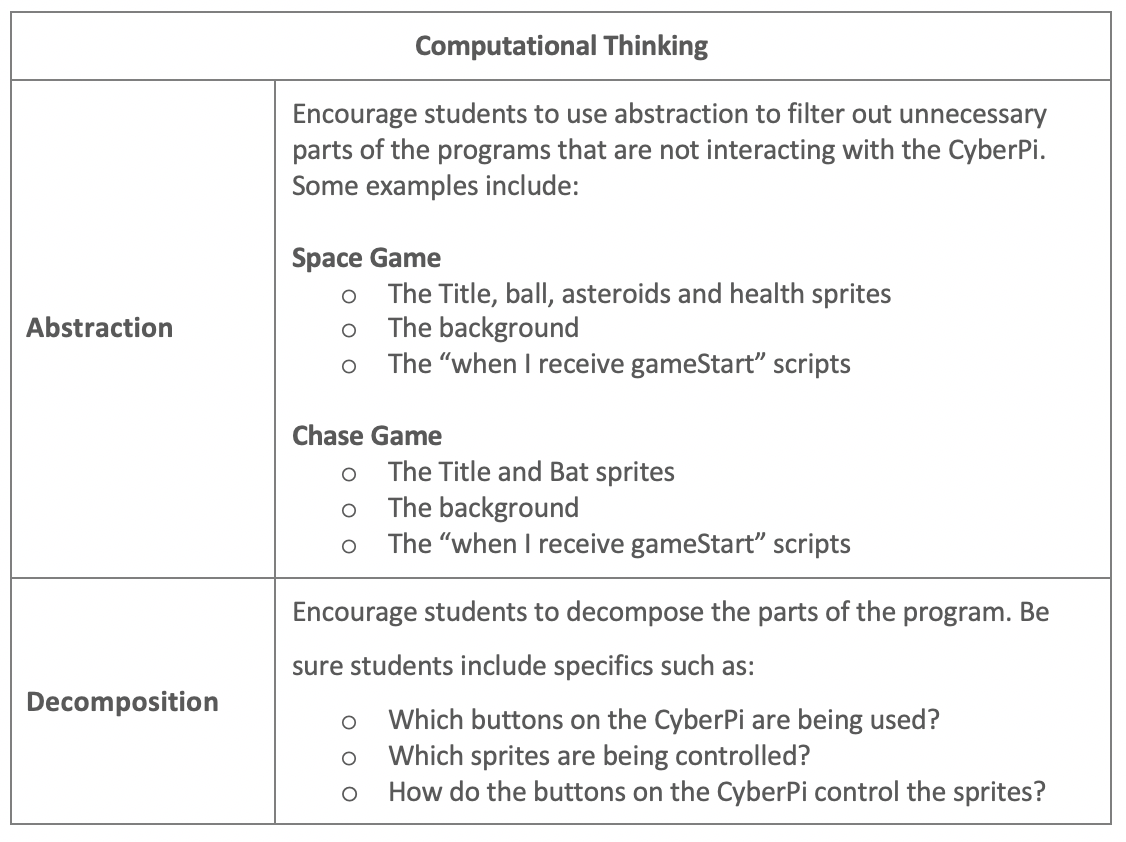

6. Students will be using computational thinking strategies, abstraction and decomposition, to examine the example projects and determine how to modify an existing game to add a CyberPi game controller. They will use abstraction to ignore or filter out parts of the program that are unnecessary to the challenge and use decomposition to break down the stage programming and device programming parts that are needed to create the controller.

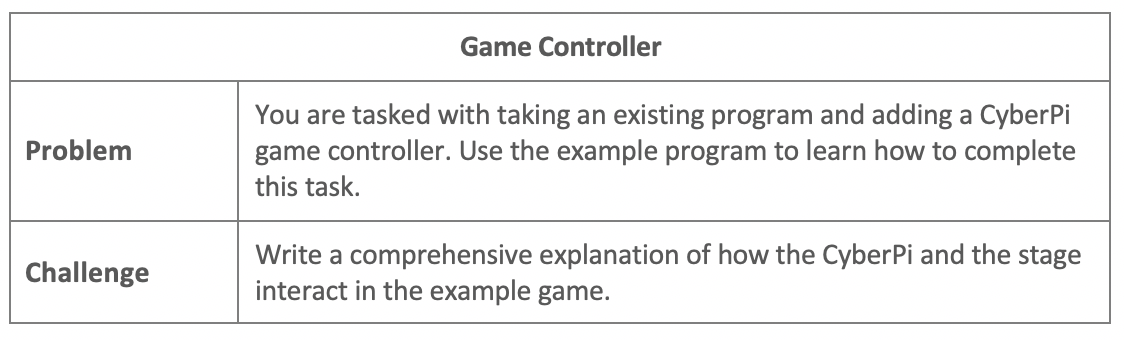

7. Instruct students to carefully examine their assigned game and to complete the following challenge:

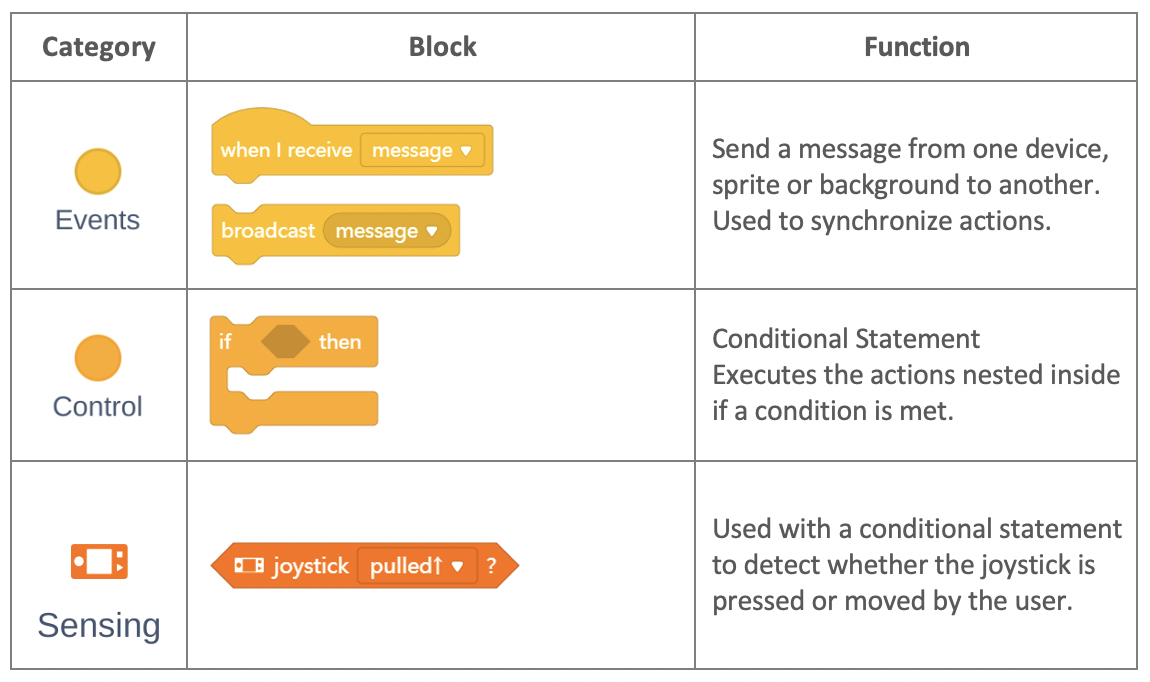

8. Through the exercise above, students should have discovered the following blocks:

Try It

Pair Programming

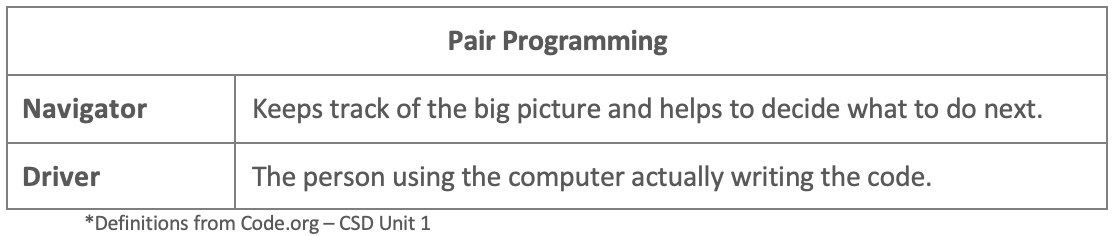

1. Students will be working with a partner to add a CyberPi game controller to an existing project. Introduce students to the Pair Programming roles:

2. Have students switch roles every 3-5 minutes during the portion of the lesson.

Modify an Existing Project

3. Click Tutorials in the upper right corner. Select Example Programs.

4. Choose the Stage label to see example programs for the Stage.

5. While pair programming, have students choose an example program and modify the program scripts to add a game controller.

Extension

• Have students research intellectual property, copyright, creative commons and citations.

• Have students add a title and game instructions to the project.

Wrap-Up & Quick Check

Respecting Intellectual Property

1. Discuss the importance of respecting intellectual property and providing credit to creators.

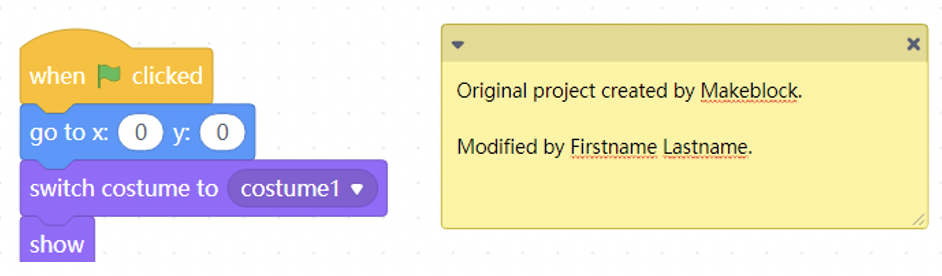

2. Have students add a comment to their project that provides credit. To add a comment, right-click on the script area and select Add comment.
