CyberPi: Houseplant Care

Description

In this lesson students will gain insight on the need of water for plants. Students will use sensors to measure and monitor the moisture of plants. They will also stimulate sunlight and water loss using sensors and send alarms based on the levels of water.

Objectives

• Explain the relationship between plants and water and identify how much water different plants need.

• Simulate sunlight and monitor the moisture of plants.

• Use mind maps to analyze how a plant monitoring device works.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 4 - Houseplant Care

For students:

• Proficiency in block-based coding

• Prior knowledge of CyperPi's major features

Warm Up

Objective:

• Before students design plant monitoring devices, help them learn about plants and the purpose of the houseplant care project.

Procedures:

Introduce the topic of this lesson:

• Say: Plants can clean air, relax our minds and eyes, and add color to the environment. All life needs water. We need water, so do plants.

• Play a video demonstration to help students learn more about plants.

• Summarize: Water is essential in plant's healthy growth, photosynthesis, and transpiration. Plants have different features, and hence, different water needs. For example, cacti, covered in spines, dry out very slowly, so we can water them once a month. Some plants, such as Chinese money plants (i.e. Pilea Peperomioides) with flat, thin, big leaves, need much water, so we'd better water them every day. Most plants, such as chrysanthemums and morning glories, only need watering once a week

• Ask: What will happen if we water our plants too frequently or forget to water them?

• Have students think about and discuss the above question.

• Summarize: Plants will dry out and wither if we forget to water them. But if we water them too often, they may die of overwatering. We should be aware that overwatering wastes water, especially when it comes to watering many plants, like during agricultural irrigation.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Introduce the application of a plant monitoring device. Encourage students to think about how to design this project. Enhance students' independent thinking skills.

Procedures:

• Introduce the design challenge of this lesson: To design a plant monitoring device to remind plant lovers to water their plants appropriately.

• Ask: What features do you think a plant monitoring device should contain?

• Possible answers: A plant monitoring device could be able to:

1. Detect whether a plant has a moisture problem; and

2. Remind the user to take care of the plant when it has a moisture problem.

• Demonstrate the desired outcomes of the Plant Monitoring Device project.

• Instruct students to identify the functions and applications of the plant monitoring device by means of the mind map.

Try It

Objectives:

• Instruct students to design the Plant Monitoring Device project.

• Have students program different functions of the plant monitoring device.

Procedures:

Prepare to write Python programs:

• Have students get their CyberPi devices ready, connect it to mBlock, and switch to Live mode in mBlock.

• Distribute the example program to students and ask them to open it.

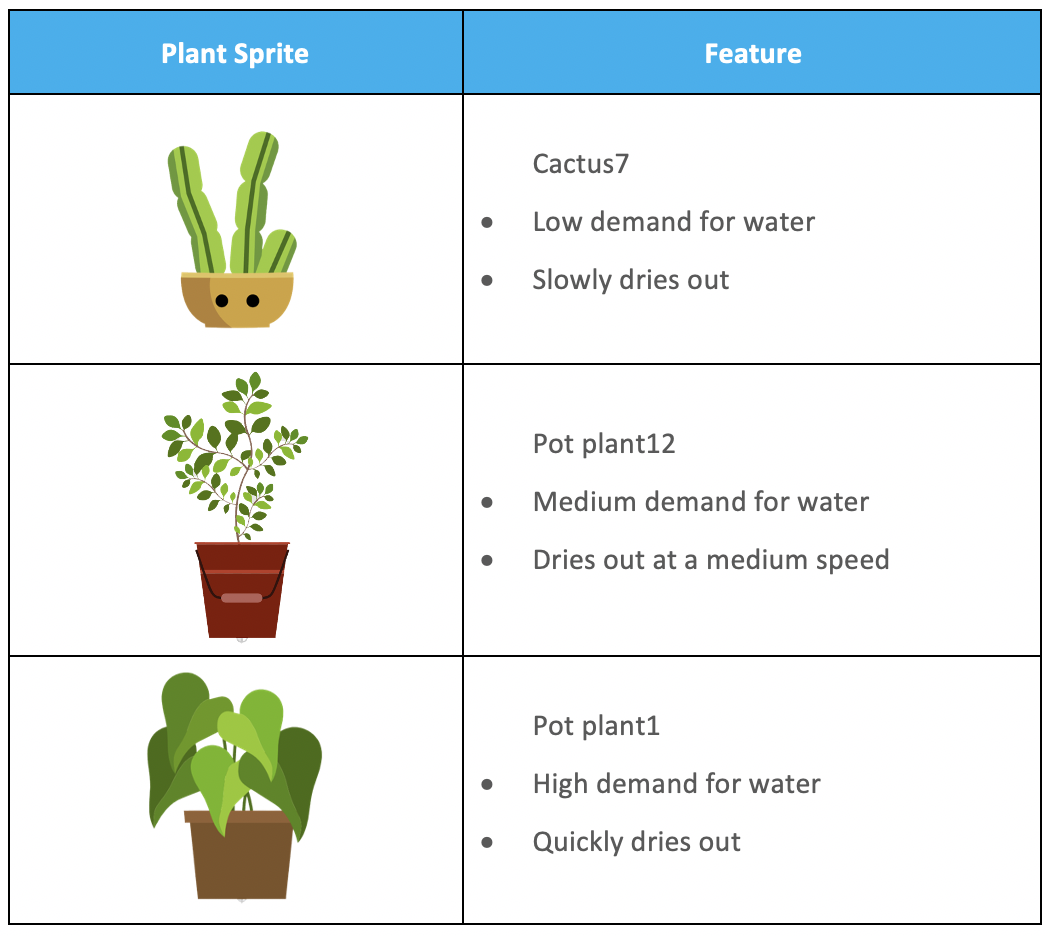

• Observe the three sprites on the stage and analyze their possible features.

• Assume the three plants are given the same amount of sunlight in this project.

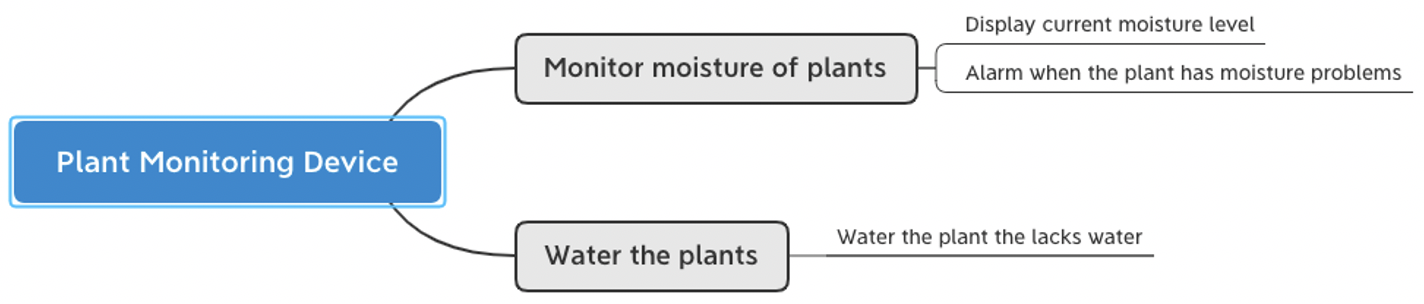

• Instruct students to write programs based on the mind map for project design.

• Instruct students to program the project. Make it display current moisture level.

• Simulate the water loss process: Use the light sensor to simulate the light. When the light is intense, the plant loses water faster. Remind students that plants have different water loss speeds, so they need to set up the speed accordingly.

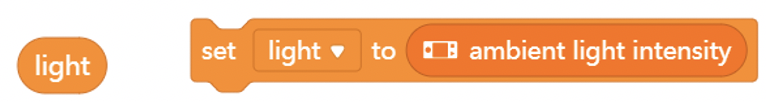

• Create a variable light to store the data returned by the light sensor.

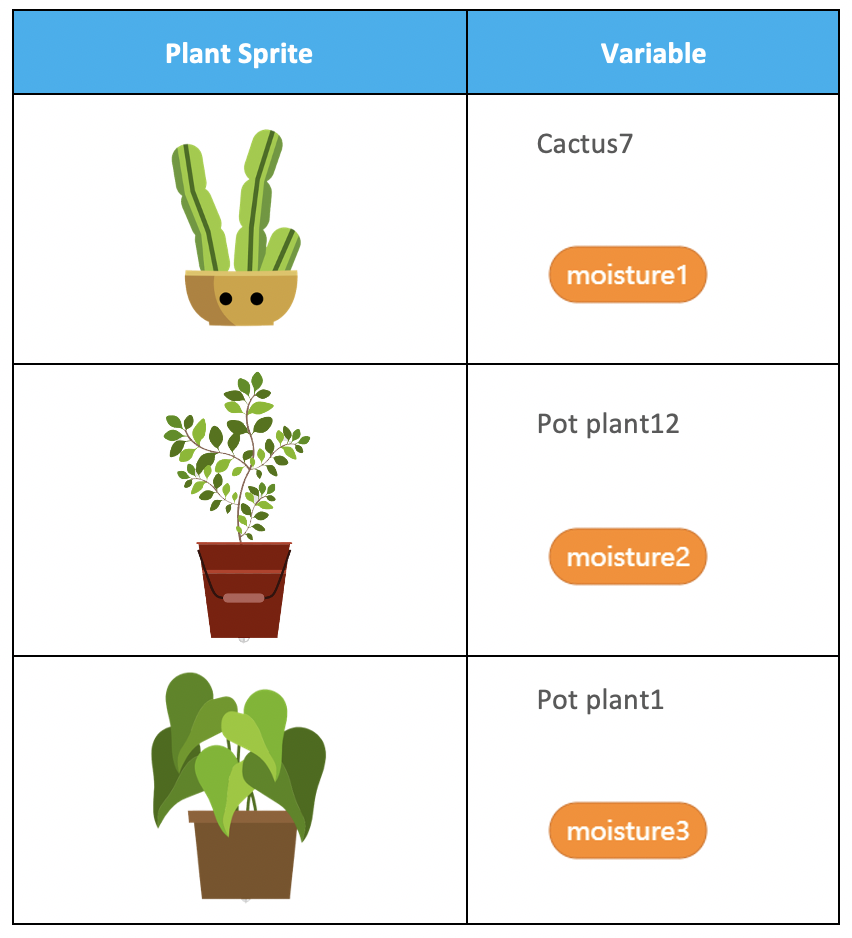

• Create variables moisture1, moisture2, and moisture3. Set different variables to represent the moisture level of the three plants:

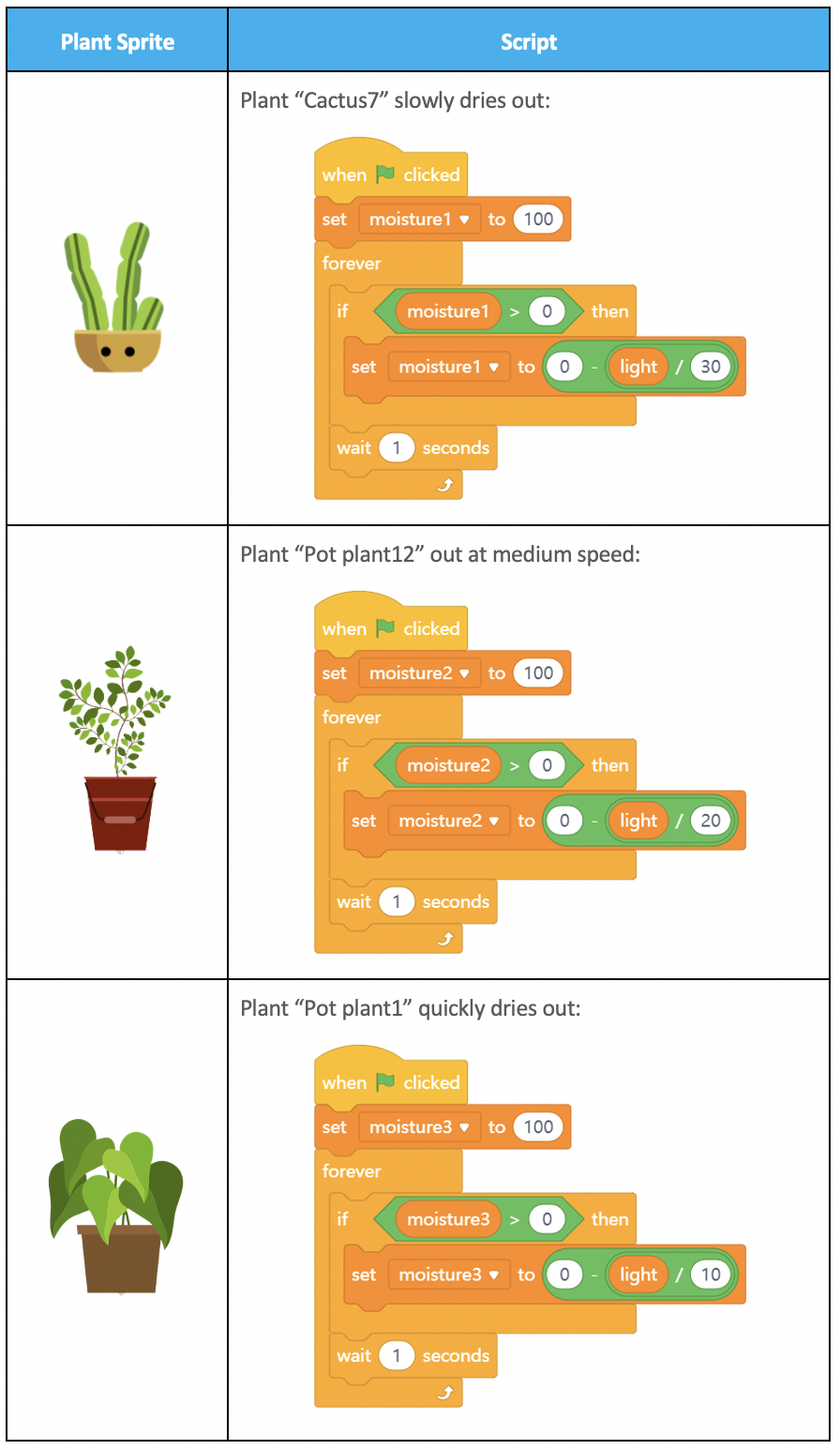

• Simulate the water loss of the plants:

Tips for coding:

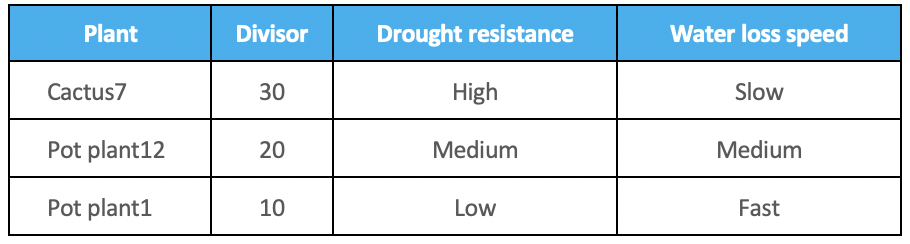

• Divide the variables light by different numbers to simulate the plants' drying out process.

• Set the condition moisture is greater than 0 to avoid the variables going negative.

• Use the wait block to prevent the moisture variables from decreasing too fast.

Display moisture level:

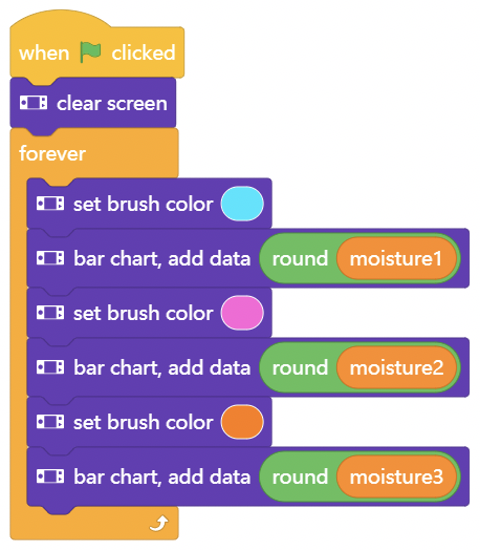

• CyberPi's screen can display a bar chart to represent the moisture level of the three plants.

• Use different colors to represent the indicators for different plants.

• Round off the moisture values with the round block because CyberPi can only display integers.

Make the project send alarms when plants have a moisture problem:

• Detect moisture problems: The program decides whether to send an alarm.

• Ask students to complete the scripts for Plant Pot plant12 and Plant Pot plant1 in reference to the above example.

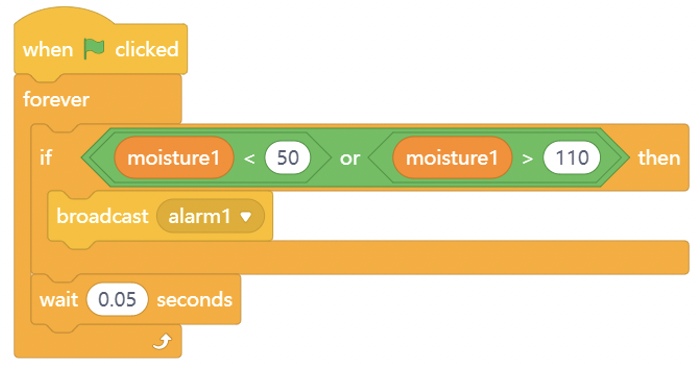

• Set the two conditions:

1. If the moisture is under 50, it means the plant lacks water;

2. If the moisture is over 110, it means the plant is overwatered.

• When one of the conditions is true, the program sends the alarm.

• Remind students that they can change the numbers (here 50 and 110) based on their design.

Raise alarms:

• When the plant has a moisture problem, a light indicator lights up.

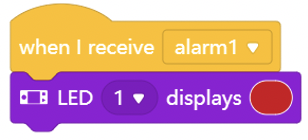

• Example of Plant ‘Cactus7’ Indicator:

• Ask students to complete the scripts for Plant “Pot plant12” Indicator and Plant “Pot plant1” Indicator in reference to the above example.

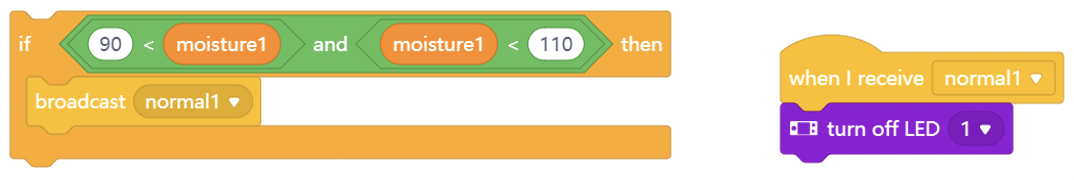

• However, when the plant's moisture returns to the normal range, the alarm should stop.

• Ask students to complete the scripts for Plant “Pot plant12” Indicator and Plant “Pot plant1” Indicator in reference to the above example.

• Remind students that they can change the numbers (here 90 and 110) based on their design.

Program the watering process:

• Use the joystick to select a plant.

• Create another variable and name it: choice.

• Use this variable to select a plant.

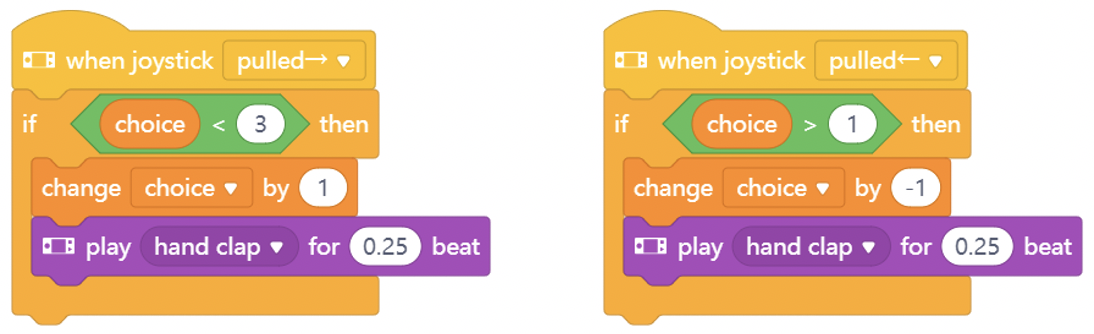

• The variable choice can increase only when it's less than 3 and decrease only when itis greater than 1. Use this setting to limit the variable between 1 and 3.

• When the value of choice equals 1, the first plant is selected. When the value of choice equals 2, the second plant is selected. When the value of choice equals 3, the third plant is selected.

Add sprite Diamond3:

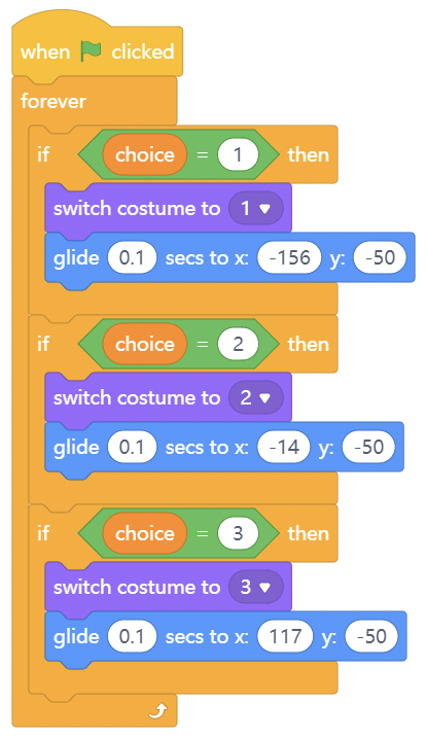

• Use it as an arrow that will appear under the selected plant on the stage. Modify the sprite’s costumes to differentiate the arrows. Program this sprite as follows:

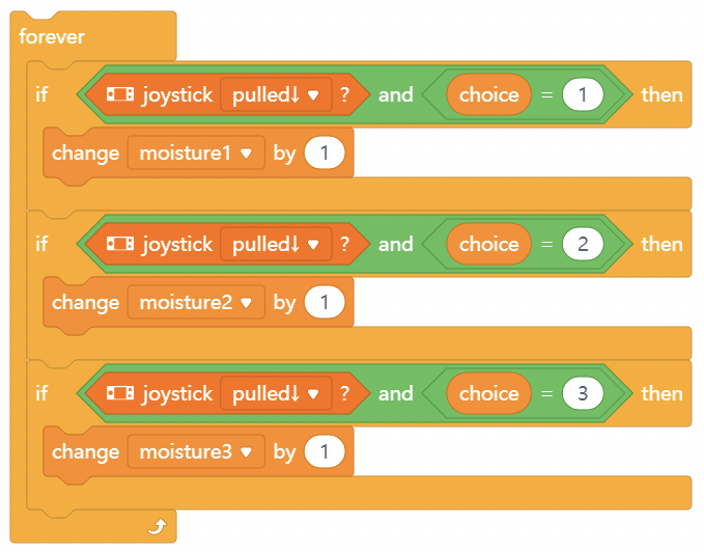

• Water the plants: After you select a plant, pull the joystick down to water it.

Extension

• Have students add a new variable called Sunlight

• Similar to checking the moisture level, have them check to see if their plant is getting enough sunlight

• When it is not getting enough, display "move plant"

Wrap-Up & Quick Check

Objective:

• Have students further explore what they've learned based on this project.

Procedures:

• Invite volunteer students to present their projects. Ask students to give feedback on each other's projects and think about how to improve the projects.

• Have students introduce a plant (its name, features, and how to take care of it). Encourage them to do online research about the growth characteristics of the plant.
