CyberPi: Noise Detector

Description

In this lesson students will gain a basic understanding of the characteristics and types of data, and the importance of data in everyday life. Students will use sensors to retrieve data and display data on the screen while identifying different types of data and their functions.

Objectives

• Identify the basic characteristics and types of data.

• Clarify the importance and common use of data in everyday life.

• Use sensors to retrieve data, and display data on the screen.

• Write programs to create a noise detector.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 1 - Noise Detector

For students:

• Proficiency in block-based coding

• Basic knowledge of sensors

Warm Up

Objective:

• Have students do an in-class survey and collect data, preparing them for the later session about what data is.

 Procedures:

• Hand out pens and paper to students. Have students work in pairs.  Ask them to investigate the topic by asking classmates on the following questions:

(1) Where would you like to spend your weekends most?

(2) How many times do you go to the library per month?

(3) What month does your birthday fall?

• Give students 1 minute to work on their survey.

• Pick 2 or 3 students to share their survey.

• Ask: What's your first thought when you hear "data"? What is data?

Explain:

• Types of data: The answers to the three questions above could all be considered data.  Data is distinct information that is formatted in a special way. Birthday, hobby, height, weight and others. All these are data. Data exists in a variety of forms, like images, sounds, texts, symbols and more.

• Use of data: Data could be used to convey messages, e.g. queue management system, weather report, bus arrival notification...

• Summary: Data helps us solve and organize problems in many ways.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Introduce a scenario where a noise detector could be used, and have students think about noise pollution in their life.

• Have students brainstorm possible solutions to deal with the data they've collected, and design features they want.

Procedures:

• Discuss a scenario where noises are annoying.

• Ask: If you’re on a bus and someone is talking aloud, how will you feel?

• Ask: Suppose we now have a device that's monitoring sounds around. To reduce some noises like this, how should we design the device? What features must the device have?  You have 1 minute to discuss with your partner.

• Pick 2 students to share their thoughts.

• Categorize the features based on students’ discussion

• Show students how the noise detector works.

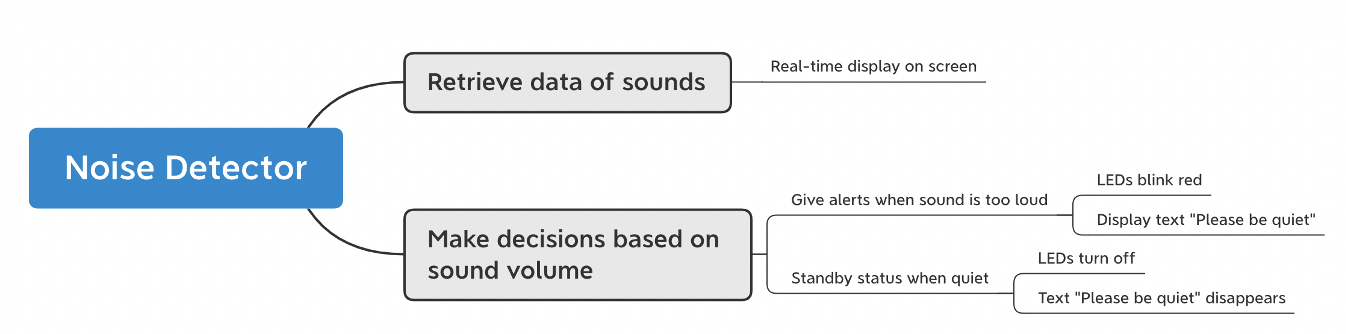

• Work with students to analyze what features a noise detector must have, and draw a mind map.

Try It

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

 Procedures:

• Show students where these modules are on CyberPi: LED Screen, Buttons, Joystick, Switch, Sensors, LED Indicators.

• Teach students how to start their CyberPi and connect the device to mBlock.

• Add the device CyberPi in mBlock, and start programming it.

Display sound volume:

• Use CyberPi's sound sensor to detect sound volume. Tick the coding block below to display volume on the stage in mBlock.

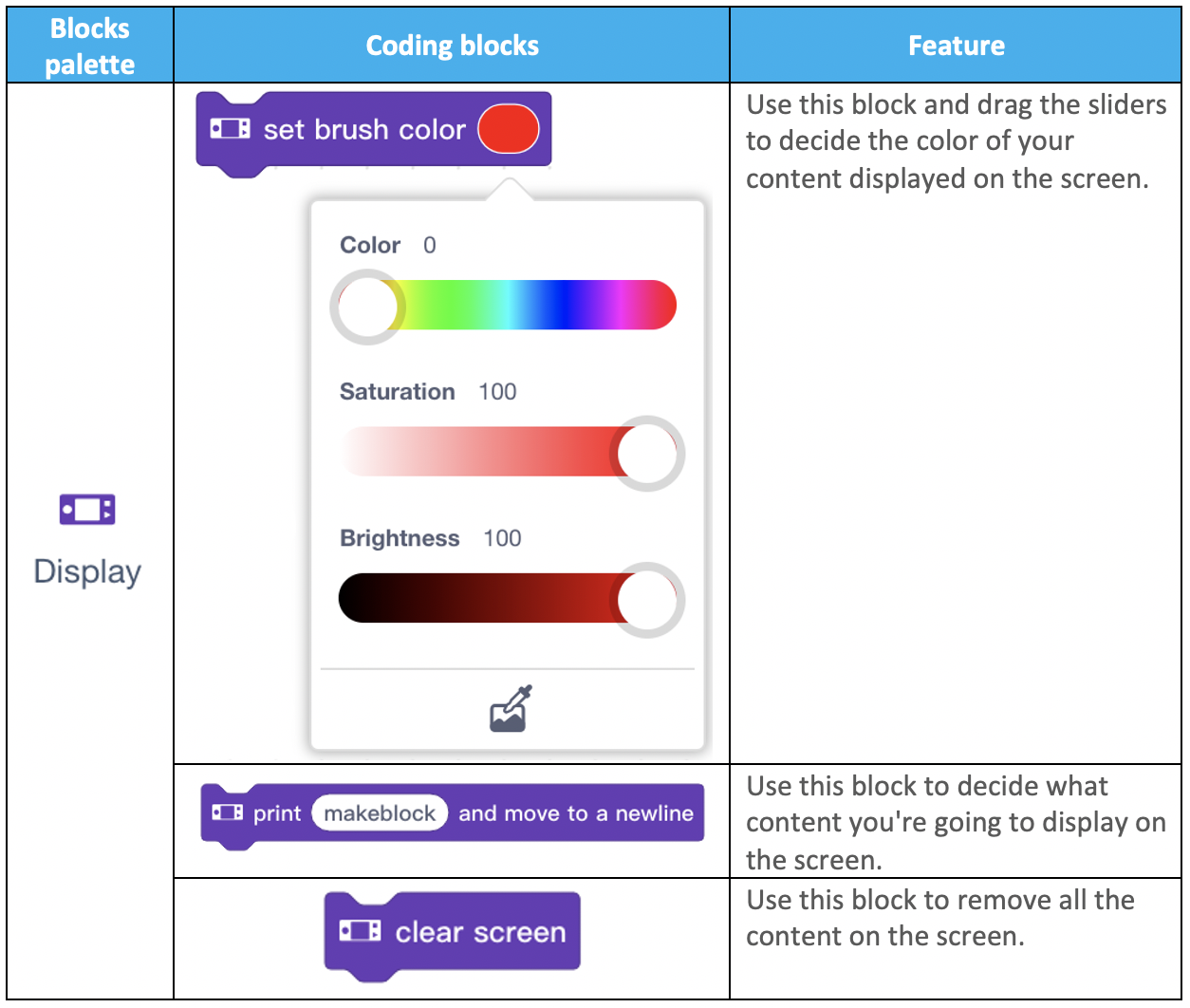

• To display sound volume on CyberPi's screen, you need to use the following three blocks

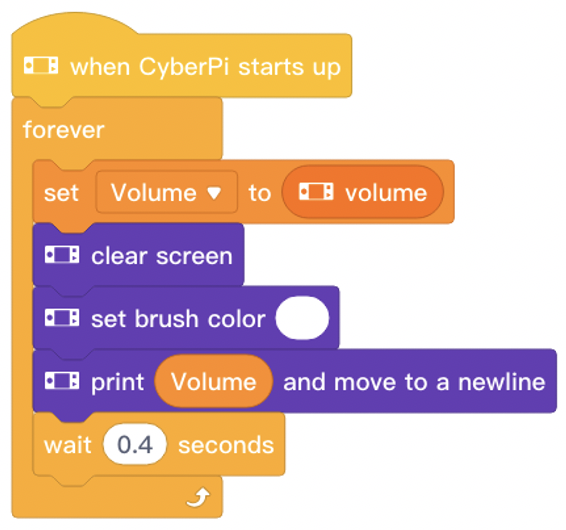

• Program CyberPi to display sound volume:

NOTE:

1. Remove all the existing content on the screen at the very beginning to make sure the new content is clearly displayed.

2. Have students use the device to directly retrieve volume and observe what happens.

• Explain: The device has an in-built sensor to detect sound volume in real time, so the volume value retrieved will keep fluctuating all the time. As a result, you may find it much harder to see an exact volume value on the screen. To slow down the changes of value, you can set up a variable named "volume" to store the volume value retrieved.

Make decisions based on the sound volume:

• Decide whether to give alerts or not.

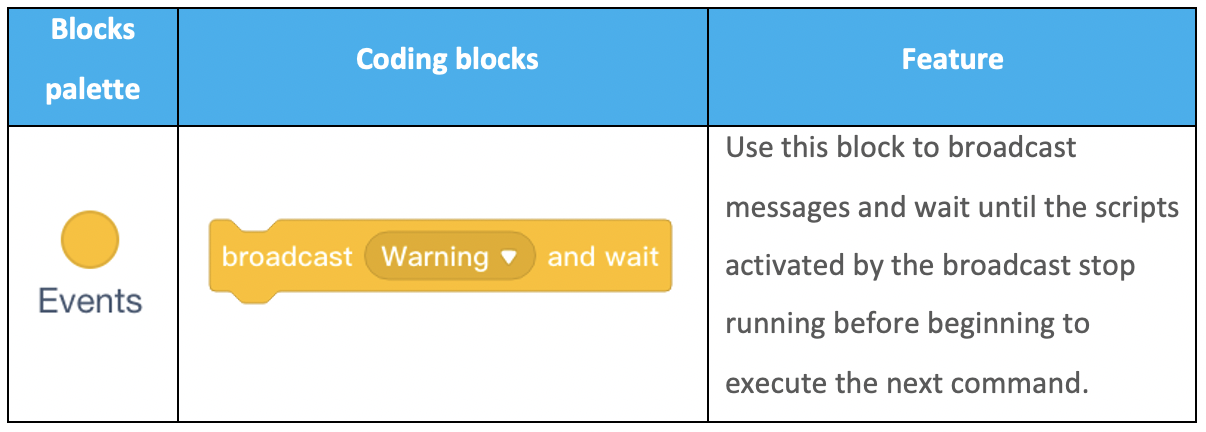

• Use the block broadcast () and wait to send alerts.

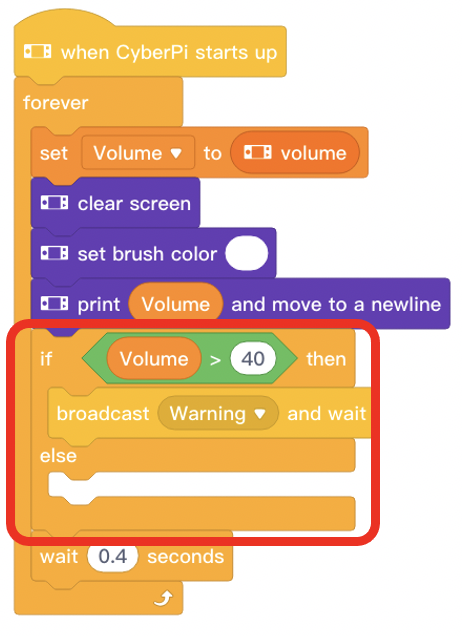

Relying on the mind map, program CyberPi to make decisions based on volume:

NOTE:

• The example program above uses "40" as a threshold. But students can change the threshold to another value as they'd like to.

• Define the alerts and standby

• Based on what we observed, CyberPi will give the following alerts when the volume is too high.

1. LEDs blink red;

2. The screen displays the text "Please be quiet".

Program CyberPi to give alerts:

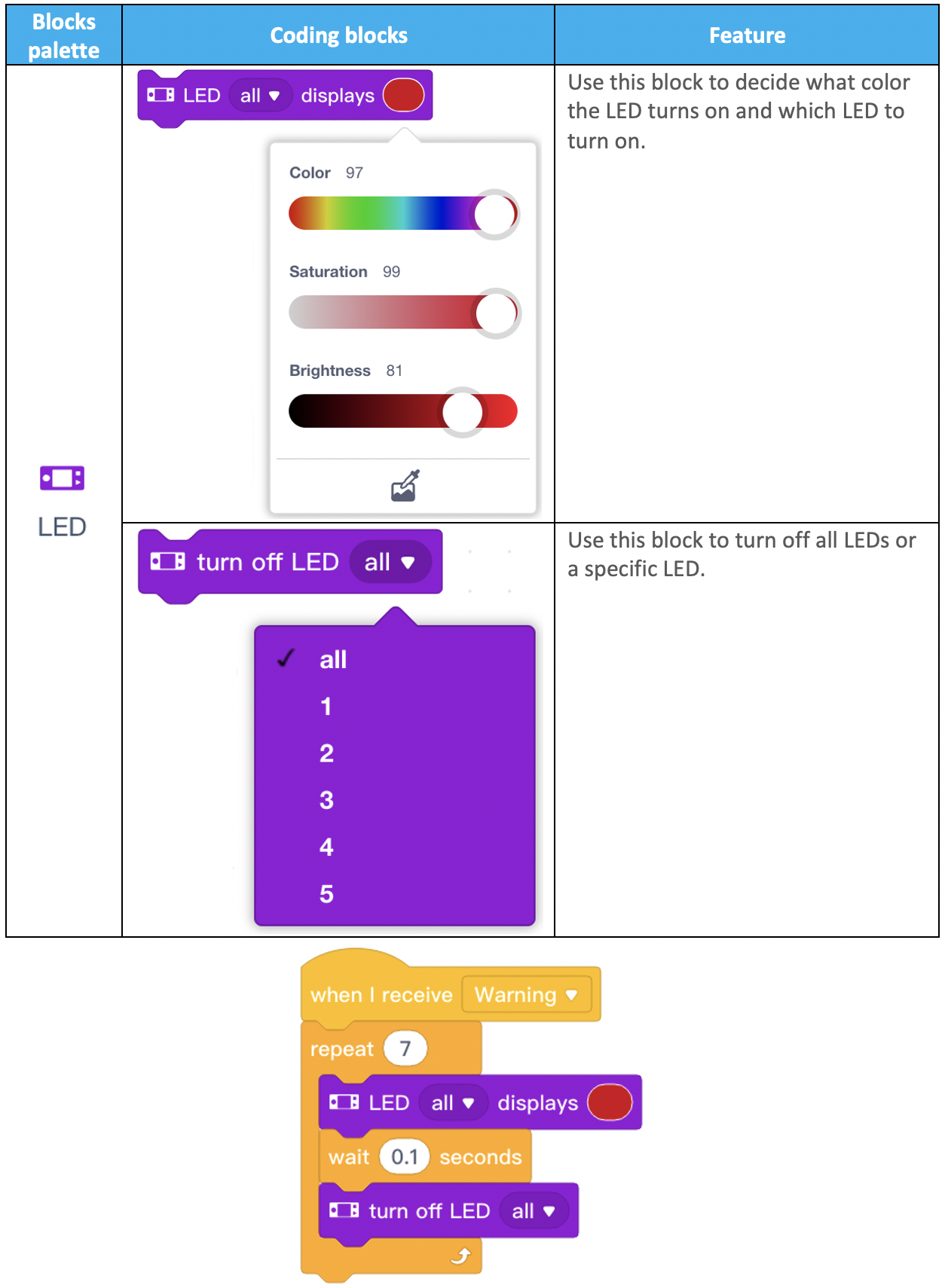

• LEDs blink red:

• Use the blocks below:

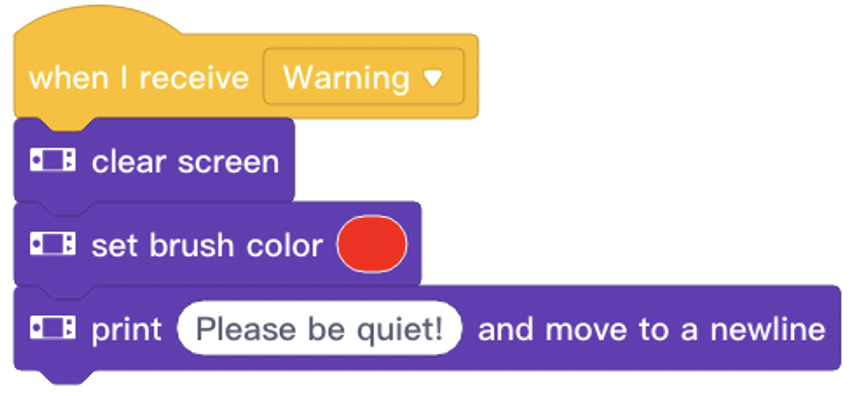

• Program CyberPi to display the warning text "Please be quiet" on its screen:

Standby status:

1. LEDs turn off;

2. Warning text disappears.

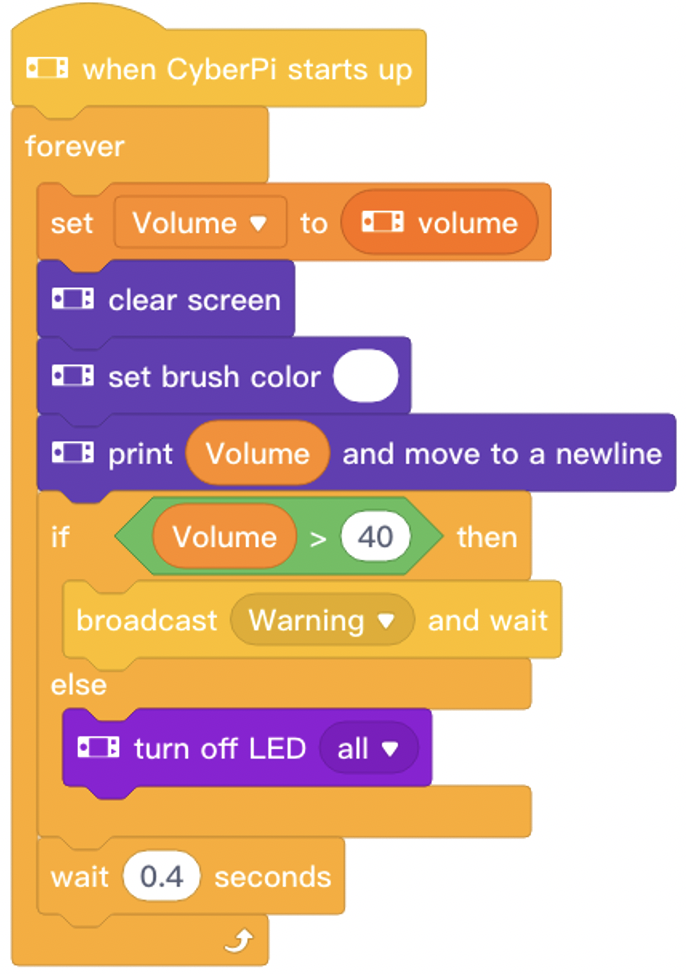

• Program CyberPi to define its standby status:

NOTE:

• The program already includes a coding block for clearing the screen, so we don't need to clear the screen again here.

Extension

• Have students explore different Display blocks

• They can try:

1. Changing the font size

2. Creating their own colours

3. Display different colours depending on how loud the volume detected is

4. Use the graphing block to show changes in volume

Wrap-Up & Quick Check

Objective:

• Have students think of any situation in which they will use their project. Make them rethink about incivility in public space and the application of data in everyday life.

Procedures:

• Pick 1 or 2 students to showcase their noise detector.

• Where do we need to use noise detectors? Where and when should we be careful about our volume? Ask students to have a discussion.

• Ask:  Can you think of any other applications of data in daily life?  What data are you familiar with in your everyday life?

Example Program
