CyberPi: Opposite Game

Description

In this lesson students will continue to build on their knowledge of game creation and design. Students will use variables and lists to establish rules for an opposite game and decision game results.

Objectives

• Explain the roles of data in designing game mechanics and develop a simple game.

• Use variables and lists to establish rules for an opposite game and write programs to decide the game results.

• Draw mind maps to analyze how to develop an opposite game.

• Improve reaction time and reverse thinking skills by designing and developing the game.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 10 - Opposite Game

For students:

• Proficiency in block-based coding

• Prior knowledge of CyperPi's major features

• Capable of displaying texts and images

• Basic understanding variables and lists

Warm Up

Objective:

• Engage students in a fun warmup activity, the Opposite Game. Encourage them to think about how the decision system of the game works.

Procedures:

• Ask students to do the opposite of your commands. For example, when you say "look up", students should look down; when you say "lift your right hand", they should lift their left hand. Tell students the correct action after they perform an action.

• Ask: The opposite game can improve reaction time and concentration. Now, I want you to recap how we decided whether an action was correct.

• Summarize: In the opposite game, every command has a designated action, like stand up and sit down. If you do the opposite of the command, then you do the correct action. Many games adopt a similar method to decide the results, comparing players' actions with the preset designated actions. If a player's actions match the actions set in the system, then the player wins the game.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Have students brainstorm how a game decides whether a player wins.

Procedures:

• Introduce the task: We’re going to use the same decision mechanism to develop a simple opposite game.

• Ask: How do we decide whether a player wins or loses the game?

• Summarize: When a command comes up, the player needs to perform an action. If the player does the opposite of the command within the given time, then the player wins the game. If the player fails to do the opposite or the time is up, then the player loses the game.

• Work with students to analyze the game mechanics.

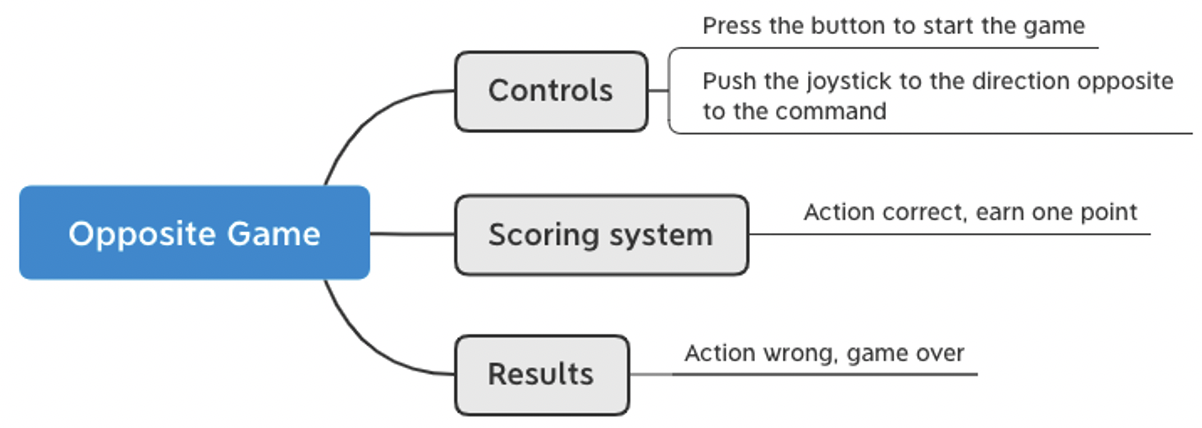

• Show the mind map to students.

Try It

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

Procedures:

• Open mBlock, add CyberPi in"Devices, connect CyberPi to mBlock, and select Live mode.

• To make it easier to check whether players' actions match the designated ones, create a list command to store the commands.

• Add four commands to the list: up, down, left, and right.

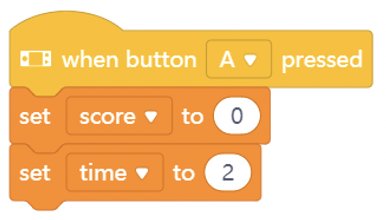

Press the button to start a game:

• The game begins:

NOTE:

1. Use the variable score to record a player’s scores.

2. Use the variable time to set the time limit. Set time to 2. If players fail to do an action in 2 seconds, they lose the game.

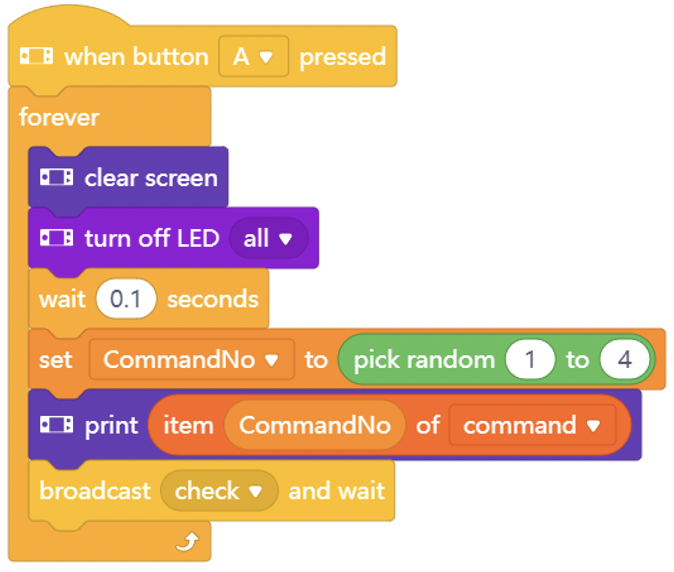

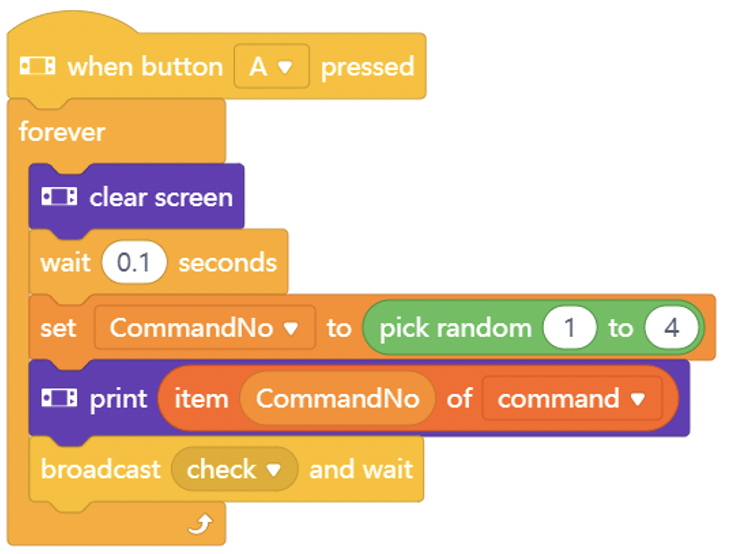

Display commands:

• The game starts when the button is pressed. CyberPi should display a command as the game starts.

NOTE:

1. To make sure players are clear about which command to follow, clear the screen every time before displaying the next command.

2. Use the variable CommandNo to match the number of each item in the "commands list. As the list includes four commands, pick a random number between 1 and 4 to display the commands randomly.

3. Include a broadcast ( ) and wait block in this script to report the decision about whether the player makes the right action before the next command comes up.

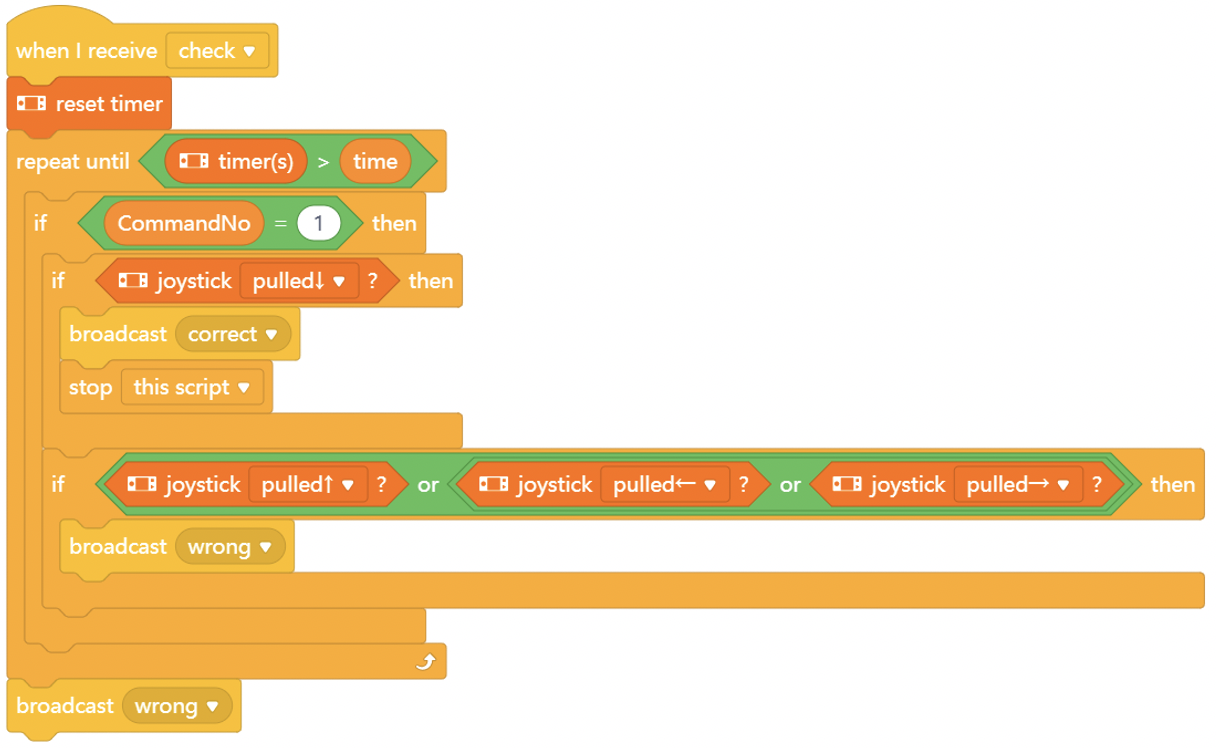

• Push the joystick to the direction opposite to the command

• If the player does the opposite of the command within the given time, then the player wins the game.

• If the player does the same as the command or if the time is up, then the player loses the game.

NOTE:

1. The example program includes the decision system for the up command. Complete the programs for the rest commands. When CommandNo equals 1, the command is up. If the player manages to push down the joystick within the given time, then the player makes a correct action and wins the game. If the player pushes the joystick to other directions or if the time is up, the player loses the game.

2. If the player's action is correct, stop the script and display another command. If the player’s action is wrong, the game is over.

3. To check whether a player performs the action within the given time, compare the variable time with the timer. When the timer value is greater than the maximum value time, it means the player exceeds the maximum time, and the decision system will stop working.

Scoring system:

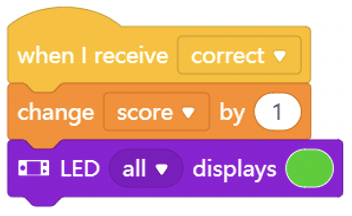

• Action correct, earn one point: When the player's action is correct, score increases by 1, and CyberPi's LEDs light up green.

• Display next command and turn off LEDs: When the player's action is correct, CyberPi displays the next command. The screen should have been cleared and the LEDs turned off before CyberPi displays the next command.

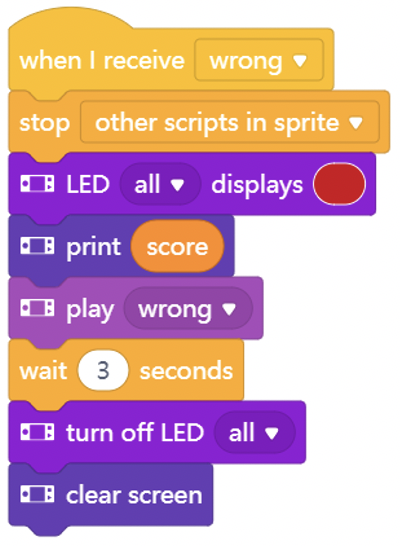

Action wrong, Game Over:

• When the player's action is wrong, the game ends. CyberPi will display the score, and its LEDs will light up red.

Results:

• When the player does a wrong action, the game ends.

• Make the game more challenging and more interesting.

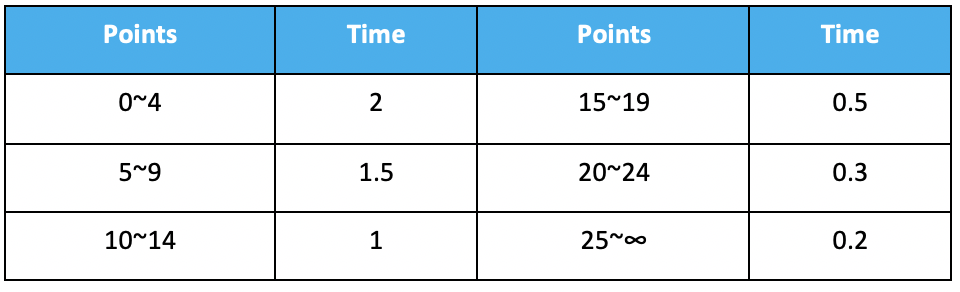

• For example, set up the scoring system based on the levels of difficulty. In the harder version, players have less time to react but earn more points for a correct action.

NOTE:

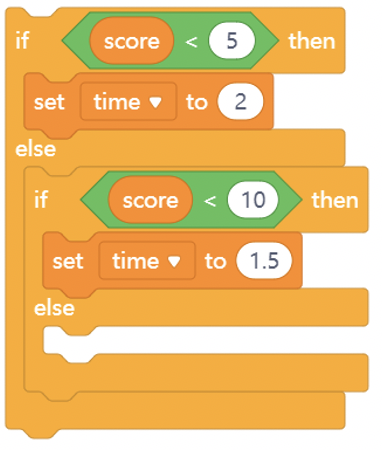

• The example program provides two levels of difficulty. Build on the example program to diversify the levels of difficulty.

Extension

• Have students create their own timer by creating a new variable

• They should use this timer to check wether the player responded within the required time

Wrap-Up & Quick Check

Objective:

• Improve students' engagement and encourage them to complete the project by challenging them to the opposite game.

Procedures:

• Activity 1: Divide students into groups and have them play the game to see which group finishes the most rounds.

• Activity 2: Invite five to six students to compete in front of the class.

• Tip: Pick one of the activities according to class performance. To ensure fair competition, invite other students to examine the players' programs.

Example Program
