CyberPi: Remote Classroom Polling

Description

In this lesson students will analyze data charts and collect data with LAN broadcasting. Students will also process votes and generate a bar chart based on the data collected.

Objectives

• Describe the features of LAN, and broadcast and receive data through LAN.

• Generate a bar chart based on the votes.

• Analyze poll results and draw conclusions.

• Use mind maps to analyze how to make a remote classroom polling system.

• Write programs and complete the remote classroom polling project.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 3 - Remote Classroom Polling Teachers Demo & Remote Classroom Polling Students Demo

For students:

• Proficiency in block-based coding

• Prior knowledge of CyperPi's major features

Warm Up

Objective:

• Use videos to bring up the voting and polling topic and introduce voting systems and LAN.

Procedures:

• Start the class by saying: Have you ever watched any competition shows? In these shows, a voting session usually follows the competitors’ performances.

• Ask: During the live voting session, how did the audience vote? What about those watching the show at home? Could they participate in the session?

Have students answer the questions:

• Ask: Do you know how to limit access to the voting session? Like in the voting session I mentioned just now, only the live audience can vote, and the home audience can't.

• Introduce LAN: One of the common ways is to connect the voting machines to the same private network. This kind of network is usually used within an area and hence, called Local Area Network (LAN). Unlike the Internet, a LAN is a closed network, which means only the devices connected to the same LAN can share resources and information.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Prepare a few poll questions in which students may be interested. Encourage students to brainstorm the features that a voting system should have.

Procedures:

• Explain and ask: In this lesson, we will use CyberPi to form a LAN and then run a poll. And only we, in this classroom, can vote. So, how do we make a voting system with CyberPi and mBlock?

Give students time to discuss the question.

• Conclude: First, we need an initiator to start a poll. Then, the rest of us will be voters. When the voting session closes, the initiator counts the votes.

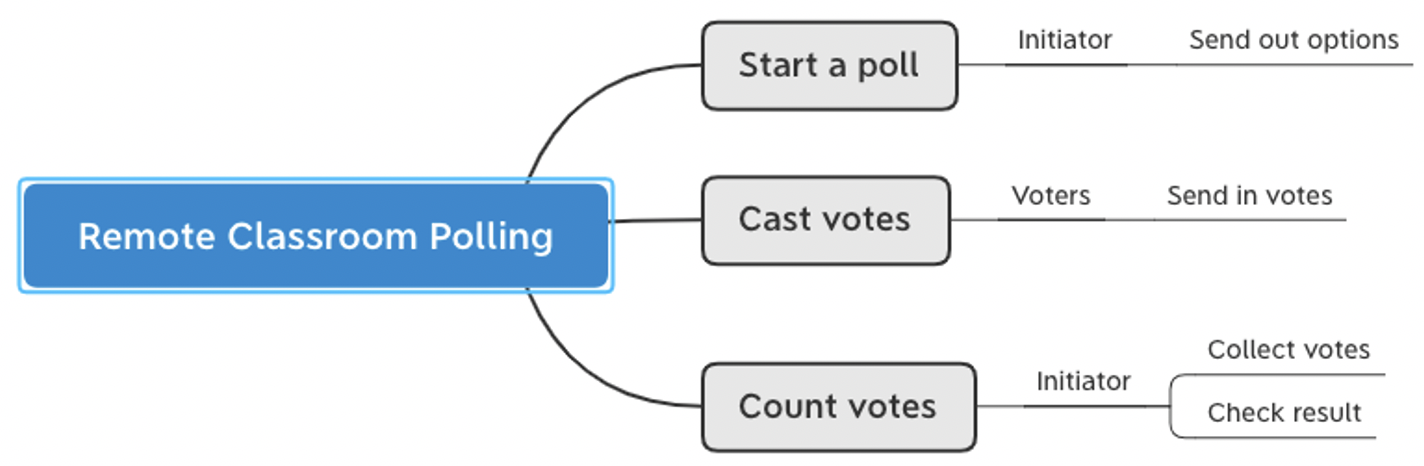

Instruct students to use mind maps to analyze the project and prepare to program:

• Demonstrate how remote classroom polling works.

• Analyze with students what features the remote classroom polling project should have and draw a mind map.

Try It

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

Procedures:

• Explain: We write programs for the initiator and the voter separately, so we’ll need two CyberPi boards. In mBlock, select Upload mode before writing programs for the two boards.

• Walk students through the programs for the initiator and the voter respectively. To write programs for the initiator, select CyberPi in "Devices", and select CyberPi 2 to write programs for the voter.

The initiator starts a poll:

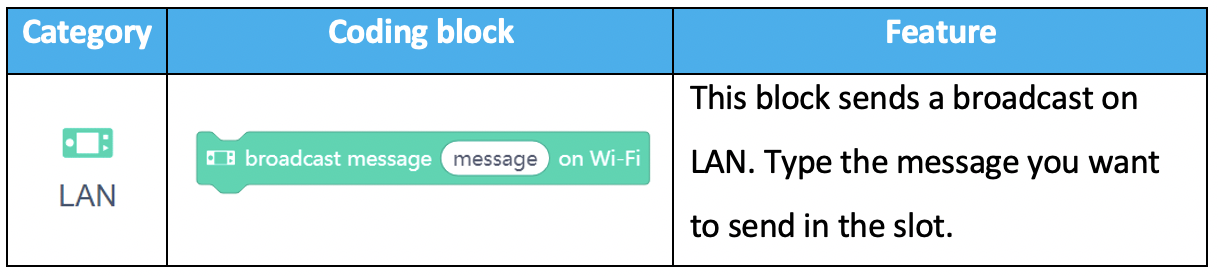

• To make multiple CyberPi boards communicate with each other, we need the LAN blocks.

• Select CyberPi in Devices and write programs for the initiator.

• Create two option variables to record the votes. The initiator CyberPi sends a LAN broadcast options, displays a prompt Options sent. Poll starts, and lights up indicators.

• NOTE: Create two variables to record the votes for the two options and set both variables to 0.

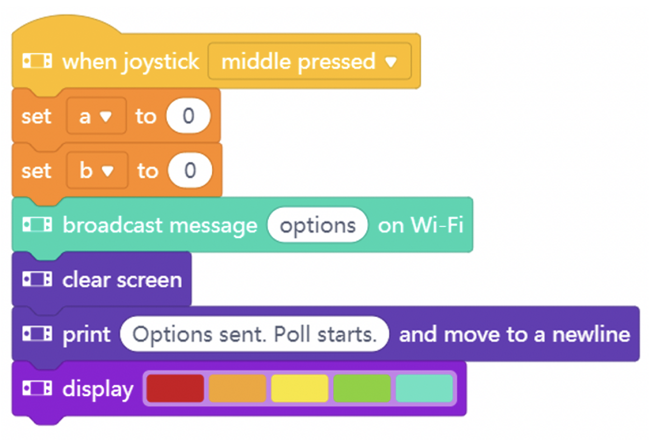

Send out options/Set voting period:

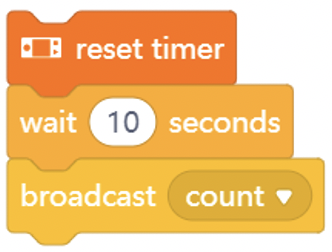

• Apart from starting the poll, the initiator sets the voting period, so it needs to set a timer. Only during the voting period that is set up, voters can cast their votes. As the poll ends, the initiator starts counting the votes.

NOTE:

• The timer will be used to decide whether a voter casts a vote within the voting period.

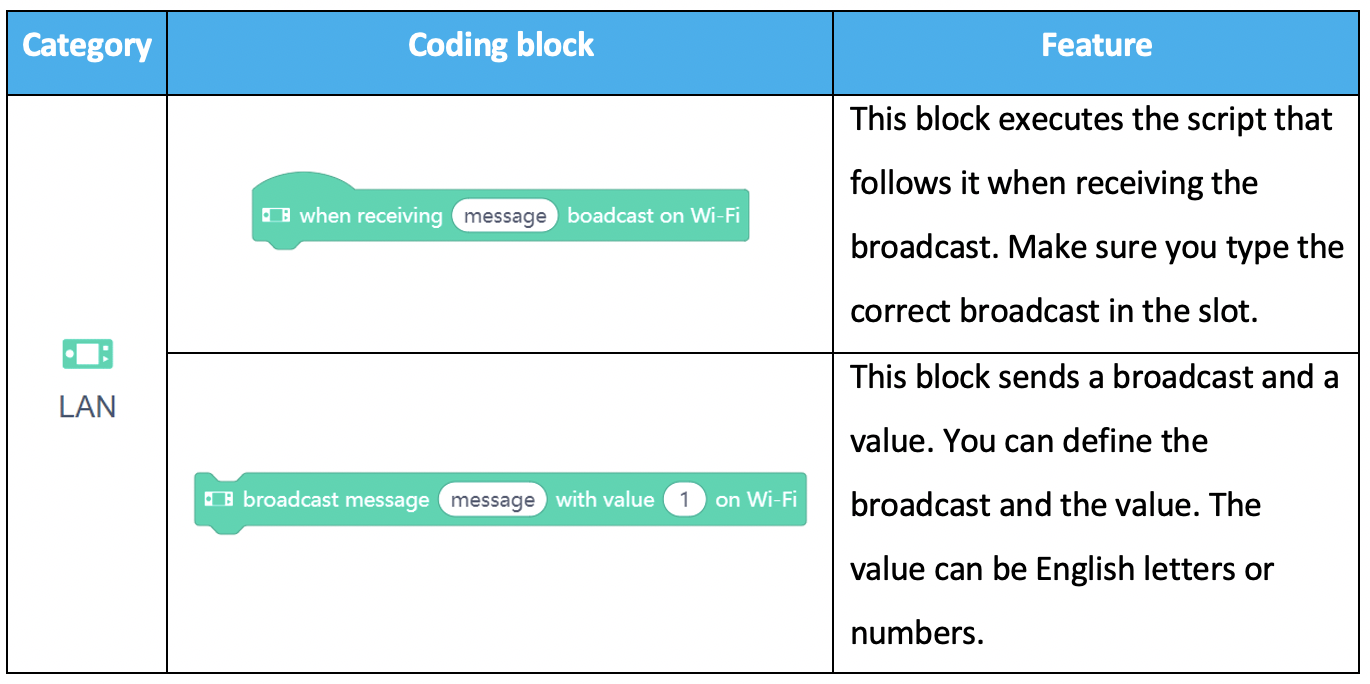

Voters send in votes:

• When receiving the broadcast options, a voter starts to vote. During the voting session, voters send their votes on LAN through broadcasting. You’ll need these blocks in your program:

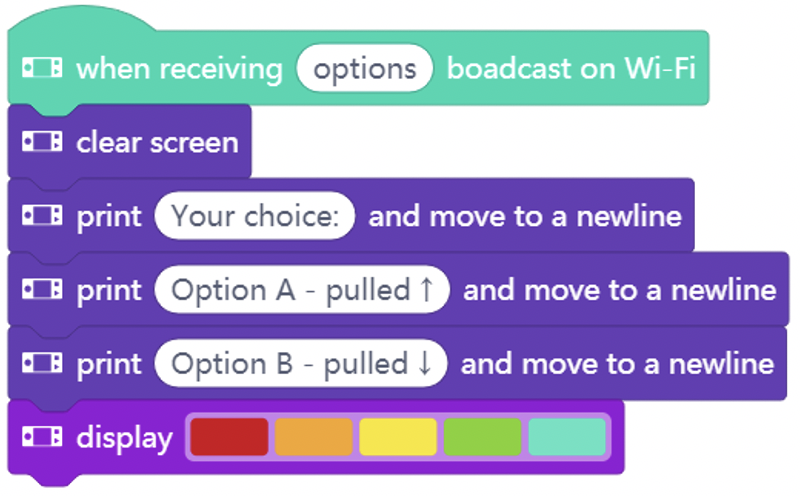

Display options:

• Type options in when receiving ( ) broadcast on Wi-Fi. Make sure the broadcast name is the same as the one in the initiator program. When receiving the broadcast, the voter CyberPi lights up indicators and displays the options and voting instructions.

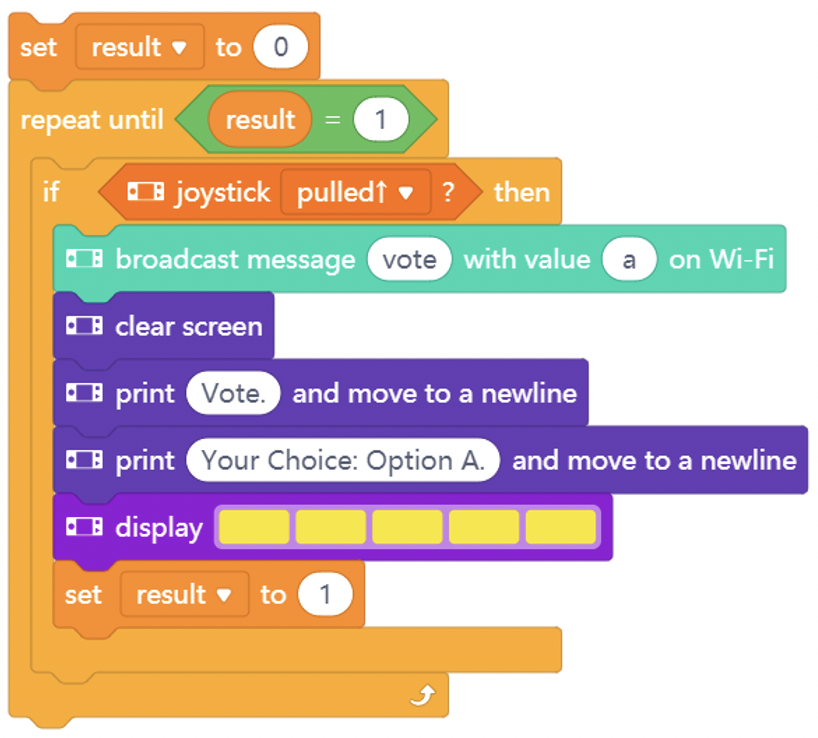

Cast votes:

• Make sure voters can cast only one vote by recording their voting status. The voter CyberPi sends a LAN broadcast vote.  When the vote is sent through, a prompt will appear on the screen of the voter CyberPi, and indicators will light up.

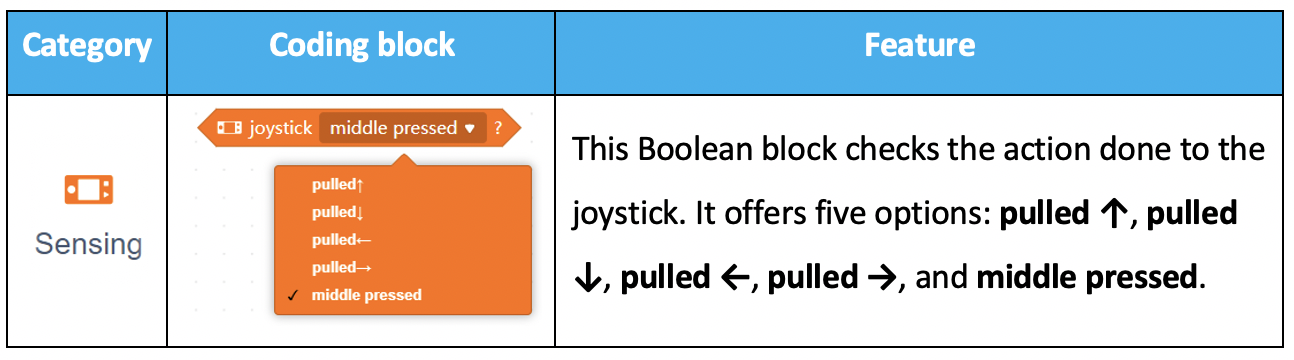

• Whether the joystick is pulled decides the voting status and the direction to which the joystick is pulled indicates the voter’s choice. You’ll need this block in your program:

NOTE:

1. To make sure each voter can only cast one vote, create a variable VotingStatus to record whether a voter finishes voting. When the variable is 0, it means the voter hasn’t voted yet. VotingStatus changes to 1 when the voter finishes voting.

2. The example program includes only one option. Complete the program that provides two voting options.

Initiator collects votes:

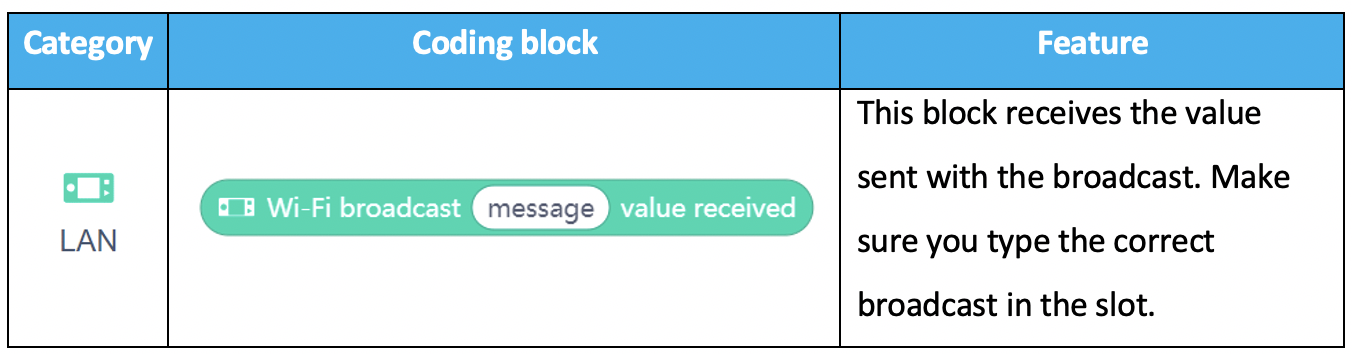

• The initiator collects the votes via LAN broadcast. You’ll need this block to enable that:

• Select CyberPi in Devices and write another initiator program.

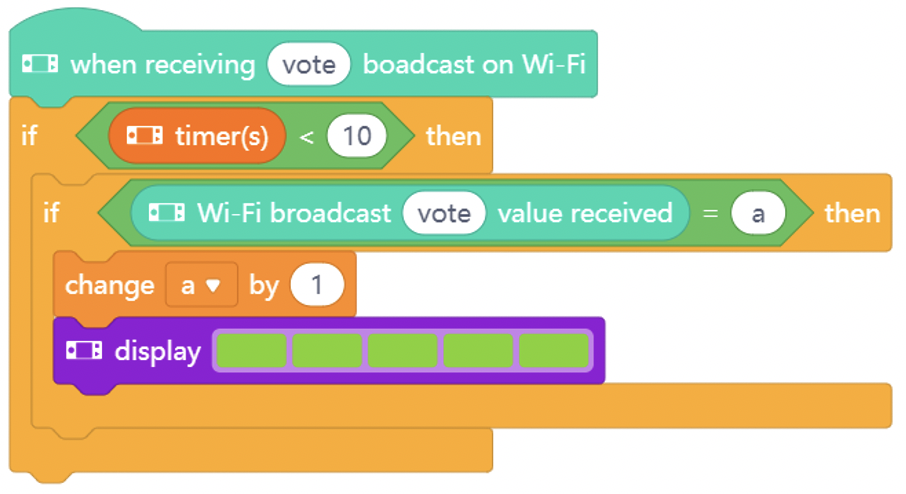

• Type vote in when receiving ( ) broadcast on Wi-Fi.  Make sure the broadcast name is the same as the one sent from the voter program. When receiving the broadcast during the voting period, the initiator collects the votes and lights up indicators.

NOTE:

1. Include a timer in the script to check whether a vote is submitted within the voting period.

2. To count the votes, set a conditional statement to check the broadcast value, and increase the vote by 1 for the corresponding option based on the value received.

3. The example program counts the votes for option a. Complete the program that can count the votes for both options.

4. If different CyberPi boards send through the same message via the same LAN at the same time, the receiver CyberPi will only receive the message once. That is if multiple voters select option A at the same time, then the initiator will count only one vote for Option A. However, the possibility of this incident is faint.

Initiator checks the polling result:

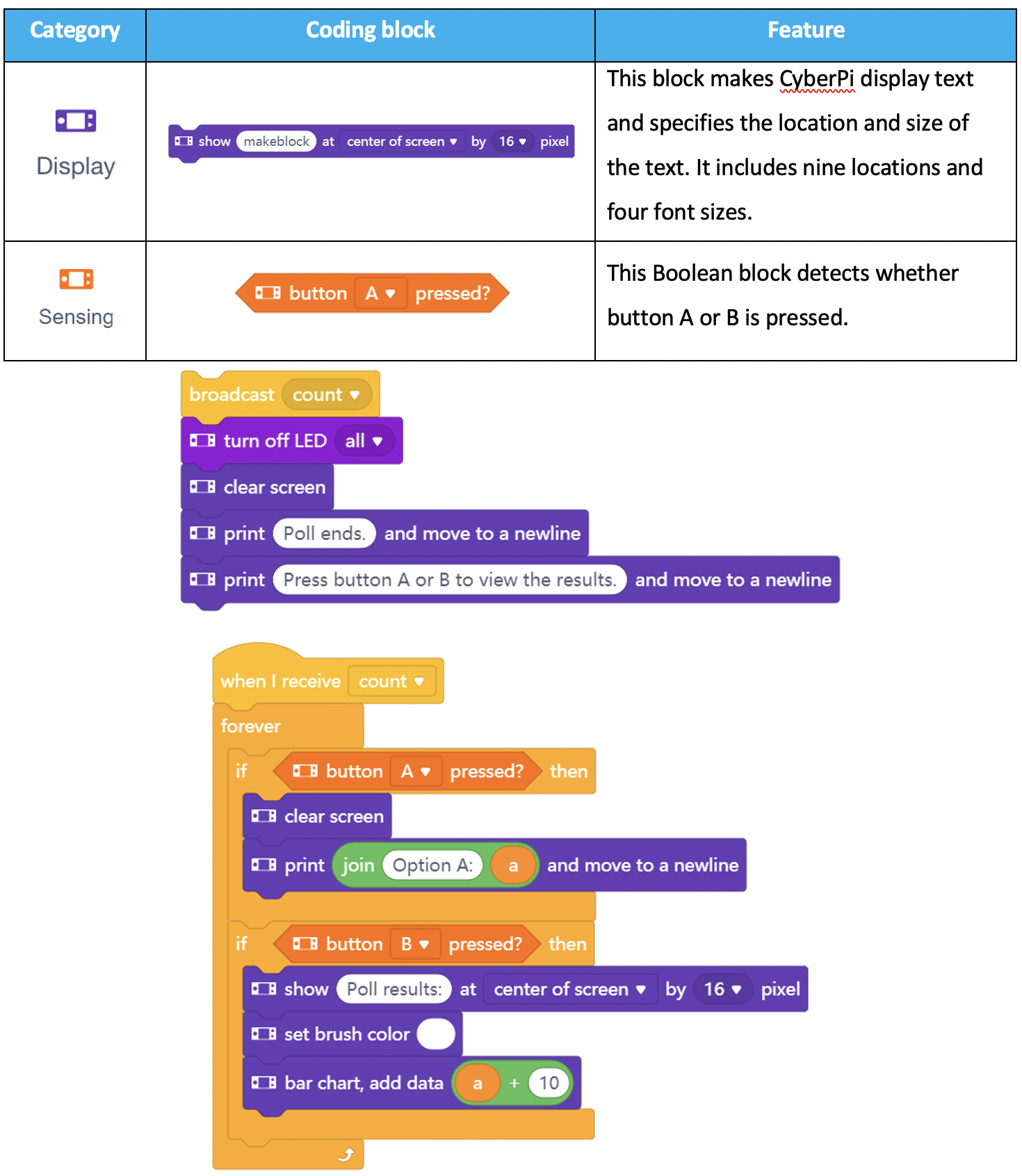

• You can display the polling result with text or a bar chart. And these blocks may help:

NOTE:

1. The example program displays the vote tally for option a. Complete the program that displays the vote tally for both options.

2. Set different colors for different bars when visualizing the result with a bar chart.

3. If the number of voters is small, add a base number to the vote tally of each option. For example,



    . In this way, the bar chart will be clearer.

• Allow students time to test their programs and then invite them to describe the bar chart and draw conclusions.

Extension

• Have students create their own poll

• Have students explore the table block under Display and use it to organize the collected votes in a table

Wrap-Up & Quick Check

Objective:

• Decide or have students decide the poll question. Give students time to try the voting system and analyze the result.

Procedures:

• Initiate a classroom poll and invite students to vote. (Possible subject: favorite song/movie star/singer/game, etc.)

• When the poll is done, invite students to analyze the result data chart. For example, have students figure out which is the most popular song among the class and discuss why it is so popular.
