CyberPi: Sensor Meter

Description

In this lesson, students will discover how the on-board sensors on the CyberPi represent loudness and light intensity of the surrounding environment. Students will learn about data representation and graphing of sensors values.

Objectives

• Describe how CyberPi sensors detect the surrounding environment.

• Debug errors in programs in mBlock.

• Document a program using comments in mBlock.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

Example program(s):

• CyberPi – Lesson 6 – Sensor Meter Volume Chart

• CyberPi – Lesson 6 – Sensor Meter Sound & Light

Warm Up

Data and Society

1. Find a current smart home devices to present to the class. Discuss how these solutions use sensors to provide security, convenience and automation for consumers.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Exploring Sensor Data

1. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

2. Open the Lesson 6 – Sensor Meter example project. Click the Green Flag to run the program. Observe the values for the CyberPiVolume and CyberPiLightIntensity.

3. Have students run the program and observe the sensor values and graphing in different scenarios, such as:

• CyberPi sitting on the desk

• Covering up the CyberPi (light intensity should decrease)

• Shining a flashlight on the CyberPi (light intensity should increase)

• Trying to be as quiet as possible (volume should decrease)

• Clapping or talking near the CyberPi (volume should increase)

4. Challenge students to determine the minimum and maximum values the sensors report to the computer. Note, the Light sensor and Sound sensor have a range of 0 to 100.

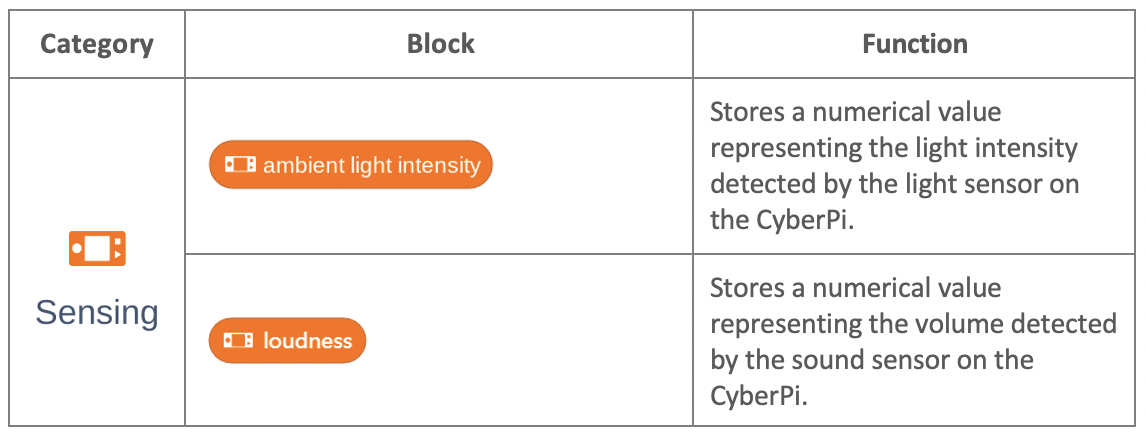

5.  Introduce students to the blocks that are used for the sensors on the CyberPi:

Charting the Sound Sensor

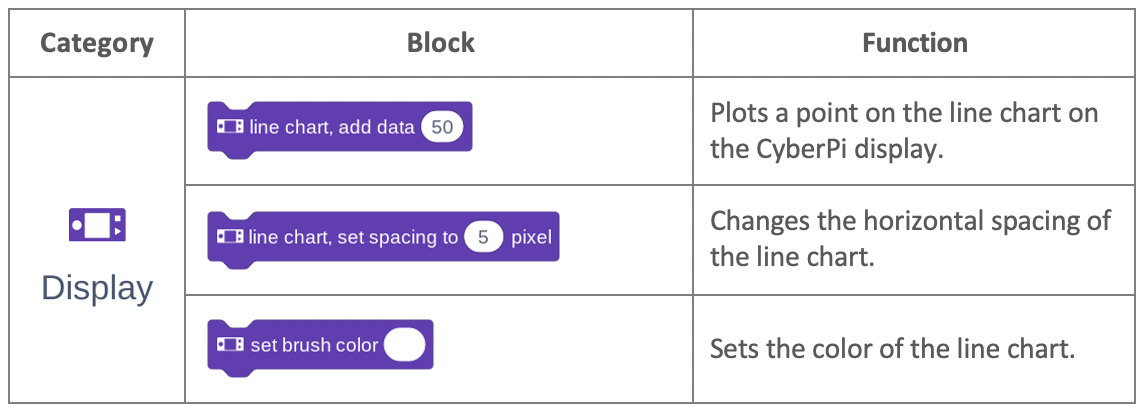

6. Introduce students to the blocks that are for creating a line chart on the CyberPi:

7. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

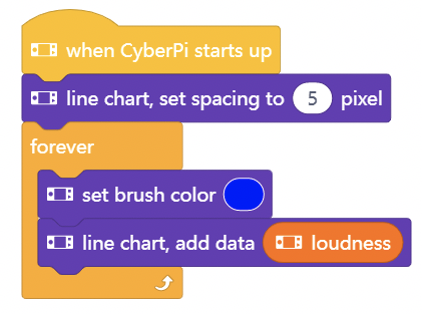

8. Instruct students to build the following script and test the program:

Try It

Charting the Light Sensor

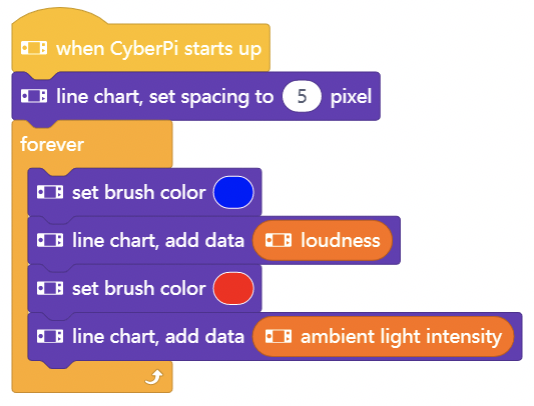

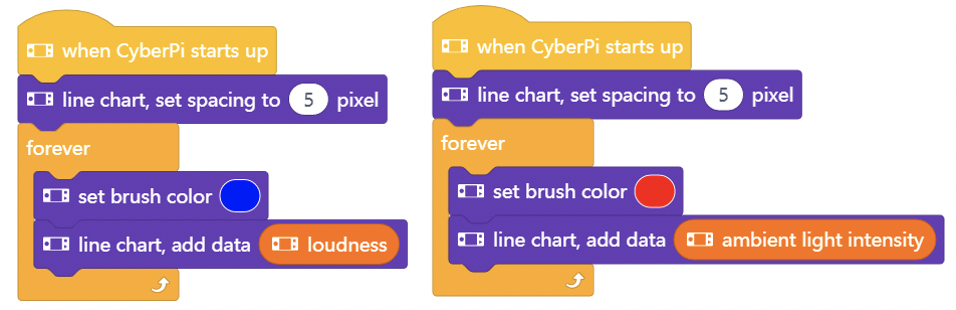

1. Challenge students to modify the code to include a red line chart for the light intensity. The CyberPi should show both charts at the same time.

2. Some solutions may, at first, appear to be correct. But encourage students to think critically and fully test their solution. For example, the following code does not properly graph the data. When testing this code, you should observe that speaking loudly by the CyberPi makes both the red and blue lines increase.

3. Encourage students to persevere through fixing or debugging their code until they get the correct solution. The following is a correct solution:

Extension

• Have students program the LEDs or speaker to react to the loudness or light intensity.

• Have students add a title and game instructions to the project.

• Have students program a sprite or background to change costumes based on the loudness or light intensity. (Note, a variable is required to store each sensor value.)

Wrap-Up & Quick Check

Documentation/ Commenting

When programming, it can be helpful to comment programs to make them easier for someone to follow, test and debug. Instruct students to use a comment(s) to explain how the code works. Emphasize the importance of commenting and how it helps developers working together. Ask students to make it a common practice.

Example Program

CSTA

• 2-AP-19: Document programs in order to make them easier to follow, test, and debug.
