CyberPi: Smart Notifier

Description

In this lesson students will define notifications for specific scenarios based on the features and requirements. Students will also program the smart notified to send notifications for specific scenarios.

Objectives

• Use CyberPi to measure light intensity and shaking status.

• Define notifications for specific scenarios based on features and requirements.

• Use mind maps to analyze how to create a smart notifier.

• Program a Smart Notifier which features multiple functions and modes.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 5 - Smart Notifier

For students:

• Proficiency in block-based coding

• Prior knowledge of CyperPi's major features

• Knowledge of variables

Warm Up

Objective:

• Guide students in thinking about their daily habits and how these habits impact their health. Have them consider using AI technologies to solve problems.

Procedures:

• Ask: The COVID-19 pandemic has provoked a global crisis that had a deep impact on our everyday life and learning. Schools are ordered to close, and people must stay at home. The pandemic makes us realize the importance of health. Think about it! Do you have any daily habits that may be bad for your health?

• Summarize: Not everyone cares enough about his or her health. Lots of people have some unhealthy habits, for instance, using phones while lying down, sitting, or standing with a curved back and slumped shoulders, and staying up late. In a tech-driven world, we could rely on modern technologies to track our health conditions. For example, we use wearables to count steps, and track our heart rates and sleep conditions through night.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Introduce students to some scenarios and have them think about how to design CyberPi to send notifications in these scenarios.

Procedures:

• Discuss: In school, we take lunch breaks to relax our body. But when at home, many of you will sit there for a long time, watching TV, playing video games or on their phones. We don't move quite often.  Sometimes you are just so into reading that you fail to notice the light intensity level. Can you think of any ways to solve these problems?

• Summarize: We can design a product to monitor people's conditions and give alerts. For example, if people sit too long, the product will remind them to stand up and relax their body; if it's dark, the product will remind them to turn on the lights.

• Introduce: We can use CyberPi to design a smart notification system which features 2 modes – Reading Mode and Sitting Mode. You can change the mode to let the system give specific notifications.

• Show students how the smart notification system works.

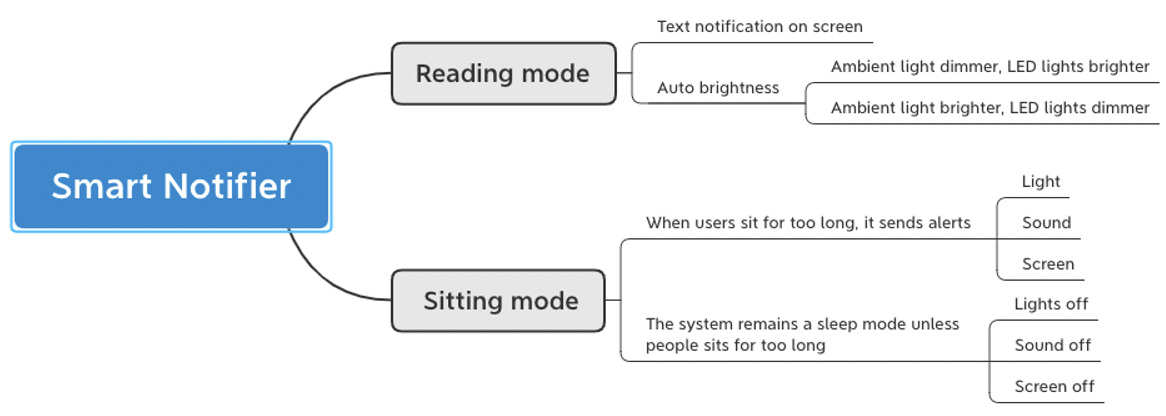

• Work with students to analyze what features their smart notifier must have and draw a mind map.

Try It

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

Procedures:

• Prepare a CyberPi, connect it to mBlock, and switch to Live mode.

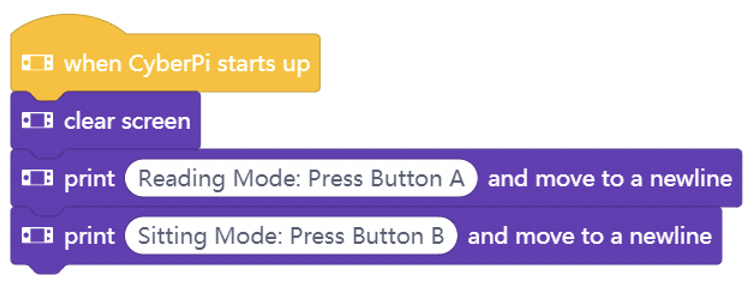

• Design the startup interface, prompting users to select a mode.

Reading mode:

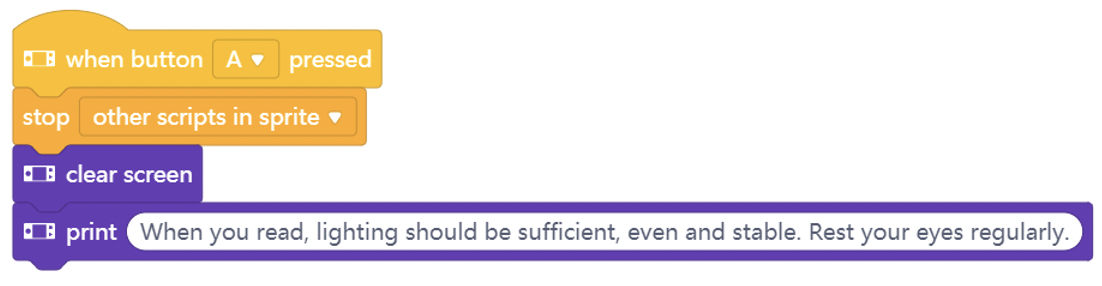

• Notification text on screen: The program for the other mode stops when one of the modes is selected.

Auto brightness:

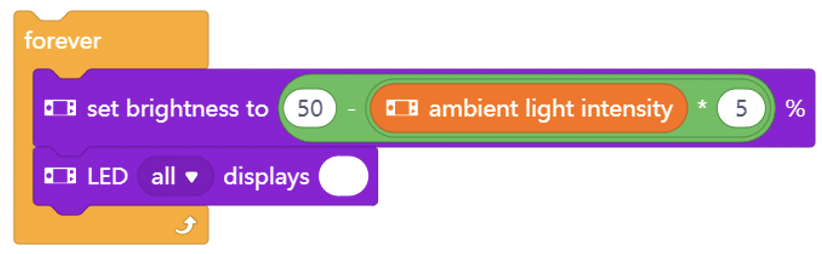

• Program the light sensor. Set the brightness of LED lights to 100 – ambient light intensity.  In this way, when the ambient light gets dimmer, the LED lights turn brighter; when the ambient light gets brighter, LED lights turn dimmer.

Sitting mode:

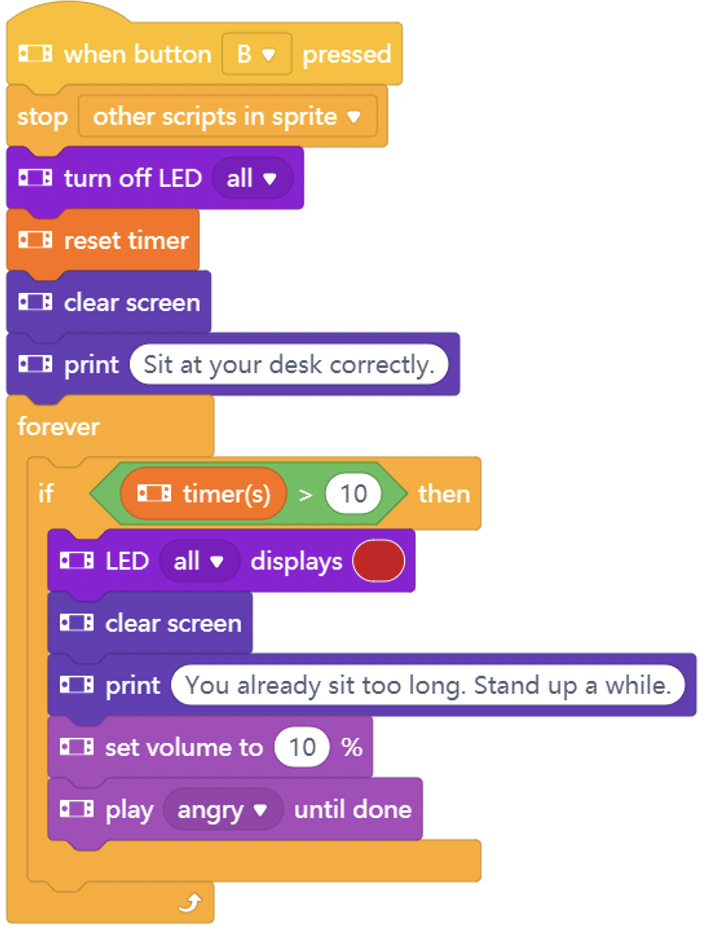

• When you sit too long, it sends alerts:

• The program for the other mode stops when one of the modes is selected.

• Options:  Lights, Sounds, Texts

• The system remains a sleep mode unless people sit too long.

• The system maintains a sleep mode unless people sit too long. Program the device to determine whether people are sitting there too long and check if the device if the device is being shaken.

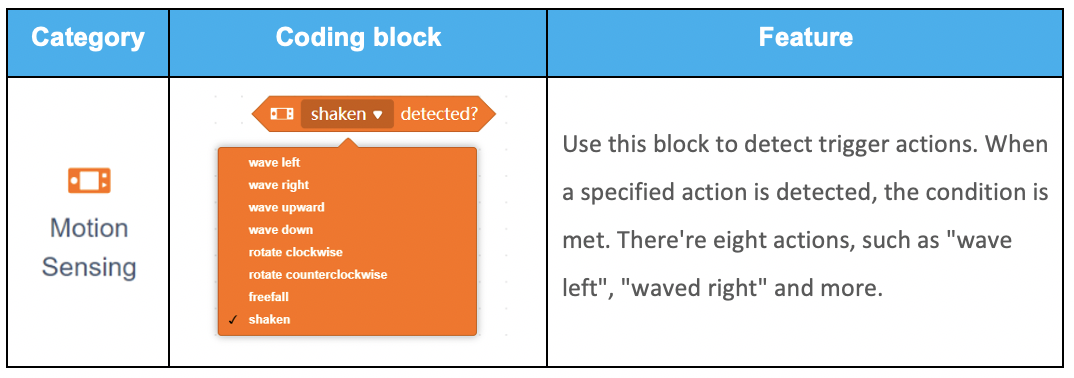

• Introduce the coding block in the table:

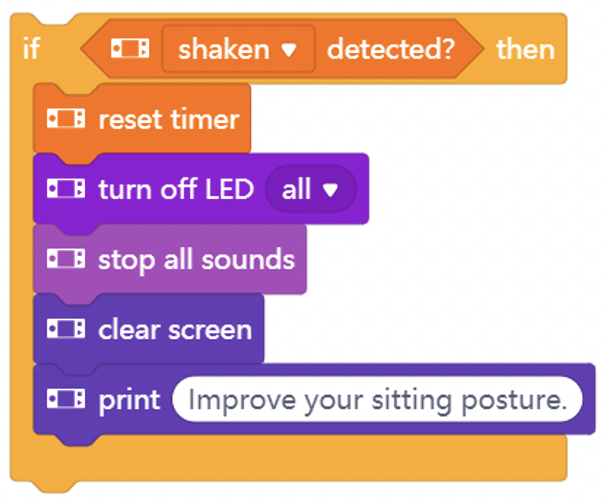

• The timer is reset once shaking is detected.

• Repeat this piece of code.

Extension

• Have students think of other features their Smart Notifier could have to help them develop healthy habits

• Have them add those features

• A possible mode they can add is one that makes the user shake the device several times to ensure they are exercising regularly

Wrap-Up & Quick Check

Objective:

• To enhance students' communication skills and understanding of their projects, ask them to share their projects in front of the class. In this way, students will be likely to pay more attention to their health.

Procedures:

• Invite 2 or 3 students to share their smart notifier in front of the class and have them explain what's special about their project.

• Have students discuss: Can you think of any other unhealthy habits? Can you think of any methods to improve your health?

Example Program
