CyberPi: Sound Machine

Description

In this lesson, students will create a disco party using the on-board LEDs and speaker. This program will use the CyberPi buttons to trigger events and run scripts. Students will also program a button to stop all sounds and lights, as well as a button to restart the CyberPi.

Objectives

• Identify CyberPi’s input(s) and output(s).

• Write pseudocode to plan and design a program in mBlock.

• Create a program in mBlock using the CyberPi buttons to trigger events.

• Select and use programming blocks to control the speaker and LED strip.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

• Example program(s) included in mBlock software

Warm Up

Input vs Output

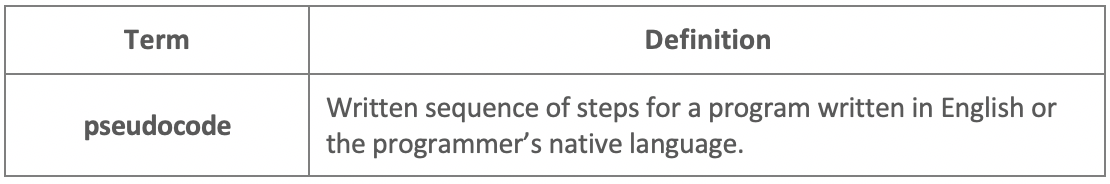

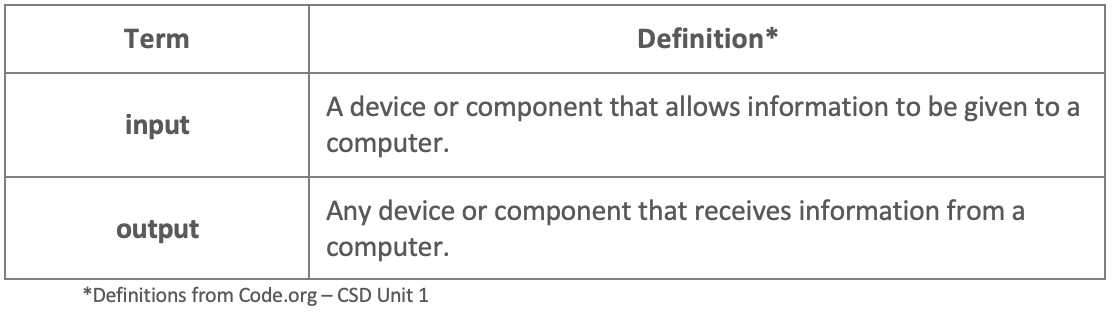

1. Discuss the following definitions with the students.

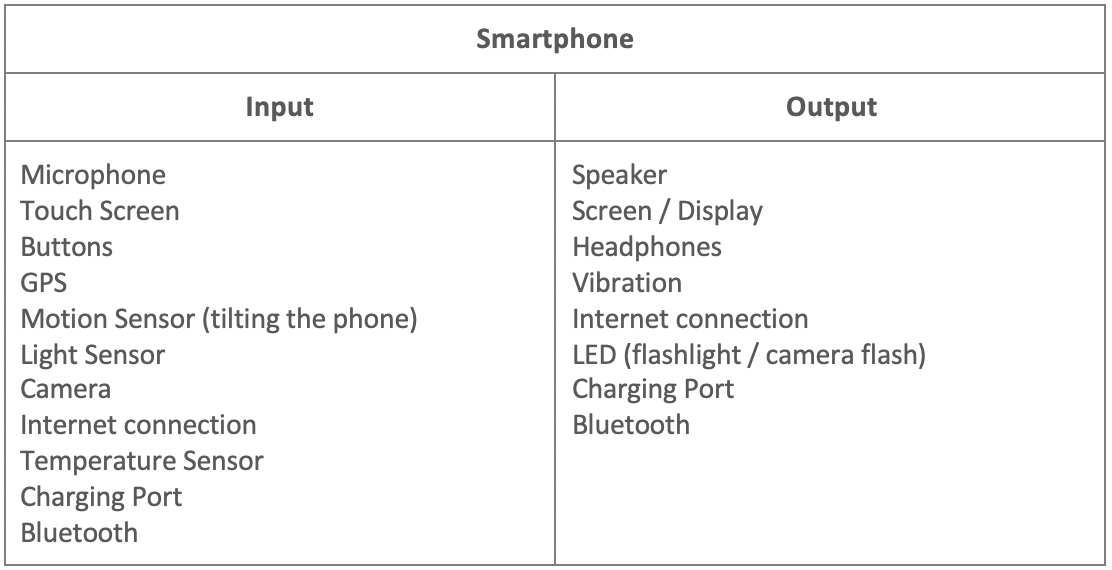

2. Using a smartphone as an example, have students work in pairs or small groups to create a list of the input and output for a mobile phone. Some examples may include:

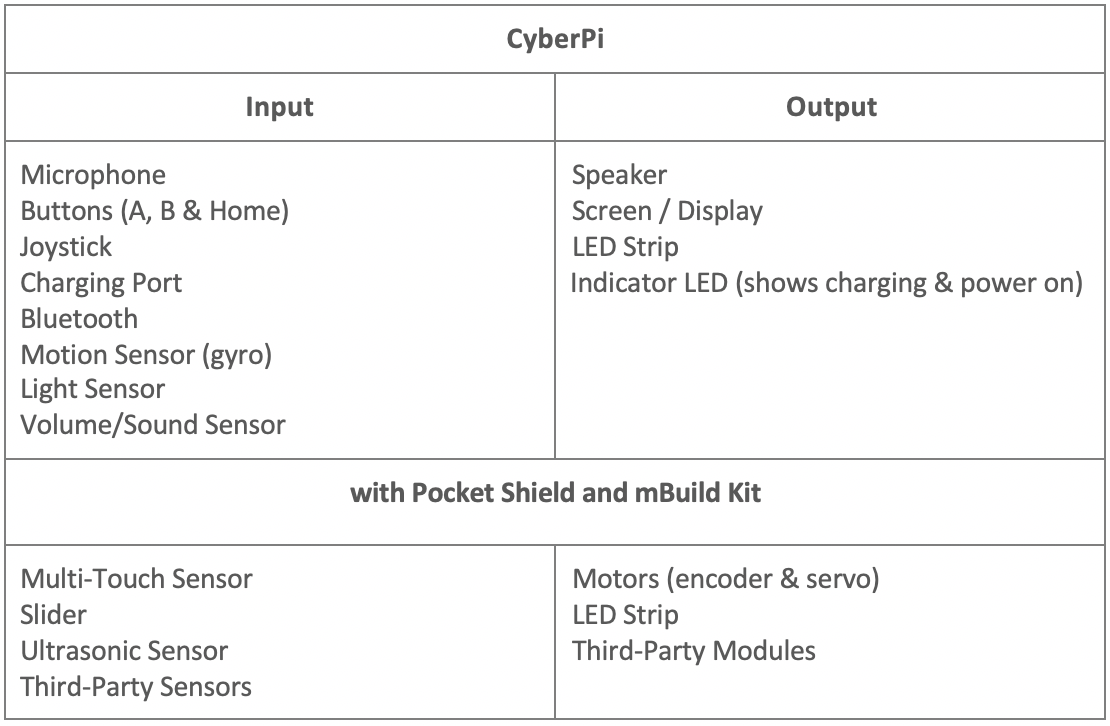

3. Have students reflect on Lesson 1 - Meet the CyberPi and create a list of the input and output for the CyberPi. Encourage students to refer back to the product documentation included with the CyberPi if they get stuck.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Plan a Program with Pseudocode

1. Discuss with the students the importance of planning a program before developing it in the software. Introduce student to pseudocode which can be a helpful tool for planning an mBlock project.

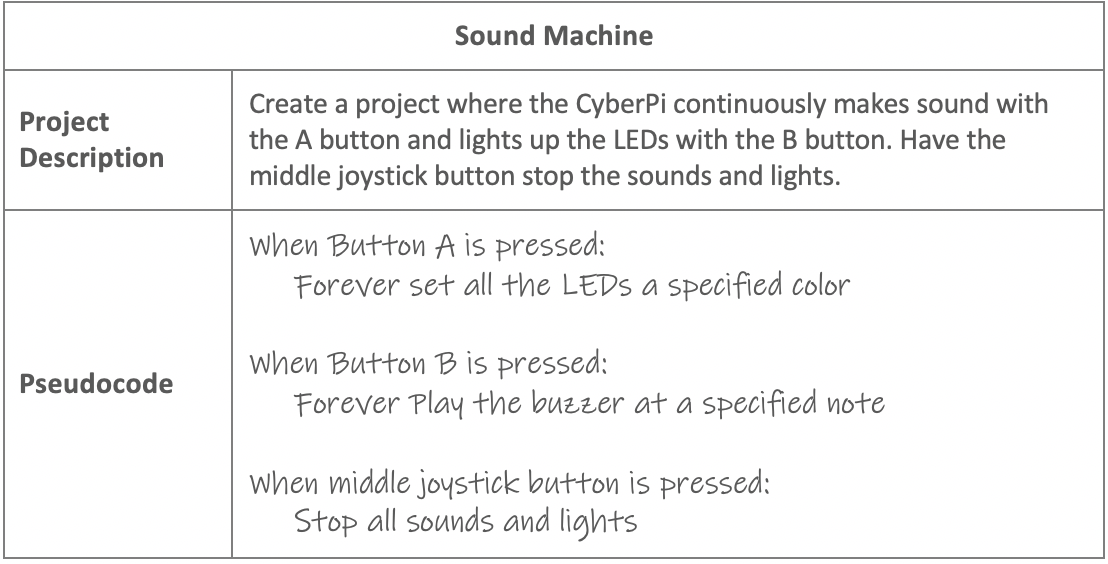

2. Using the following project description, guide students through writing the pseudocode for the project.

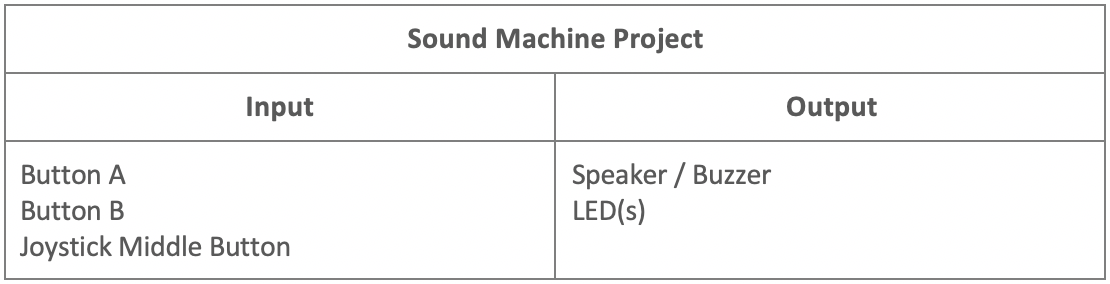

3. Have students examine the pseudocode above and identify the input and output for the program.

Write the Program

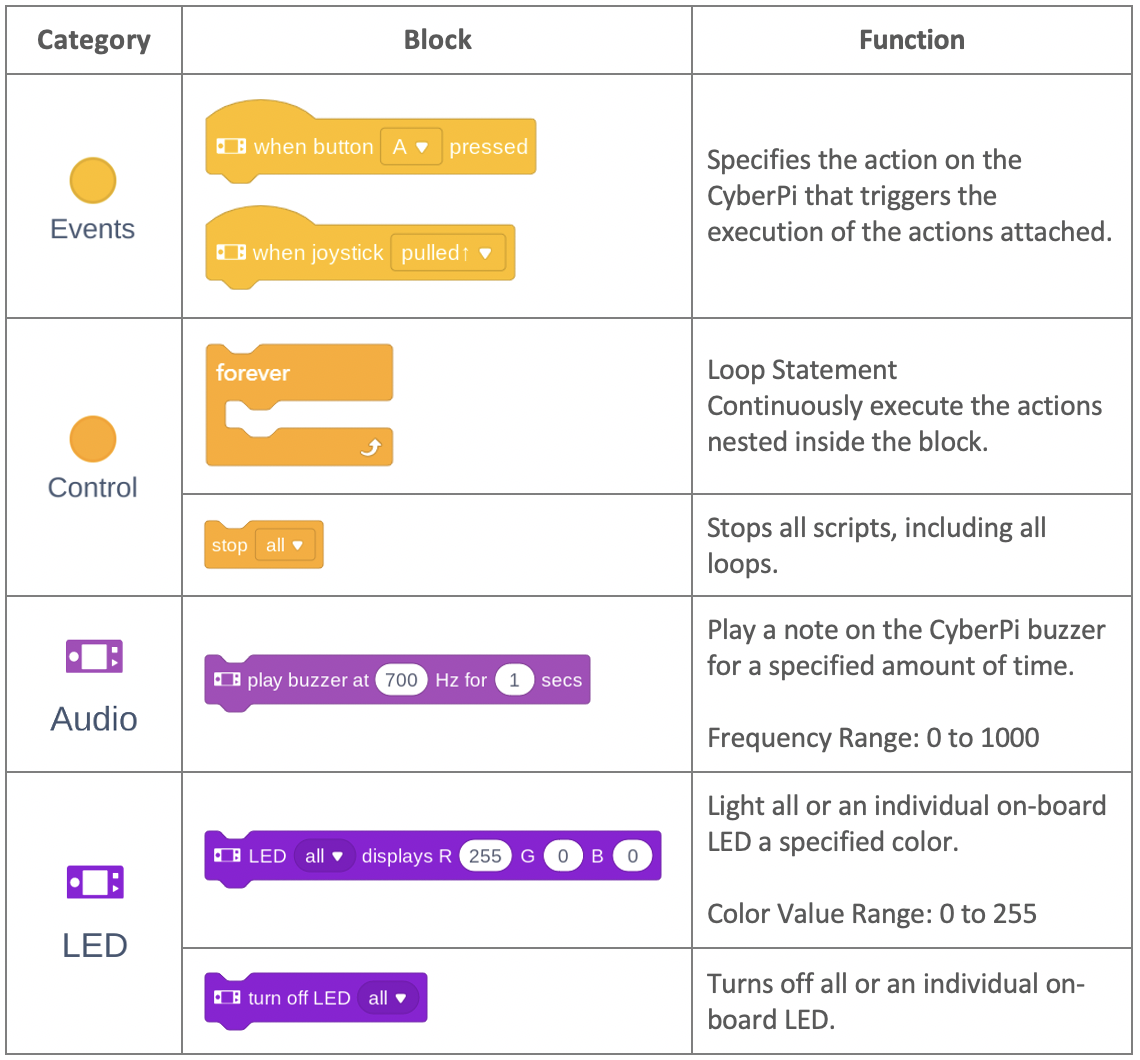

1. Now that the program is planned, it is time to learn about the new blocks needed to program the pseudocode.

2. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

3. Remind students how to drag-and-drop blocks from the color-coded categories in the Block Area. Instruct them to build each of the following scripts:

4. Test the program in Live mode and/or Upload mode.

5. Have students experiment with different values for the buzzer and LED blocks to observe how the CyberPi performs.

6. Extension: If time permits, teach students about RGB color values or allow them to use a color picker to identify the RGB values of specific colors.

Randomizing the Output

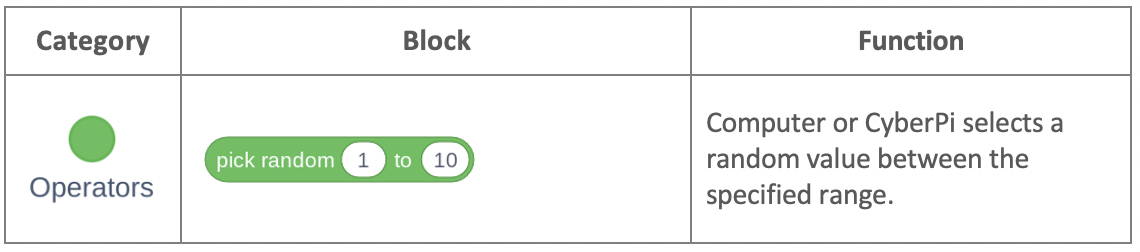

7. In the code above, a specific buzzer frequency and RGB color value were programmed in the code. The CyberPi is repeating the same sound and same LED color forever. The following block can be used to allow the program to select a random value each time the forever loop repeats.

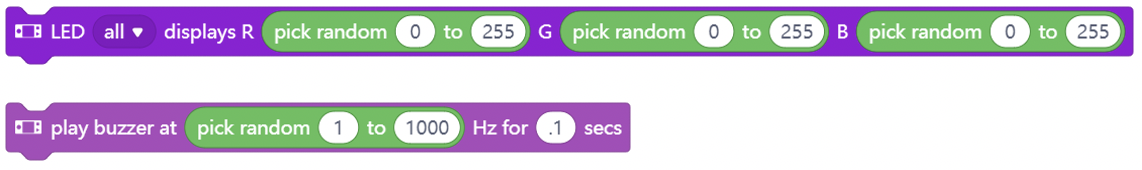

8. Modify the previous programs to include the following random blocks:

Note, these ranges correspond to the range of values accepted for each block.

9.   Have students test the new program. Note, students can change the seconds value in the play buzzer block to a decimal if they would like a faster buzzer sound.

Restart a CyberPi

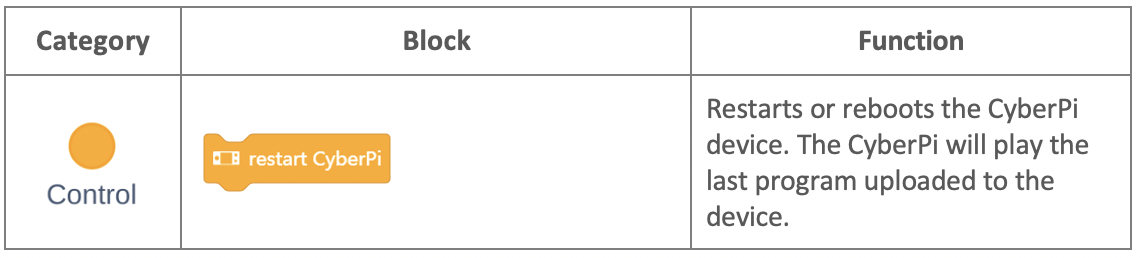

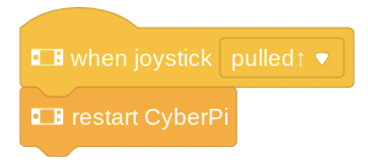

10. Programming a button to restart the CyberPi can be a helpful tool in upcoming lessons. So, guide students through programming a button to manually restart the CyberPi.

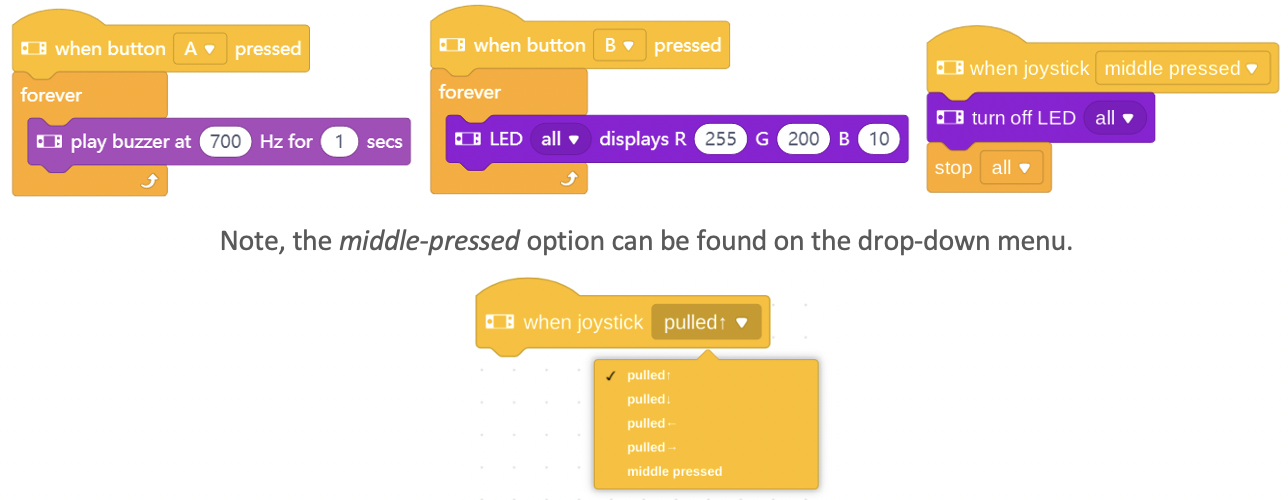

11. Instruct students to build the following script and test the program:

Try It

Create a Sound Machine

1. Provide students time to experiment with their existing code. Encourage them to try different values for the parameters in the blocks.

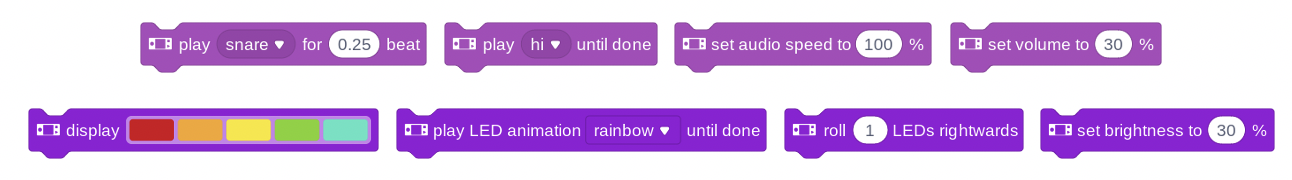

2. Challenge students to explore other blocks in the LED and Audio categories in the Block Area. Some blocks of interest may be:

3. Once they’ve explored the various blocks. Have students write pseudocode for an enhanced version of the Sound Machine project.

4. Have students create their project using their pseudocode as a guide.

Extension

• Program a stop button using the Repeat Until block with the



  block.

• Use the joystick buttons to program multiple different sounds and light shows.

Wrap-Up & Quick Check

Project Showcase

1. Group students into pairs and have students present their CyberPi Sound Machine to their partner.

2. Have students ask each other the following questions:

• What feature of your project are you most proud of?

• What was most challenging about this project?

Example Program
