CyberPi: Sound Recorder I

Description

In this lesson, students will transform the CyberPi into a pocket-sized audio recorder and playback device by combining the speaker, microphone and integrated storage. Through an iterative process, students will evaluate their projects and improve their sound recorders.

Objectives

• Create a program in mBlock that records and plays back audio.

• Follow an iterative process to develop a solution to a computing problem.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 3 – Sound Recorder 1 & CyberPi – Lesson 3 – Sound Recorder 2

Warm Up

Evolving Computing Solutions

1. Discuss with students how programming solves everyday, real-world problems. As a class, compile a list of computer solutions that students and their families come across on a daily basis. Some examples may include:

• Smartphone

• Alarm Clock

• Refrigerator Alarm

• Automobiles

• Public Transit

• GPS

• Microwave

• Weather Report

2. Discuss with students how programs have evolved over time.

Here is a specific example you may want to share:

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Make a Plan

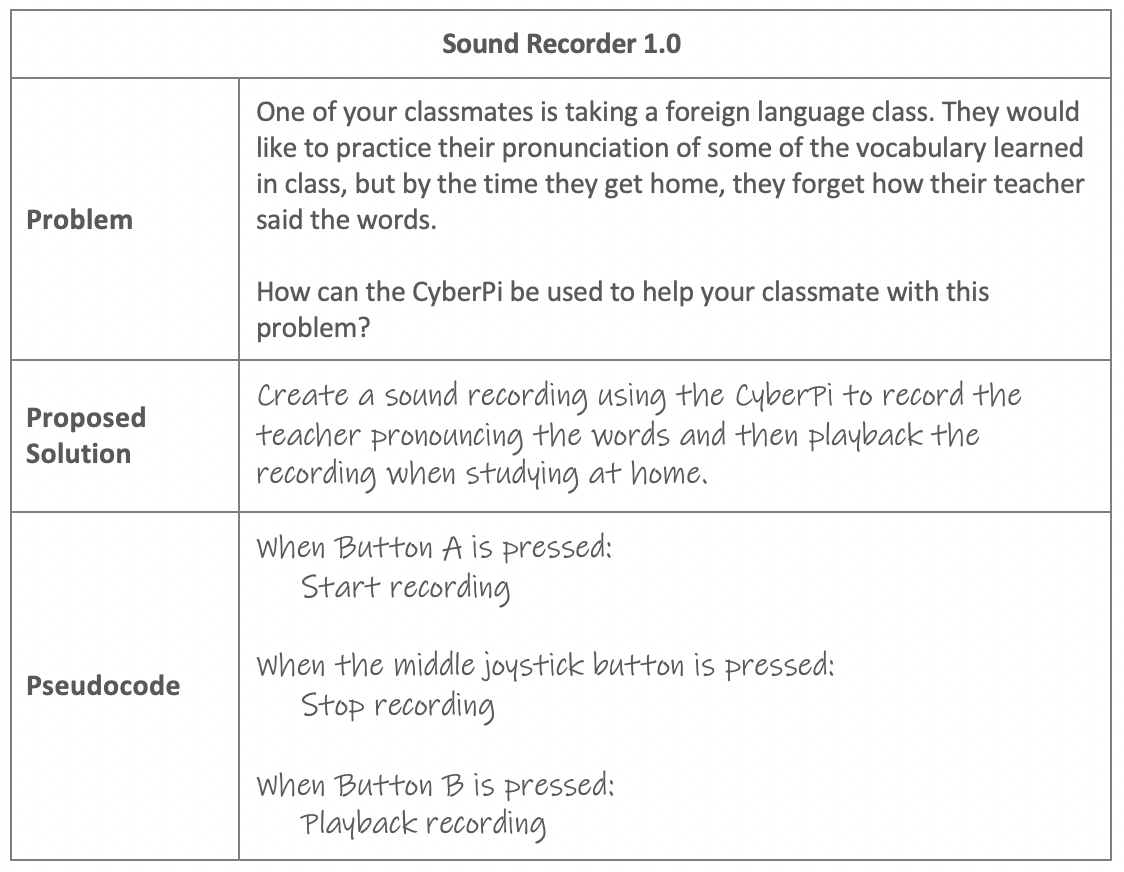

1. Using the following problem statement, guide students through planning a solution to the problem. A sample solution has been provided for you. Note, keep the initial solution very simple. This will allow for students to iterate and add features as they work on developing a feature-rich sound recorder.

Create Sound Recorder 1.0

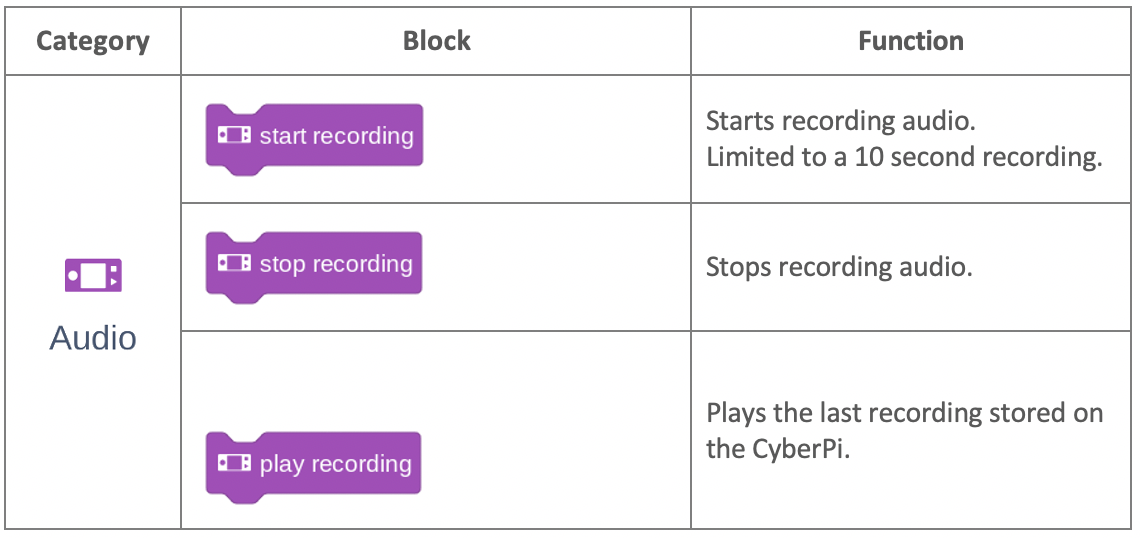

2. Now that the program is planned, it is time to learn about the new blocks needed to program the pseudocode.

3. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

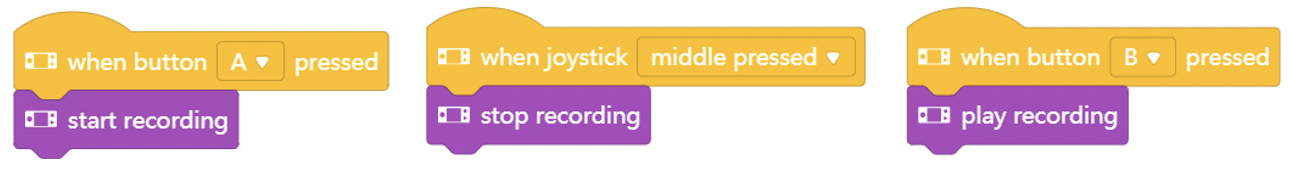

4. Remind students how to drag-and-drop blocks from the color-coded categories in the Block Area. Instruct students to build the following scripts and test the program:

5. Ask students if the device is ready to give to the classmate to use in their foreign language class. Many students will begin to identify areas of improvement for this design. Have students brainstorm and create a list of ways to improve this basic sound recording device. If students need additional guidance, consider asking the following questions:

• How will your classmate know how to use the CyberPi Sound Recorder?

• How will your classmate know if the CyberPi is recording?

• What other features could be useful for your classmate?

• What other components of the CyberPi can be used to create a more feature-rich solution? (i.e., display, LED strip, speaker, motion sensor)

Try It

Plan and Create Sound Recorder 2.0

1. Explain to students that programmers and software developers improve upon their solutions often. (Note, this is why software apps have updates and redesigns.) Software development is an iterative process.

2. Using the list of improvements, they created in the previous section, have students identify the three most important features they would like to add to the Sound Recorder program.

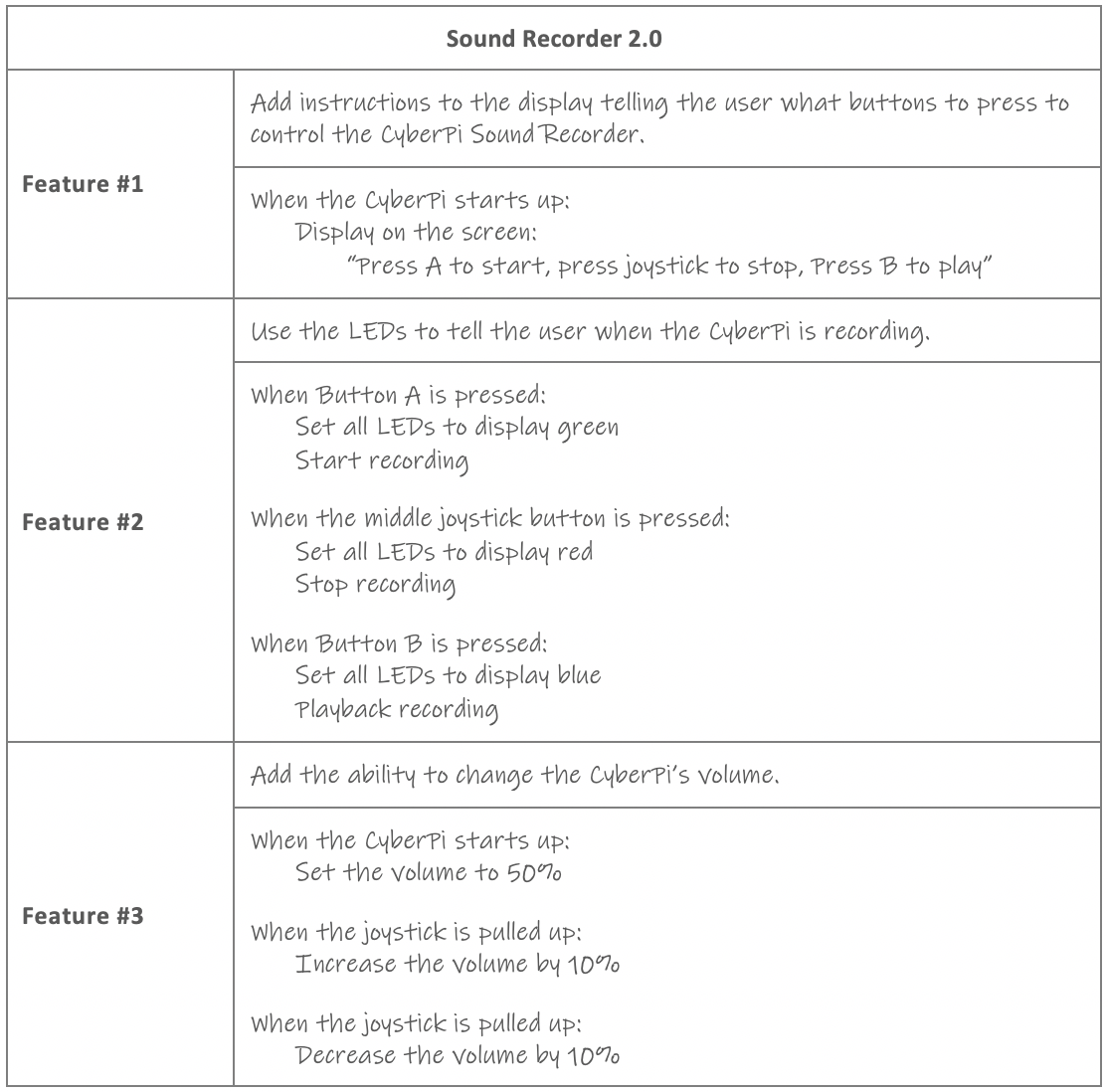

3. Have students describe and justify the features they will be adding. Then, have students write the pseudocode for each feature. A sample plan is provided below:

Note, there are two example programs included with this lesson. These should be for the teacher to review. Students should be encouraged to brainstorm and create a program from their own ideas.

4. Have students create the Sound Recorder 2.0 using their pseudocode as a guide. Require that they implement one of the features from the list they created.

Extension

• Have students explore UX Design (User Experience Design) and the role it plays in software development. This includes how practical, valuable, and easy it is to use.

• Have students research accessibility and usability with software development.

Wrap-Up & Quick Check

Summarize

1. Have students share a few of the ideas they incorporated into their sound records.

2. Remind students that the next activity will have them continue developing the Sound Recorder project through an iterative process.

Example Program
