CyberPi: Strength Meter

Description

In this lesson, students will create a fun game with the CyberPi where the player shakes the CyberPi for ten seconds. The students will program the game to keep score of how many times the shaking strength is greater than 50.

Objectives

• Write a program in mBlock that keeps score.

• Write a program that executes actions for a specified amount of time.

• Display text on the CyberPi display.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• CyberPi with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 8 – Strength Meter

Warm-Up

Variable Review

Review variables with the class and explain how variables can be used to keep track of a score in an mBlock project. Review with students how to create a variable, set a variable and change a variable in mBlock.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands-On

Detecting Strength

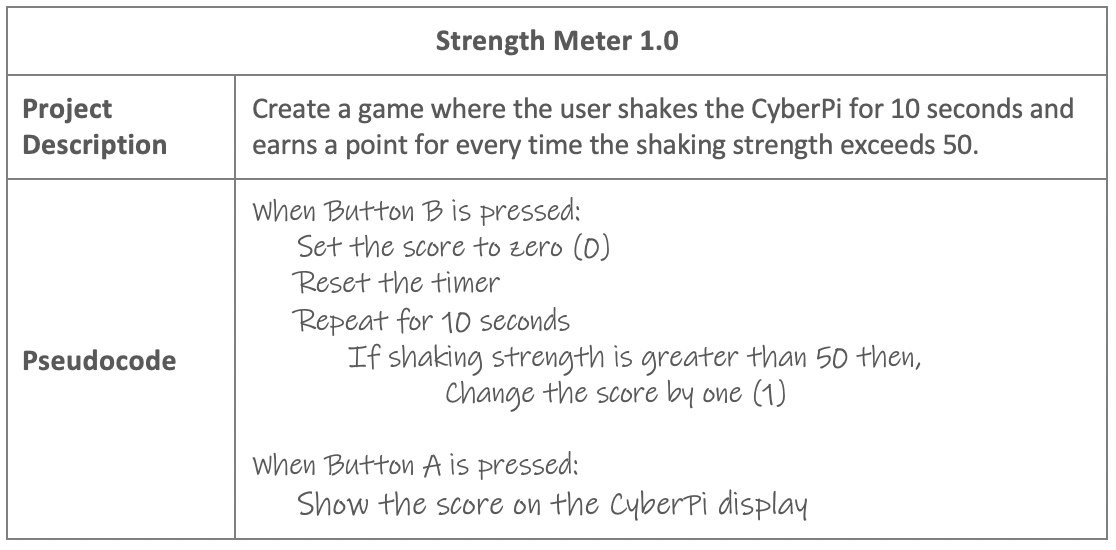

1. Review the following challenge and pseudocode with the students:

2. Open the mBlock 5 software or mBlock 5 Web version. Add the CyberPi in the Devices tab and connect in Live mode.

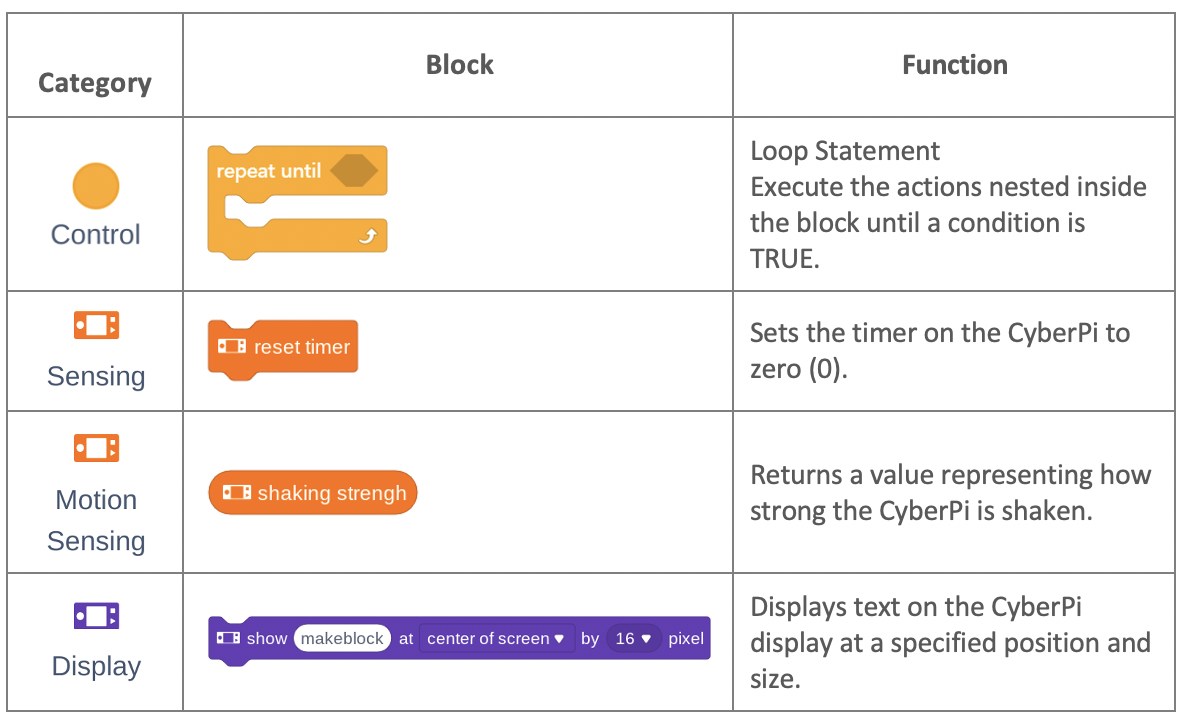

3. Introduce students to the following new blocks:

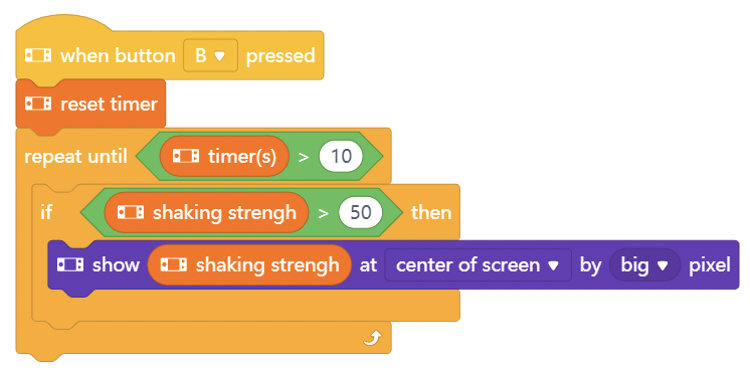

4. Instruct students to build the following scripts and test the program to observe the shaking strength values:

Keeping Score

5. Make a variable named score and leave For all sprites selected.

6. Instruct students to add the following scripts to the program:

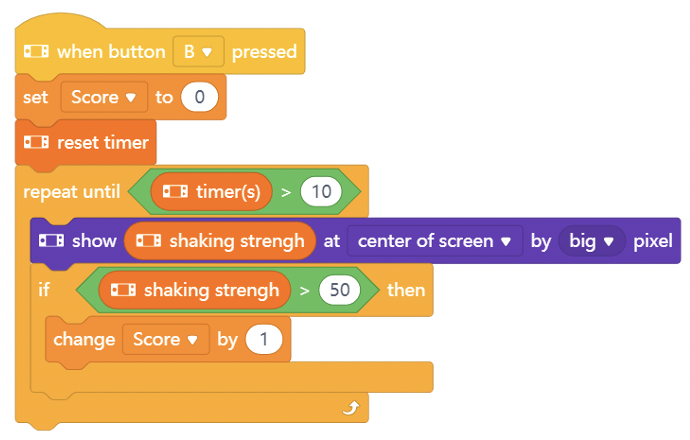

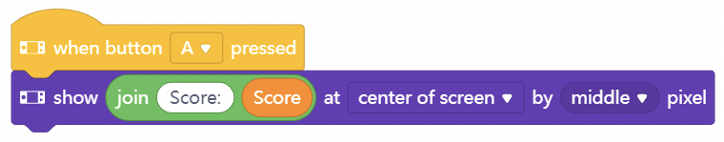

7. Now that the CyberPi is keeping track of the score, add the following scripts to display the score on the screen with button A is pressed:

8. Have students play the game and see how many points they can earn.

Try It

Creating Strength Meter 2.0

1. With a simple version of a Strength Meter game created, there are many improvements that can be added to the program. Have students identify areas of improvement for this design. Some ideas for improvement include:

• Use the LED Strip to inform the user when the game is running.

• Add a sound effect each time a point is earned.

• Add a sound effect when time runs out.

• Add a title and instructions.

• Use the joystick and a variable to change the difficulty of the game (i.e., shaking strength for easy is 30, medium is 50 and hard is 70).

2. Have students develop a plan and pseudocode for the improvements they would like to add to their project.

3. Have students create the Strength Meter 2.0 using their pseudocode as a guide.

Extension

• Have students program the LEDs to progressively light up based on the strength (see example).

• Have students program a 2-player game where it tracks a score for both players, compares the scores and declares a winner.

Wrap-Up & Quick Check

Motion Sensing

The CyberPi has a 3-axis gyroscope and a 3-axis accelerometer which detects motion, acceleration and vibration. The shaking strength block uses this component to determine how strong the CyberPi is being shaken. Have students brainstorm a list of devices they use that use a gyroscope. Some examples may include:

• Mobile phones change the screen orientation based on device rotation.

• Screens on mobile phones light up when the device is picked up.

• Video game controllers detect motion.

• Robotic vacuums detect if they have fallen or tipped over.

Example Program
