CyberPi: Voice Reactive Lights

Description

In this lesson, students will create a code to change the lighting effects based on sound levels. They’ll use this information to display bar charts on the screen as well.

Objectives

• Display a bar chart on the screen.

• Change lighting effects and bar chart based on the sound levels.

• Use mind maps to analyze how to complete a project.

• Write programs to complete the Voice Reactive Lights project.

Preparation

For the teacher and students:

• Computer with mBlock 5 installed from here: https://www.mblock.cc/en/download/ or mBlock Web version

• Wi-Fi connection to student devices for IoT connectivity

• One CyberPi’s with USB-C cable

• Pocket shield (optional)

Example program(s): CyberPi – Lesson 2 - Voice Reactive Lights

For students:

• Proficiency in block-based coding

• How to collect data with CyberPi's sensors

Warm Up

Objective:

• Show pictures and play videos to demonstrate how to apply lights and sounds in a show.

Procedures:

• Have students search for and compare traditional fountains and musical fountains.

• Have students answer the questions: Which type of fountains do you like? Why?

Introduce the working principles and characteristics of musical fountains:

• Music, lights, and fountain are programmed to react to each other.

• The lights and fountain are programmed to react to the music

• Have students answer the question: How do the music, fountain, and lighting fit together?

Conclude the following:

• Louder music means ① lights in a darker color, ② higher spout, and ③ faster changes in shapes.

• Softer music means ① lights in a lighter color, ② lower spout, and ③ slower changes in shape.

Tour of mBlock 5

1. Open the mBlock software or mBlock 5 Web version.

2. Introduce students to the following key areas of the software interface:

Connect the CyberPi

3. Plug the CyberPi into the computer using the included cable. The CyberPi should boot up and the screen will display either the last program uploaded or the Home menu.

4. On the "Devices" tab in mBlock, click the "Add" button. Select CyberPi and click "Ok".

5. Click the "Connect" button. Then, select the USB port and click "Connect".

6. If connected successfully, the button will change to "Disconnect".

Hands On

Objective:

• Focus on the interaction between sound, light, and fountain, and prepare students for the Elaborate section.

Procedures:

• Tell students: Though we can’t make musical fountains, we can use CyberPi to make Voice Reactive Lights.

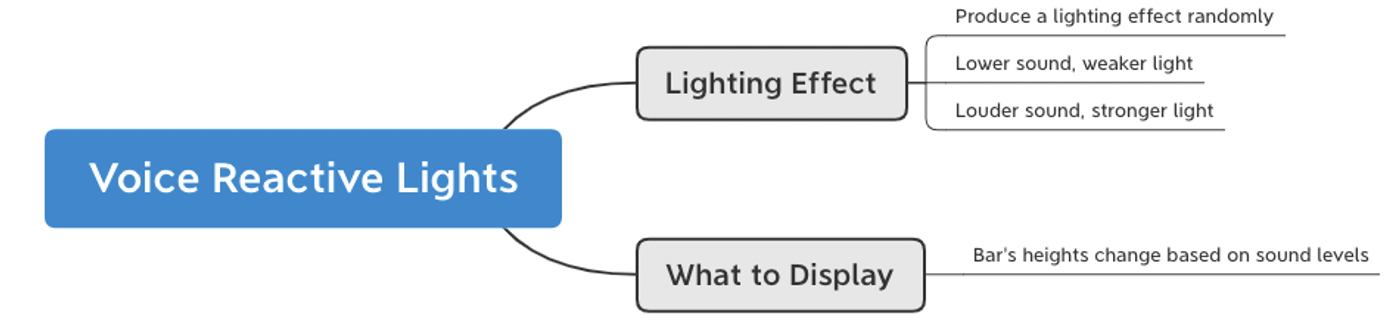

• Analyze with the students what features the project has and draw a mind map.

Try It

Objective:

• Give students the freedom to explore further so that they can enhance their programming skills.

Procedures:

• Remind students that they need to connect the device to the computer and select Upload mode.

• Recap what hardware components CyberPi has and demonstrate how to detect sound level with the sound sensor.

• Design lighting effects:

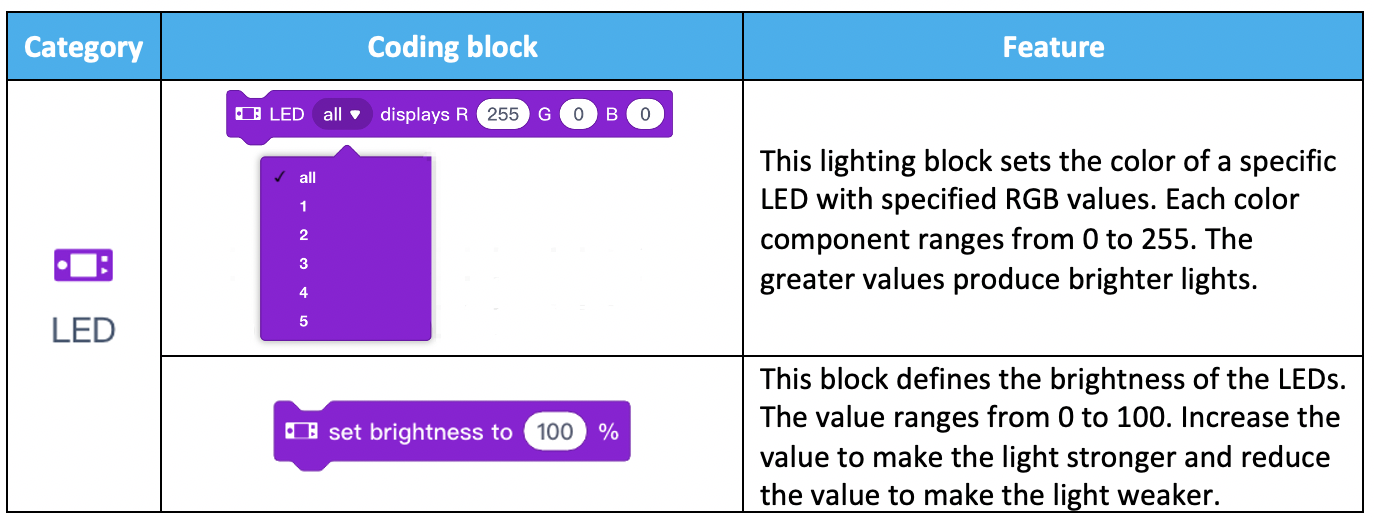

Tell students: To change the lighting effects, we need these coding blocks.

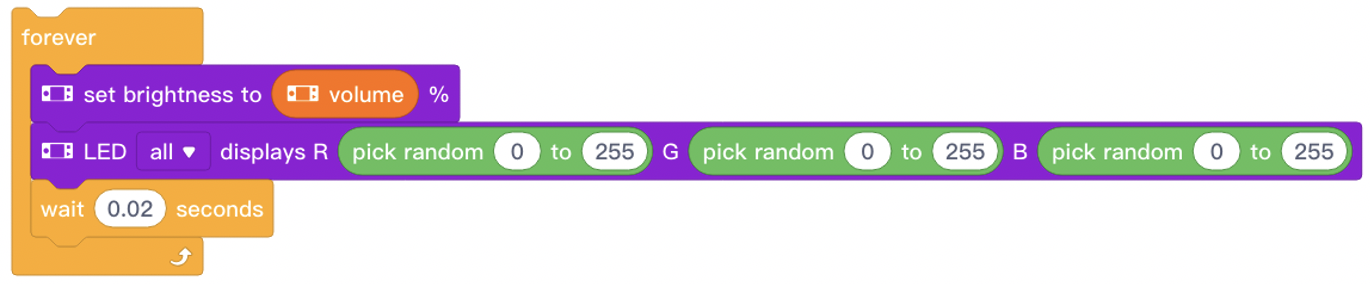

Say: We’ve learned that we could use the volume to decide the lighting and other effects. So, why don’t we try using the sound sensor to detect the sound level?

NOTE:

1. To have lighting effects randomly produced, use pick random ( ) to ( ) to set the RGB values.

2. To ensure a seamless transition between different light effects, use wait ( ) seconds.(Instruct students to include the wait block in the program, then remove it, and compare the results.)

3. The lighting starts changing as soon as the program runs.

Design what to display on the screen:

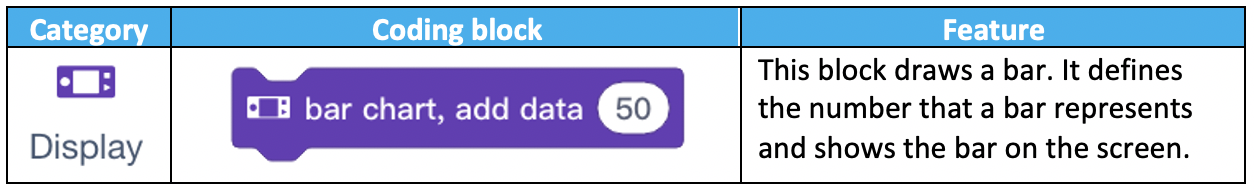

• Use chart-related blocks to show the sound levels on the display.

NOTE:

1. To draw more bars, use more  blocks.

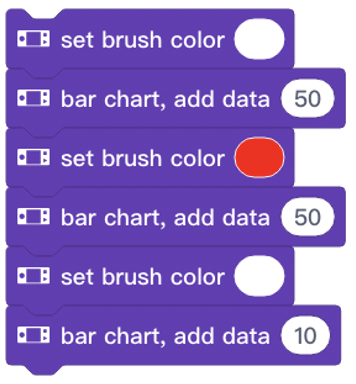

2. Use different colors to distinguish bars. If you set different bars to the same color, then all the data will be shown in the same bar. Look at the script below:

• If we run the script above, a white bar and a red bar appear on the display. Every time this script is run, the white bar goes up to 50 first then falls to 10 while the red bar stays at 50 all the time.

• To make volume bars with different heights, collect volume data at specific intervals.

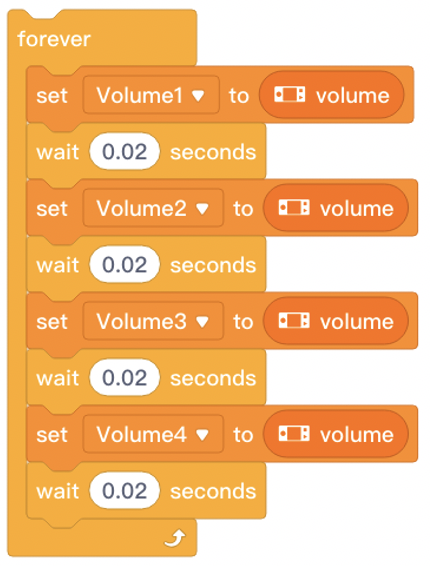

To collect volume data, write the script below:

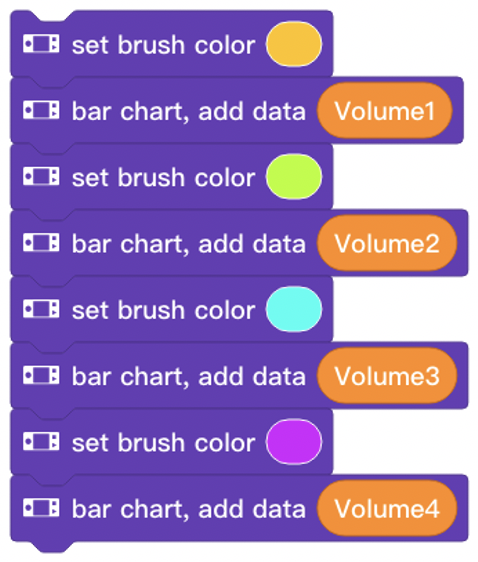

To continuously display sound levels, write a script as shown:

NOTE:

1. Instruct the students to do the following:

• make a volume bar

• make two bars with the same height

• use variables to make bars with different heights

• make four volume bars with different heights

2. To make the volume bars more dynamic, keep the intervals short.

3. CyberPi starts drawing bars as soon as the scripts are executed. So, the lighting effect script and volume bar script should both start with the same Event block.

Extension

• Have students test their program by playing their favourite song and observing the graph changing

• Have students use the line chart blocks instead of the bar chart blocks

Wrap-Up & Quick Check

Objective:

• Play some music and invite students to present their projects.

Procedures:

• Play music and invite students to present their projects.

• Divide students into groups and have them present the projects to their group members.

• Invite volunteers to present their projects in front of the whole class.

Example Program
