Cue robots (1 per pair)
tablets or compatible devices (1 per pair)
any stationary object heavier than Cue (e.g., chair, retort stand; 1 per pair)
3 pieces of cut string, approx. 50 cm, 100 cm, and 150 cm long (1 set per pair)
spring scales (1 per pair)
Building Brick Connectors (2 per group)
LEGO bricks (2 per group)
Variables Affecting Gravity worksheet (1 per pair)
Before this lesson, it is recommended that students:
Have a basic understanding of gravity and its effect on objects on earth.
Practice programming loops and events in the Cue app.
Fully charge the devices and robots.
Install the Wonder Workshop Cue app on each device.
1. Say, “A force is a push or a pull. For example, in a game of tug of war, when two teams are pulling against each other.”
2. Ask, “What force holds the solar system together?” (Sample response: “The solar system is held together by gravity.”)
Ask, “What is gravity?” (Sample response: “Gravity is the force experienced between any two objects made of matter.”)
3. Discuss what variables affect gravity. Encourage students to provide examples from their daily life. (Sample response: “Gravity is affected by mass. For example, a bowling ball makes a louder thud than a baseball when it gets dropped on the floor.”)
Watch this video about Gravity and Planetary Motion explaining how distance and mass both affect the force of gravity.
Reinforce that both distance and mass are variables that affect gravity.
Say, “A portion of code can be repeated multiple times by using a loop. A while loop checks a condition before executing code each time. A repeat block repeats code a set number of times.”
Ask, “What are some reasons the robot might break out of a loop?” (Sample response: “The robot may sense something in its path or complete the action as many times as was required.”)
Explain the goal of the lesson: Say, “Today, you will program Cue to be like a satellite orbiting a planet. Cue is affected by gravity, which will be represented as a string tied between the satellite and the planet. We will use this model to see what variables affect gravity.”
1. Say, “The force of gravity is proportional to mass and inversely proportional to distance squared. This means that as the distance gets larger, the force of gravity gets smaller, and as the mass gets larger, the force gets larger.”
2. Say, “The solar system appears to have formed from a disk of dust and gas, drawn together by gravity.”
3. Project the following NASA infographic and discuss how gravity played a role in distinct stages during the formation of the solar system:
Pulling together a cloud of gas and dust. After an explosion of a nearby star in the solar system, a cloud of gas and dust began to spin and collapse together.
Nuclear fusion of hydrogen into helium. Particles of hydrogen were fused together into helium atoms.
Formation of planets. Some particles formed clumps that got bigger as more clumps fused together. These eventually formed planets and moons.
4. Have students form pairs.
Distribute robots, devices, chairs (or other heavy objects), spring scales, and strings.
Instruct the students to take the smallest of the three strings and tie one end around Cue and the other around the spring scale. The spring scale should then be attached to the chair.
Say, “The chair is much heavier than Cue and will act as a planet. Cue will act as a satellite orbiting around the planet. The string will act as gravity between the satellite and the planet. The spring scale will be used to measure the force of tension in the string, or in other words, the force of gravity.”
5. Say, “The objective is to build a program that realistically makes our ‘satellite’ orbit our ‘planet.’”
Discuss why loops and events could be helpful in students’ programs.
Say, “A loop repeats similar motions in succession. For example, a satellite that is orbiting around earth will have a continuous circular trajectory. This can be achieved using multiple move blocks in a loop.”
Say, “An event can sense objects in front of Cue and take immediate action. For example, a satellite may encounter an obstacle and take action to avoid it.”
6. Project your device’s screen and open the Cue app.
Select the Code with Block & JavaScriptⓇ section.
Ask, “What are some blocks that could be looped to make Cue move around the Earth in the desired motion?” (Sample response: “Move distance, turn angle, and set wheel speed blocks.”)
Have students help you program. Test different shapes of orbits and the effect they have on the force read on the spring scale.

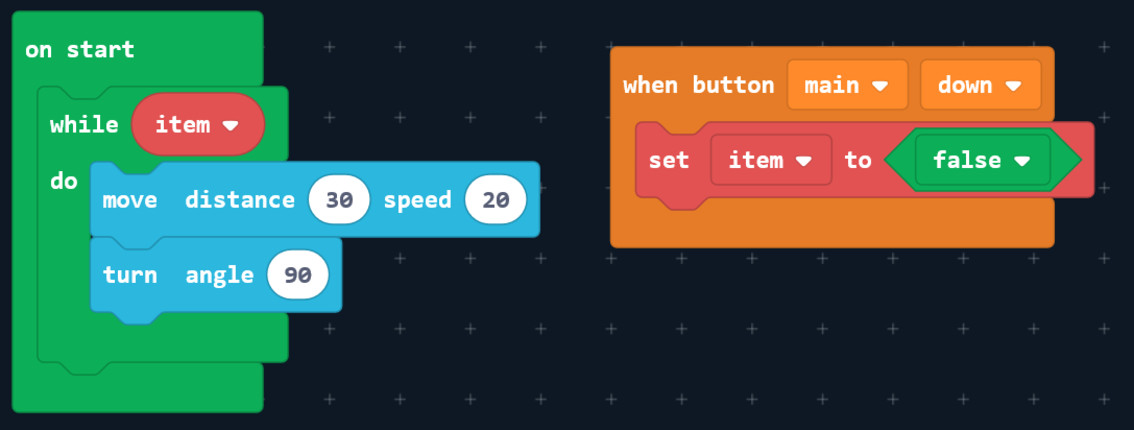

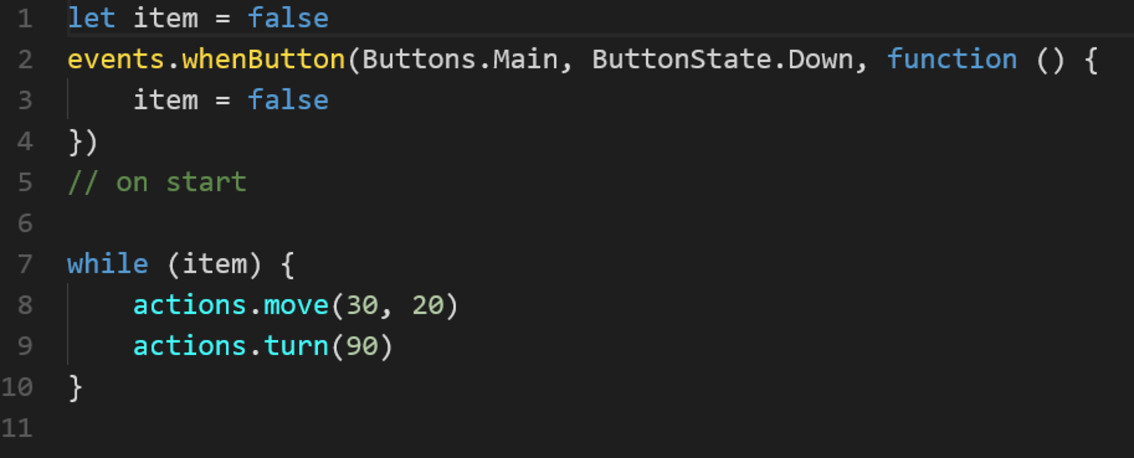

Sample Program:
7. Test and run your program.
Ask, “What variables can be changed in the code above?” (Sample response: “We can change the distance and speed of each side, as well as the turn angle.”)
Fix and retest.
Stress the importance of testing, fixing, and retesting.
How will you program loops in your program? (Sample response: “We will program loops to repeat the rotation of the satellite, Cue, around the planet.”)
How will you use events in your program? (Sample response: “We will program event blocks to avoid other obstacles that the satellite may encounter.”)
1. Give each pair as Variables Affecting Gravity worksheet and two Building Brick Connectors.
2. Say, “We will observe how both distance and mass change the force of gravity. The distance will be changed by the distance of the string. The mass will be adjusted by adding LEGO bricks.”
3. Once the students have created programs for a clear orbit, encourage them to change each of the variables mentioned above and record the force shown on the spring scale in the appropriate boxes on their worksheet.
Have students change the distance by using strings of different lengths.
Have students change the mass by attaching one and then two LEGO bricks to Cue.
4. Guide each group to make conclusions about how mass and distance affect the role of gravity in this model. Also discuss the limitations of this model.
Ask, “What happens to the force of gravity as the distance increases?” (Sample response: “The force of gravity decreases.”)
Ask, “What happens to the force of gravity as the mass increases?” (Sample response: “The force of gravity increases.”)
Have students program their robots to avoid obstacles in the orbit’s path using event blocks.
What two factors affect gravity and what is the relationship between those factors?
Did this model accurately convey the role of gravity between two objects? Why or why not?
How could the model be improved?
Use our Evaluation Rubric to review students’ work and presentations.
[Optional] Share your students’ work with the world using @logicsacademy and #Cue
