Cue
Cue robots (1 per group)
tablets or compatible devices (1 per group)
Computing Process Slides
markers
pencils
projector or interactive display with mirroring capability
Before this lesson, it is recommended that students:
Complete all previous lessons in Unit 1.
Fully charge the devices and robots.
Install the Wonder Workshop Cue app on each device.
Prepare a demo device with the Wonder Workshop Cue app by:
logging into the app.
completing the Sense challenges in the Code with Block & JavaScript Challenges/Adventures section.
1. Project the first page of the Design Thinking Process Slides.
Have students volunteer to summarize each step in the process.
Encourage students to discuss how each stage is affected by the target audience.
2. Ask, “In your creative writing project, how did you use the Design Thinking Process to help you define your project?”
Sample response: “We used the Understand step to pick a project that worked for our audience. At first, we wanted our topic to be global warming. However, we wanted our audience to be young children, and we realized that might be difficult for them to understand. Therefore, we changed our topic to be about reducing, reusing, and recycling, which we thought would be more accessible to a very young audience.”
3. Ask, “How did you use the robot’s movements, lights, and sounds to help you express your ideas?”
Sample response: “Our group used lights and sounds to reflect the mood of the robot during a particular part of our music video. We wanted to convey happiness, so we used a lot of warm colors.”
1. Ask, “How do our senses affect our actions? For example, when you touch a hot stove, what is the typical response?”
Sample response: “When I touch something really hot, it hurts, so I might yell and quickly pull away my hand.”
Say, “Humans receive sensory input, integrate this input in their brains, and send a motor output to our limbs. This cycle is similar to how robots process and respond to sensory input.”
2. Project the Computing Process Slides.
3. On the first two slides, review Cue’s sensors: (1) 3 microphones, (2) proximity sensors, (3) processors and sensor fusion, and (4) encoders.
Show students the third slide and explain how these sensors are the first component in the Perception-Computation-Action cycle.
4. Divide the class up into groups of three.
Say, “Each group will be required to complete a set of tasks. Each member of your group will act out a stage of the Perception-Computation-Action cycle.”
Explain that the student acting out the Perception stage is the sensor, the student acting out the Computation stage is the computer, and the student acting out the Action stage is the motor.
5. Give the students prompts. Have the Perception member write down what to do, the Computation member deliver the message to the Action member, and the Action member complete the action.
Sample prompt, “Lift up your left leg and your right arm.”
Give a point to the group that completes the action first.
6. Ask, “What were some difficulties that arose as you tried to complete the prompt? How are these difficulties related to real computing systems found in Cue?”
Sample response: “Sometimes the message would be misinterpreted from the sensor to the motor. This may happen in a real robot if data is too large.”
[Optional] Start a discussion about the way sensors read data. For example, binary outputs from light sensors (a zero or a one) can be sent and misinterpreted if more than two inputs are needed. Explain how the computing system often has to process the data from a sensor and rewrite it in a different way to the effector.
What part of Cue collects data from its environment? (Sample response: “Sensors.”)
Name some of the types of sensors on Cue. (Sample response: "Proximity sensors and microphones.”)
Describe the Perception-Computation-Action cycle in the human body. (Sample response: “In the human body, input comes from the senses, which travels to the brain. The brain then acts as a computing system to send signals to motor outputs.”)
1. Project your device screen, open the Cue app, and create a new program in the Code with Block & JavaScript section.
2. Say, “A human can experience different sensations; for example, you experience a stove as hot, or a sound as loud. Different senses are activated for each event you experience. In Block & JavaScript, events can be either obstacles, buttons, or sounds.”
3. Show students the various blocks under the Events menu.
Drag out a When block from the Events menu. Say, “A When block is not connected to the Start block. The code is constantly checking for the event specified in the block. When the event happens, it interrupts all other processes.”
Discuss how an event can influence Cue’s actions. For example, Cue can say thank you when it hears applause.
4. Select student volunteers to create a program using using Events with three to four blocks.
Run the program.
5. [Optional] Convert the program the students just created to JavaScript and go through the code with the students.

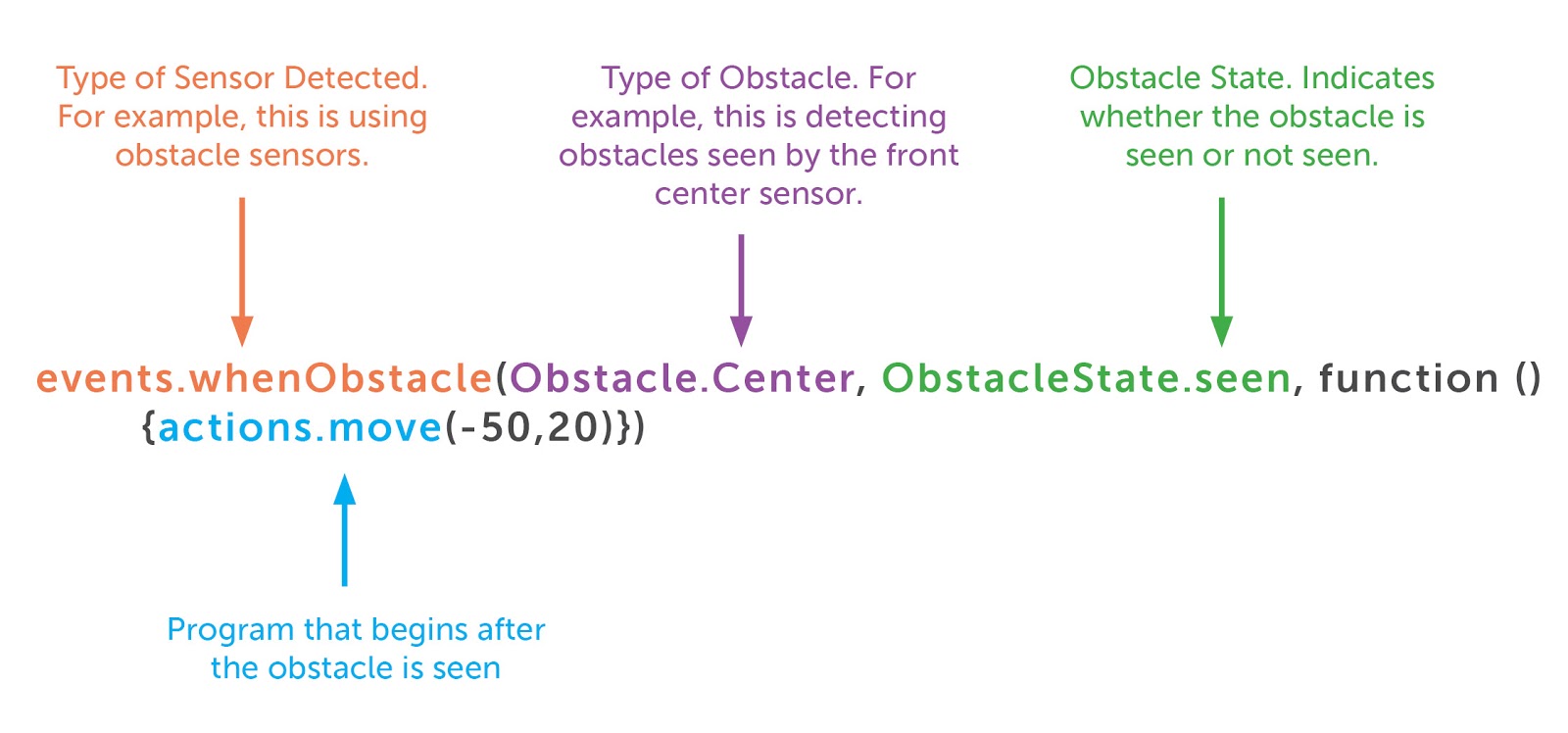

Project the following image and explain the structure of an event to the students.
Start a new line in the code and type “events.” A list of menu options will appear. Select an input type and press return.
Select student volunteers to try rewriting the above code using the autocomplete option to find “Obstacle.Center” and “ObstacleState.seen.”
6. [Optional] Lead a discussion about objects and methods in JavaScript.
Objects, like Events, are variables that have many properties.
These properties can be accessed, such as with Obstacle.Center. The obstacle object has different properties and Centeris one of them.
Methods are actions that can be performed on objects, such as with events.whenObstacle().
What are the different type of events that Cue can detect? (Sample response: “Cue can detect obstacles, sounds, and when a button is pressed.”)
[Optional] How can I use JavaScript to detect a different type of event? (Sample response: “You can change the method of the event object. For example, events.whenButton() will detect button presses.”)
Have students work on the following activities in small groups (ideally 2 students per robot). Provide each group with a device and a robot.
Encourage students to share device and robot time. Have them establish and rotate through roles such as:
Lead Programmer: Holds the device and manipulates the code.
Robot Wrangler: Retrieves and resets the robot after every program attempt.
When students work together while coding, they’re able to help each other identify mistakes and develop creative solutions!
1. Have students complete the following Challenges/Adventures in the Code with Block & JavaScript section:
Sense (blocks)
[Optional] Sense (text) → (coming soon)
2. After they complete the Challenges/Adventures, encourage students to try out the unlocked demos. Have them personalize one of the programs by changing its conditions.
3. After they finish personalizing one of the programs, have students:
Take a screenshot of their code.
Take a video of the Cue robot while the code is running.
1. Have student groups take turns sharing one of their programs with the class. Encourage them to:
Explain what the initial plan was for their robot’s actions. They should indicate what they intended their robot to do, as well as the events they incorporated into their program. (E.g., “We wanted our robot to follow the wall on its right. If it was too far from the wall, we had it move closer.”)
Share any obstacles and difficulties they overcame during the activity. (E.g., “Sometimes an event would not be detected. For example, when the class was really loud, so Cue didn’t hear our clapping. However, it worked better when we moved to the hallway.”)
2. Encourage students to ask each other what events were the most interesting and how combination events could produce complex behaviors. Possible questions/feedback includes:
“Why did you (combine detecting obstacles from the left and the right)?”
“I like how you (had your robot model human behaviors).”
“What if you (removed that when block to make sure the other events are detected more often)?
Does the Events menu give you tools that would assist in your creative writing project? (Sample response: “Yes. Now I can use obstacles to make sure Cue doesn’t run into walls while dancing.”)
Use our Evaluation Rubrics to review students’ work and presentations.
